Test M: The Navigation System Module Does Not Respond To The Diagnostic Tool

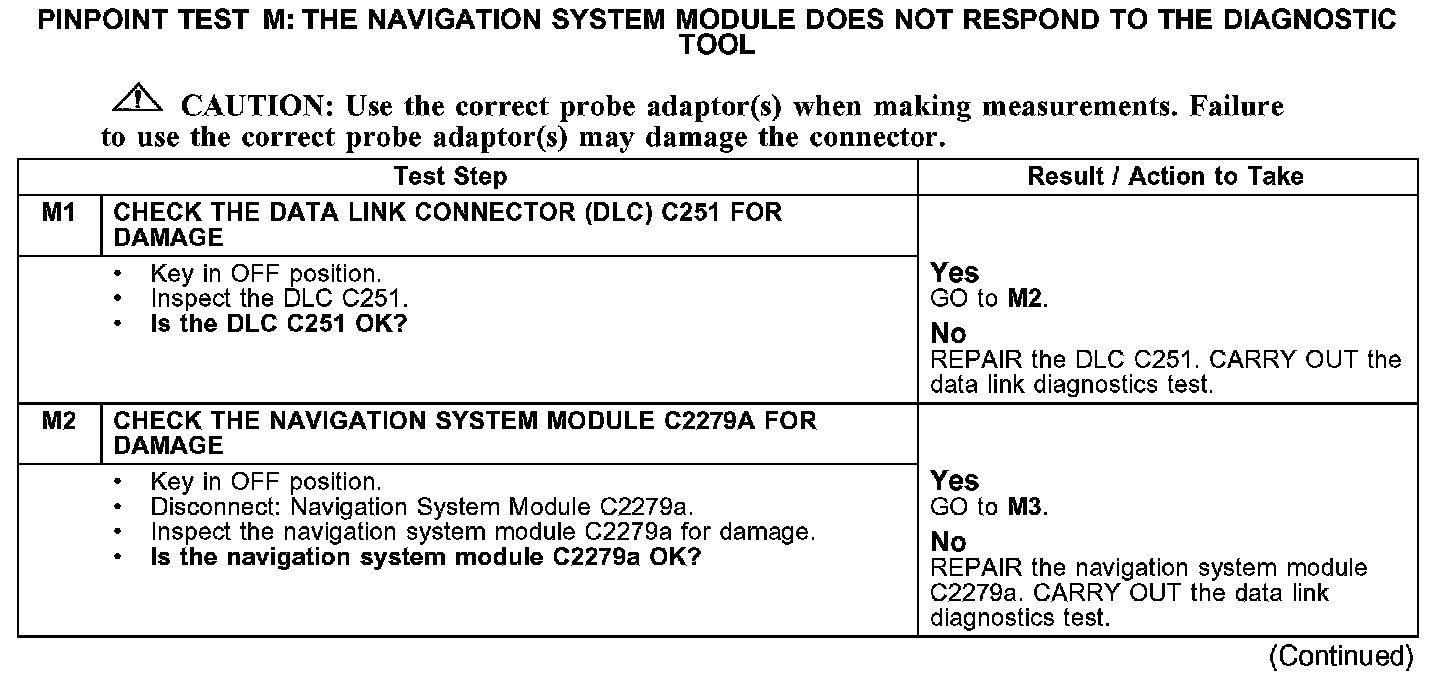

PINPOINT TEST M: THE NAVIGATION SYSTEM MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOLM1-M2:

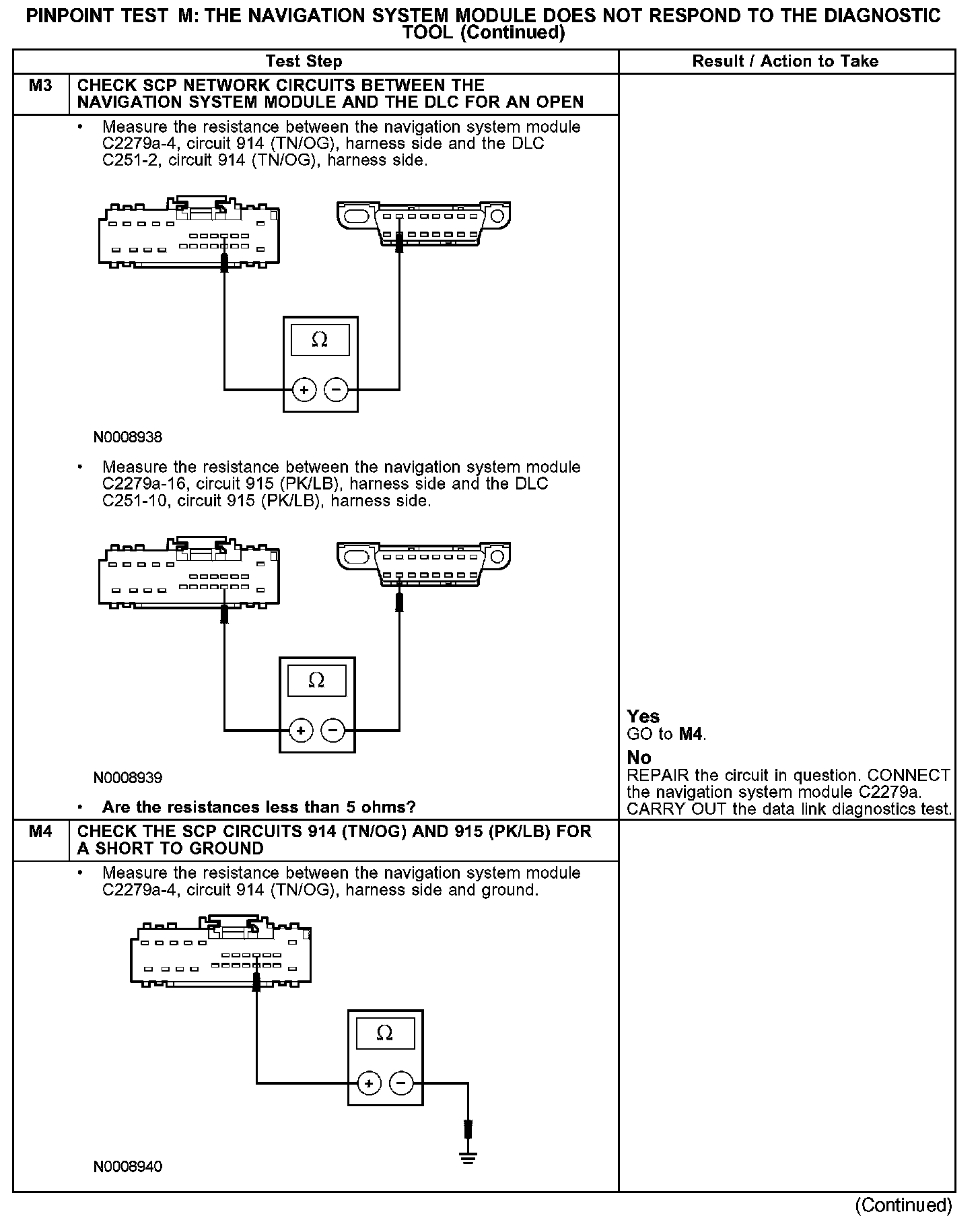

M3-M4:

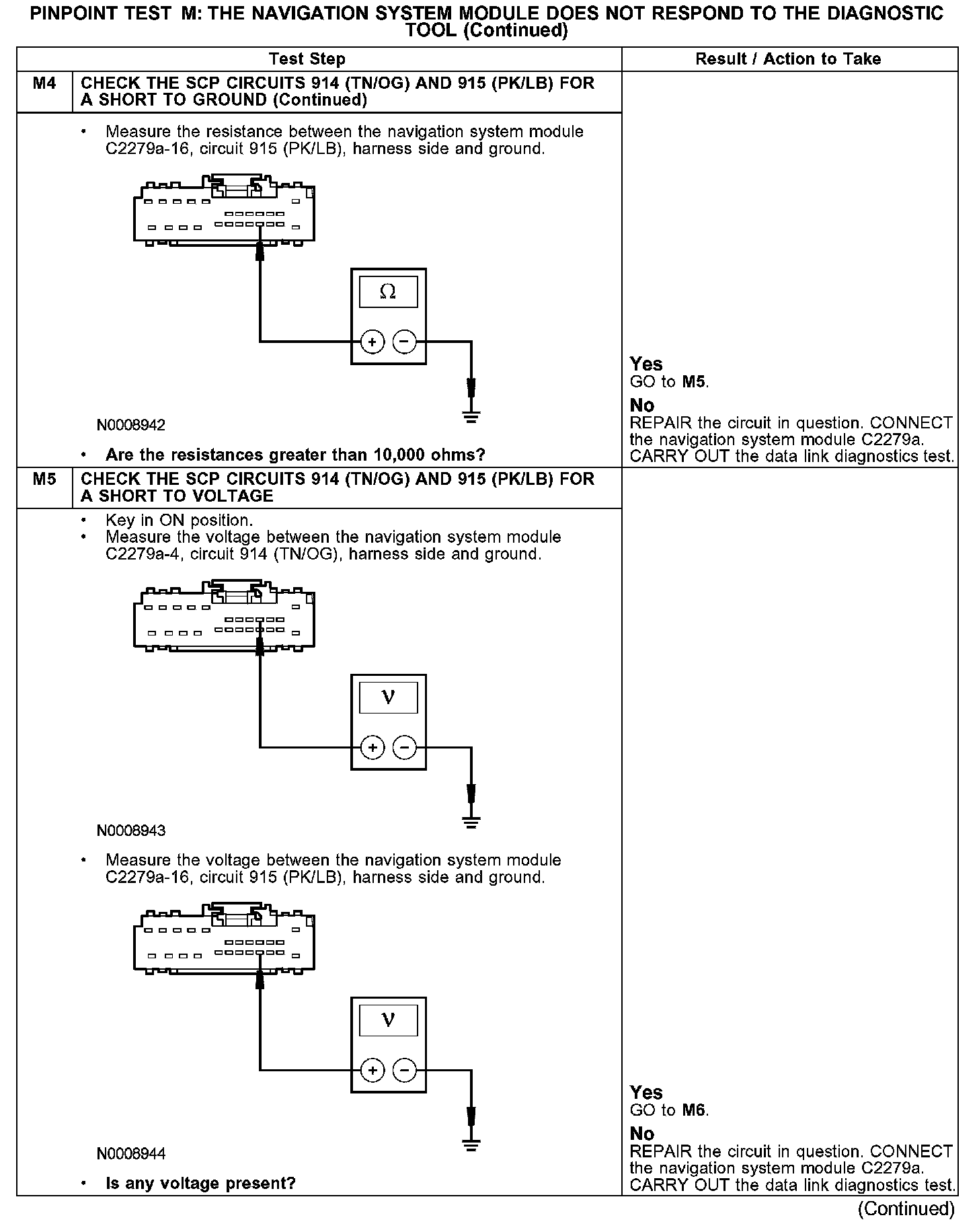

M4-M5:

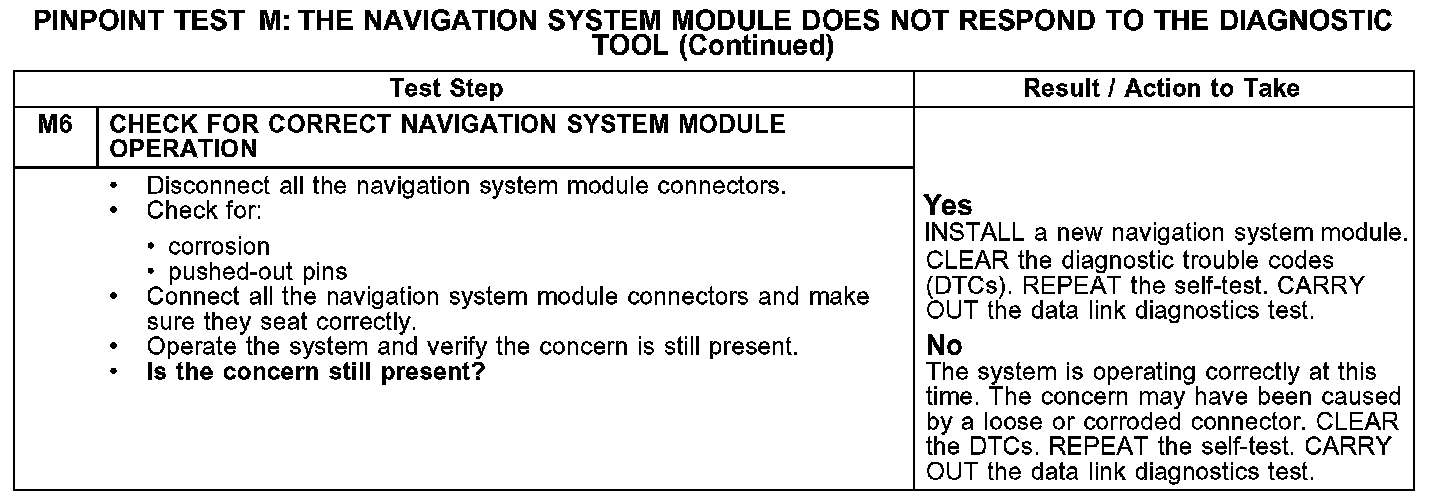

M6:
Normal Operation
The navigation system module communicates with the diagnostic tool through the standard corporate protocol (SCP) communication network, circuits 914 (TN/OG) and 915 (PK/LB). Check circuits 914 (TN/OG) and 915 (PK/LB) between the navigation system module C2279a and the data link connector (DLC) C251. The total resistance values must not be more than 5 ohms. If the resistance is more than 5 ohms there is an open in one of the SCP communications circuits, damage to the DLC C251, damage to the navigation system module C2279a, or a problem in an in-line connector.
Possible Causes
- SCP communication network, circuits 914 (TN/OG) open
- SCP communication network, circuits 915 (PK/LB) open
- navigation system module
- navigation system module C2279a
