Catalyst Monitor Sensor

CATALYST MONITOR SENSOR

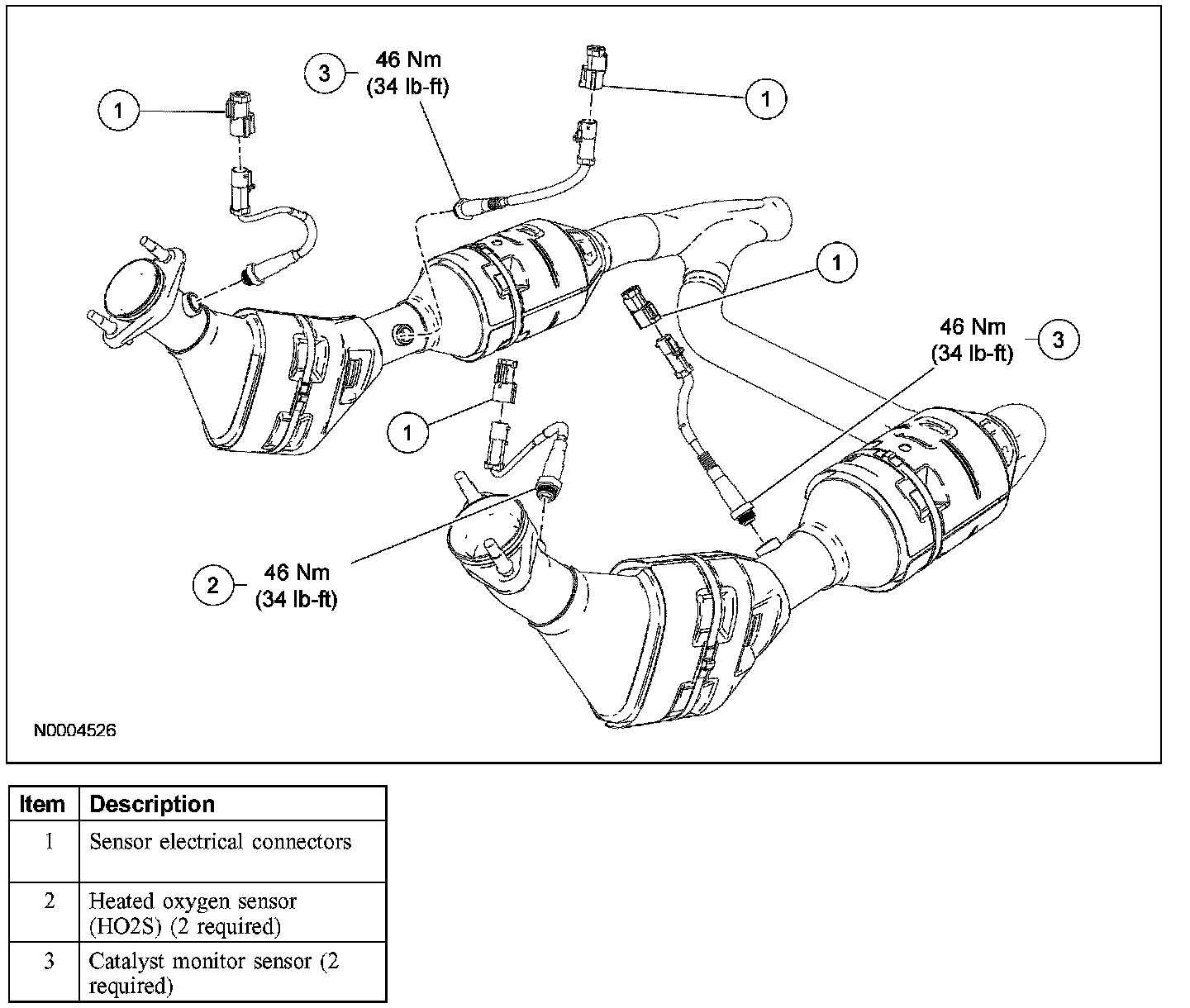

Exploded View

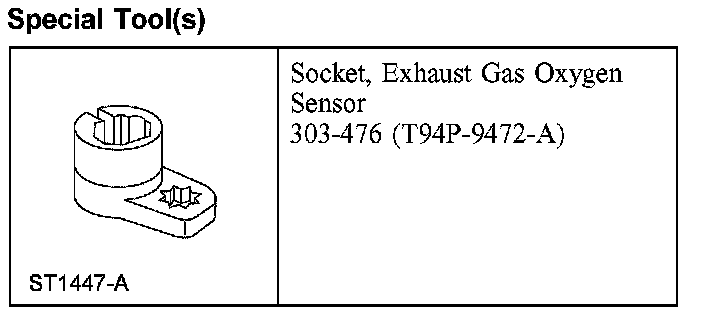

Special Tool(s):

Special Tool(s)

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the catalyst monitor sensor electrical connector.

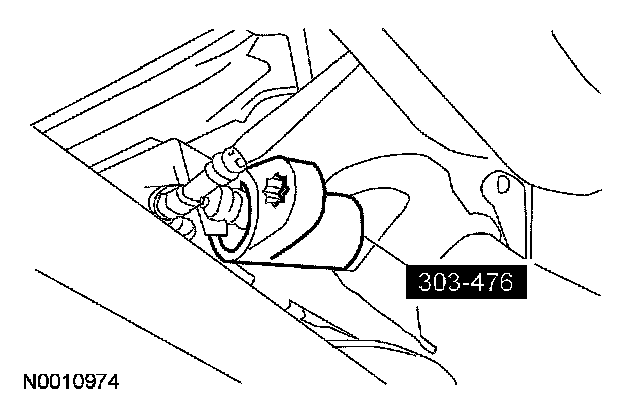

3. Using the special tool, remove the catalyst monitor sensor.
- To install, tighten to 46 Nm (34 lb-ft).

4. To install, reverse the removal procedure.
