Transmission Position Sensor/Switch: Locations

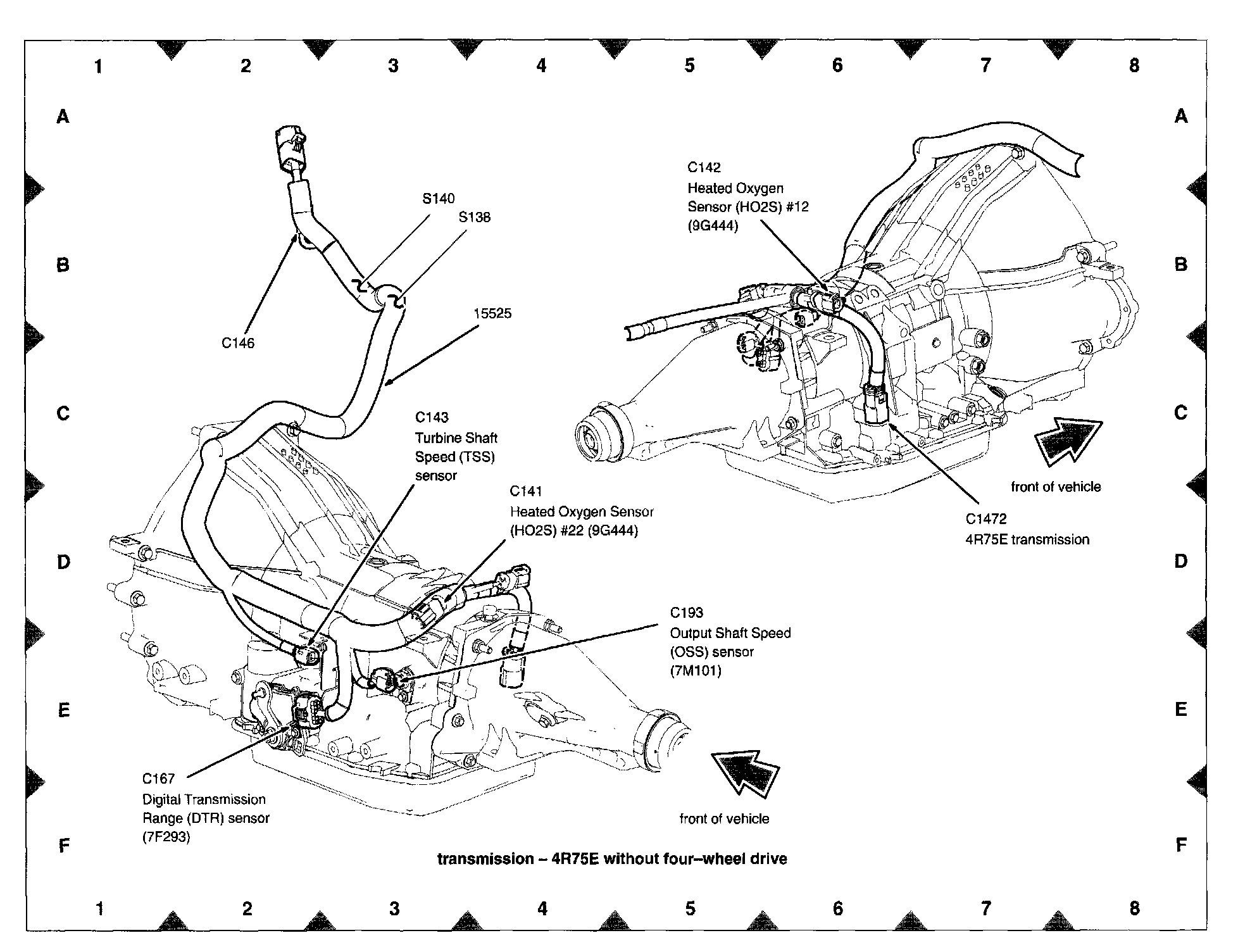

View 151-6 (Transmission - 4R75E Without Four-wheel Drive):
