Seat Control Switch - Third Row

SEAT CONTROL SWITCH - THIRD ROW







Removal and Installation

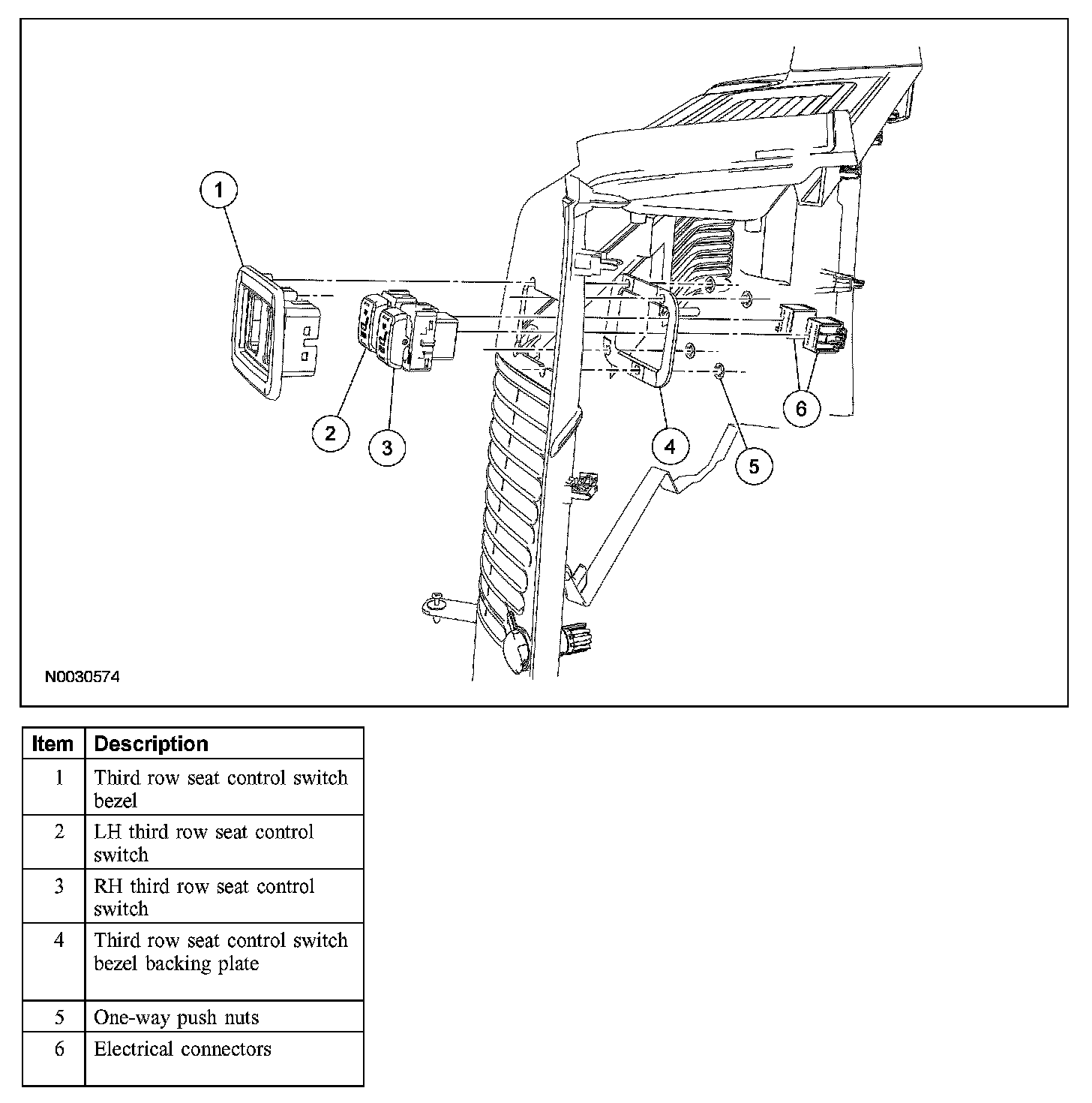

1. Partially remove the RH quarter trim panel for access to the third row power seat switch(es.).
2. Remove the one-way push nuts on the back side of the power seat switch bezel.
3. Disconnect the RH and LH third row seat control switch electrical connectors.

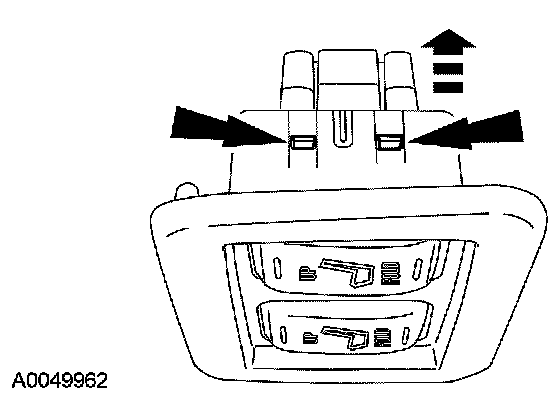

4. Release the 4 locking tabs (2 shown) on the affected switch, and remove the switch.
5. To install, reverse the removal procedure.
