Battery Tray

BATTERY TRAY

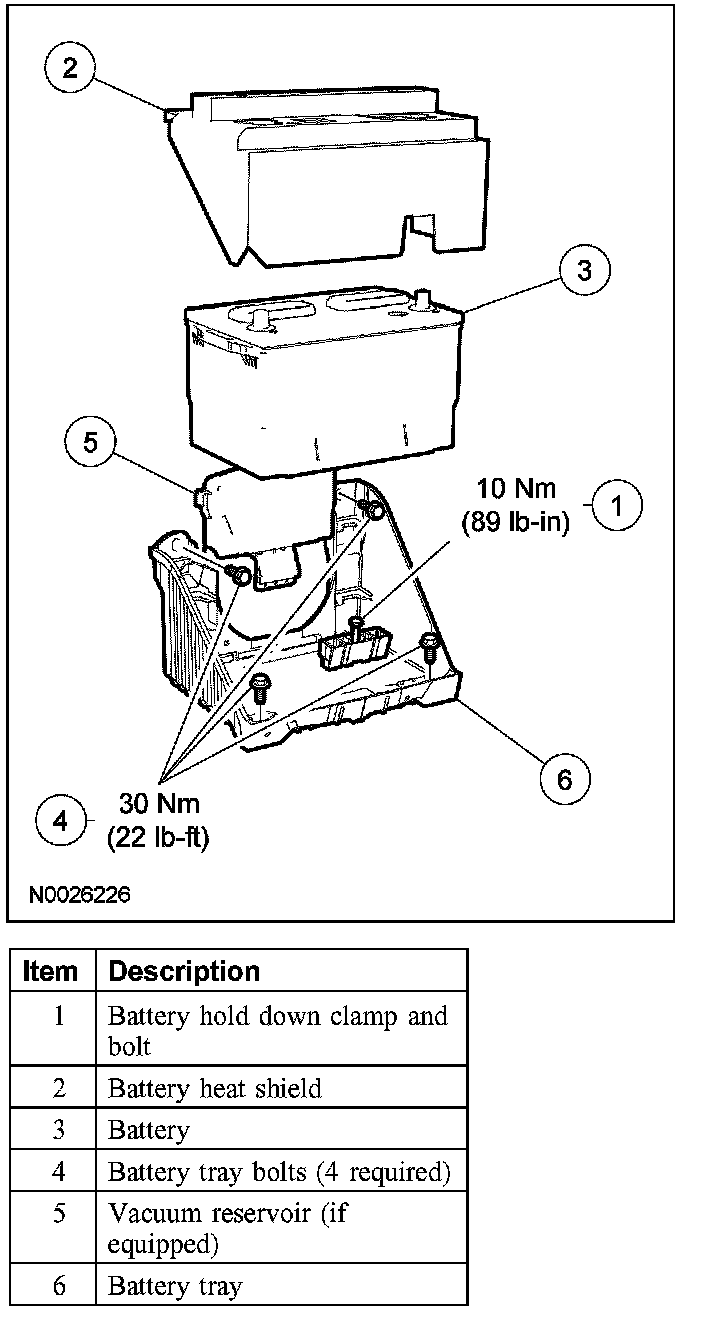

Exploded View

Removal and Installation
1. Remove the battery.
2. Disconnect the wiring harness locators from the battery tray.
3. Remove the bolts and position the battery tray aside.
- Disconnect the vacuum reservoir (if equipped) and remove the battery tray.
- To install, tighten to 30 Nm (22 lb-ft).

4. To install, reverse the removal procedure.
