Test C: The Transmission Control (TC) Switch Is Inoperative
Test C: The Transmission Control (TC) Switch Is Inoperative
PINPOINT TEST C: THE TRANSMISSION CONTROL (TC) SWITCH IS INOPERATIVE

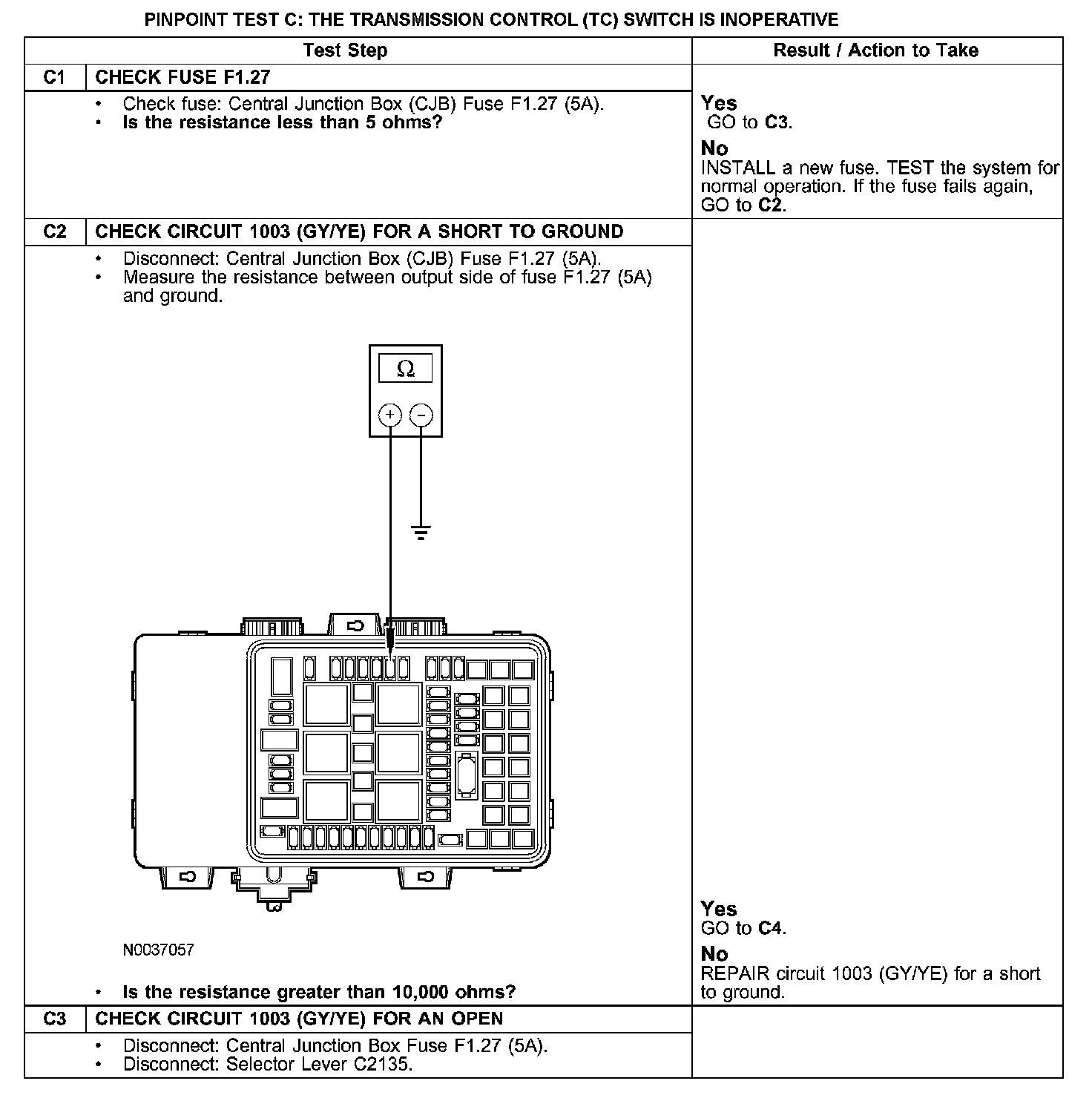

C1-C3:

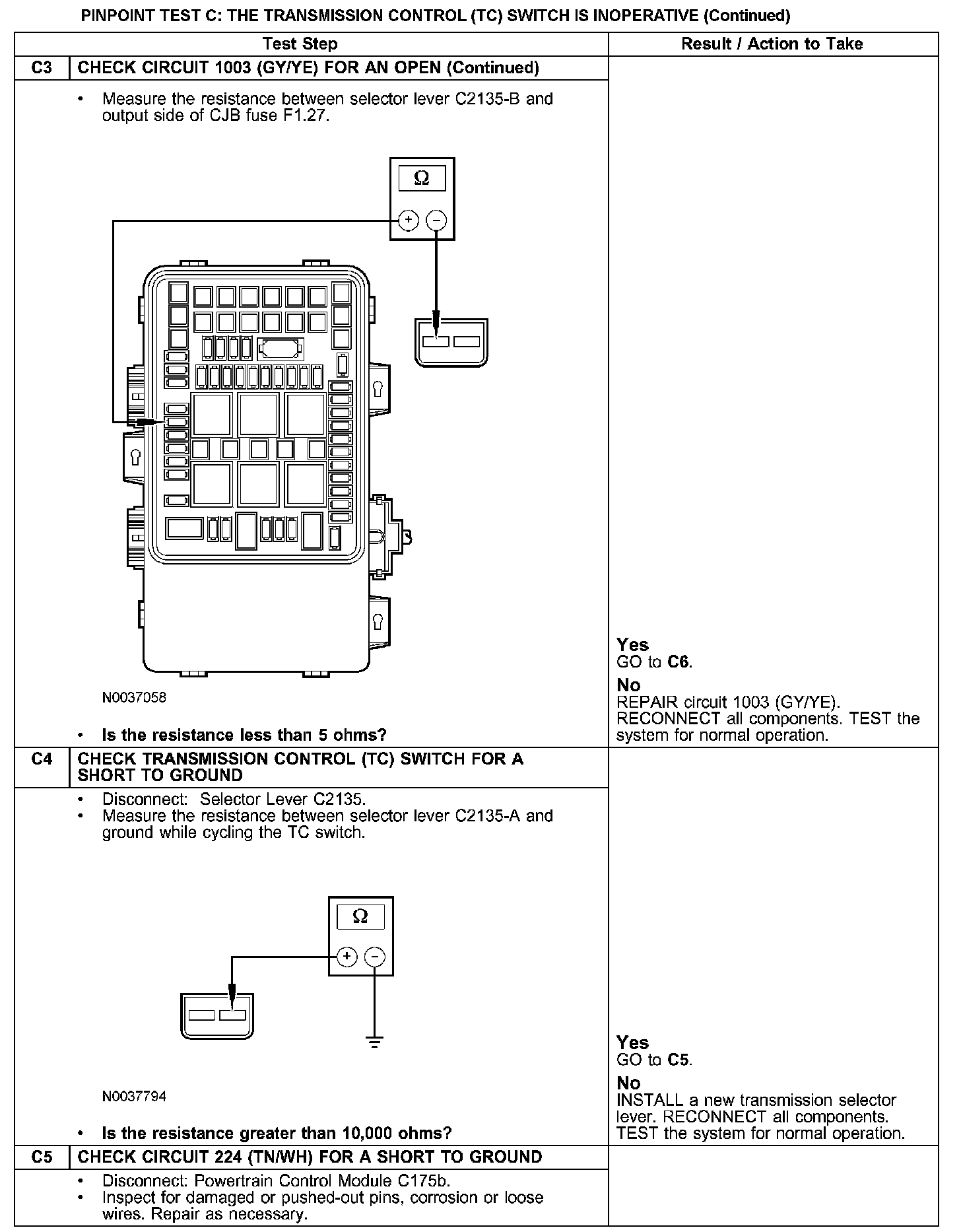

C3-C5:

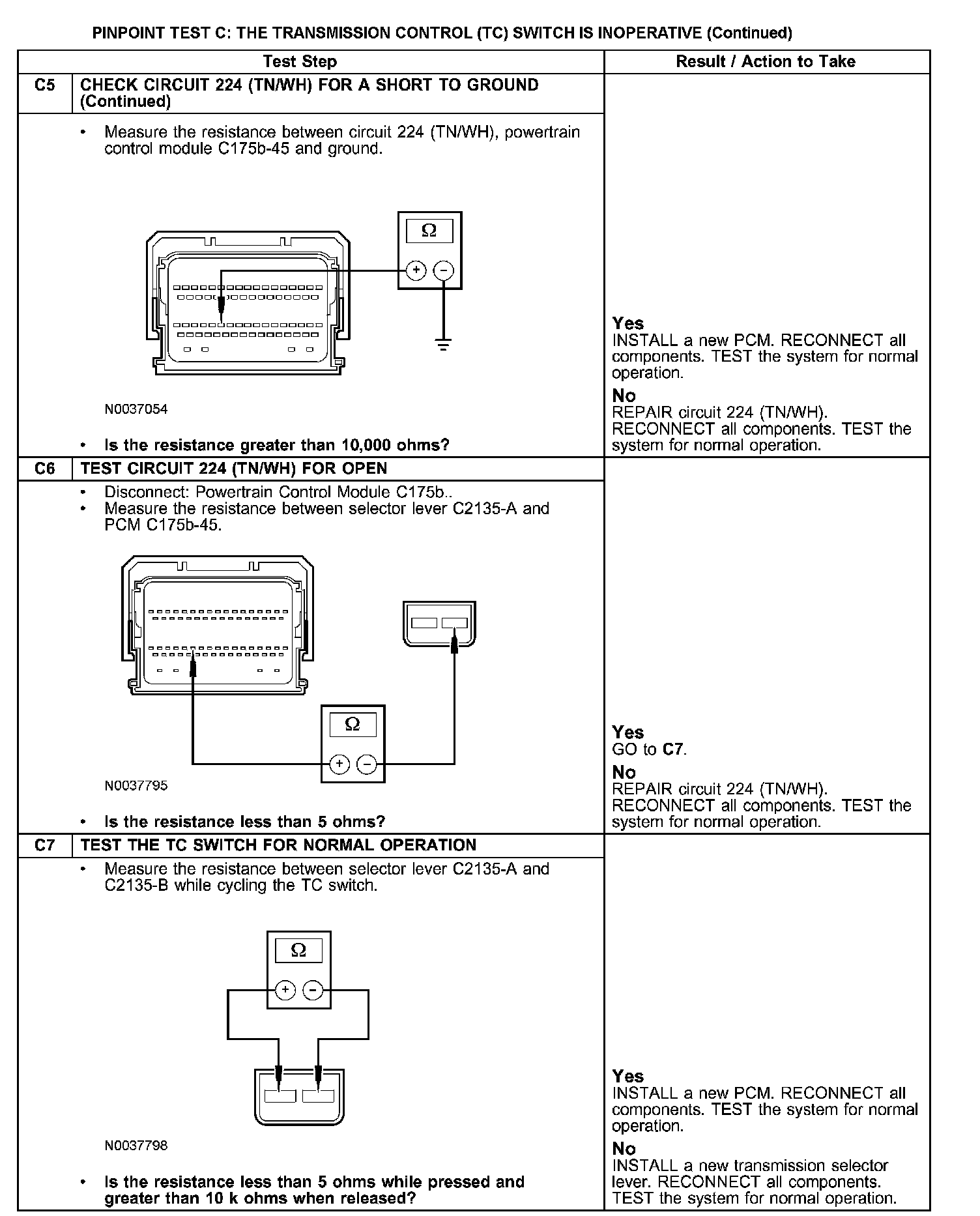

C5-C7:
