Flex Plate: Service and Repair

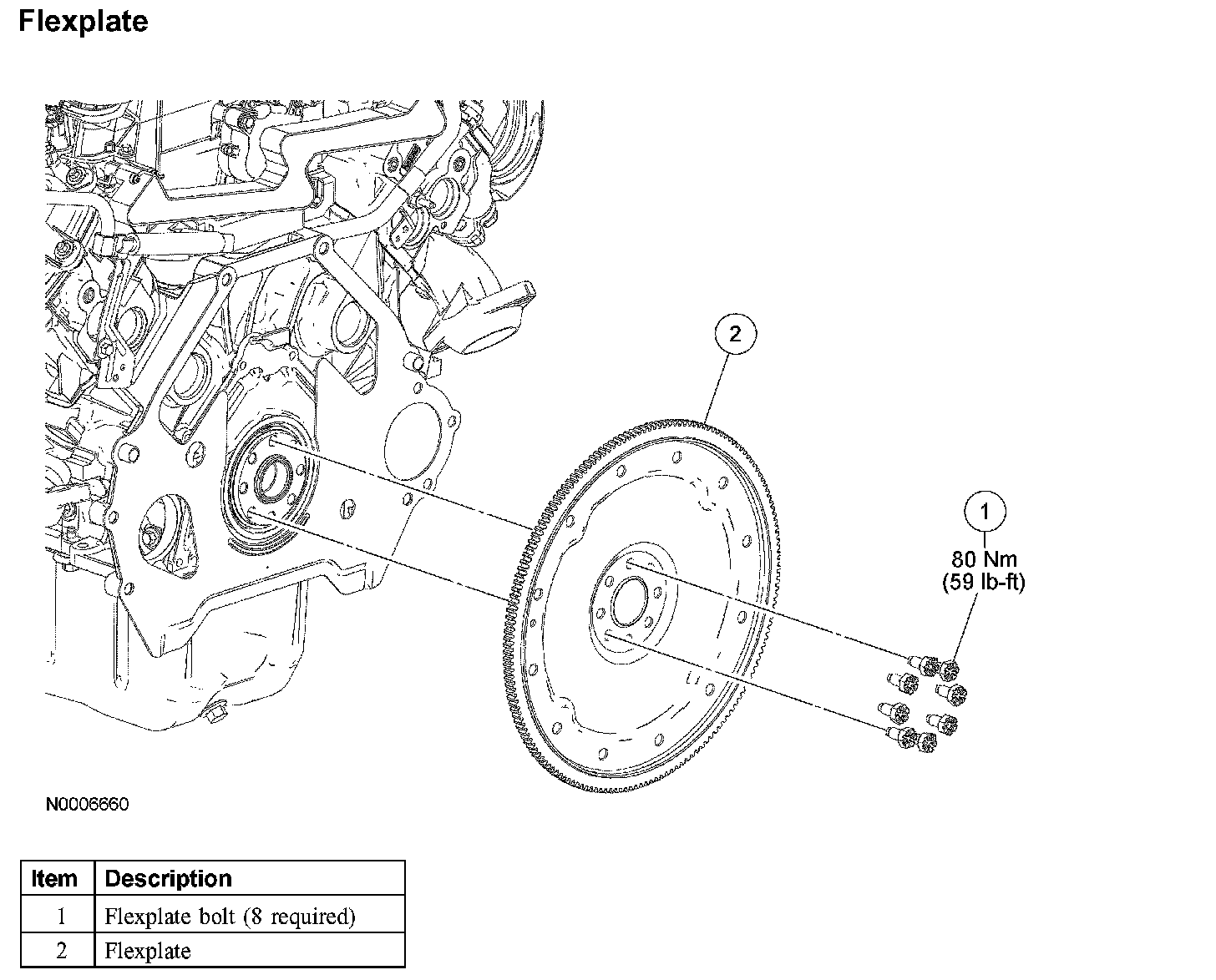

Flexplate





Removal and Installation
1. Remove the transmission.





2. Remove the 8 bolts and the flexplate.
^ To install, tighten to 80 Nm (59 ft. lbs.) in the sequence shown.
3. To install, reverse the removal procedure.
