Test E: The RF Power Window Is Inoperative

PINPOINT TEST E: THE RF POWER WINDOW IS INOPERATIVE

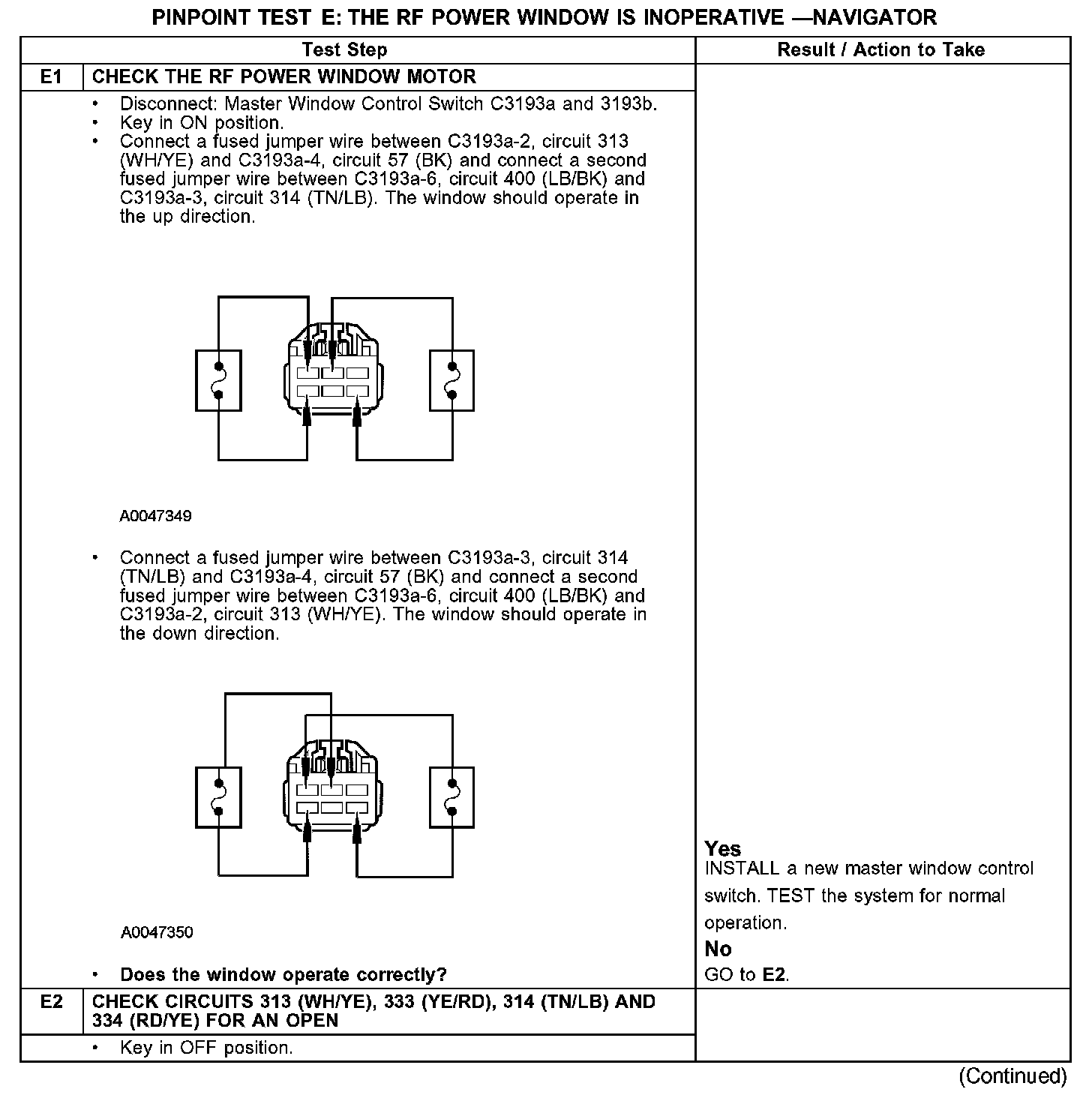

E1-E2:

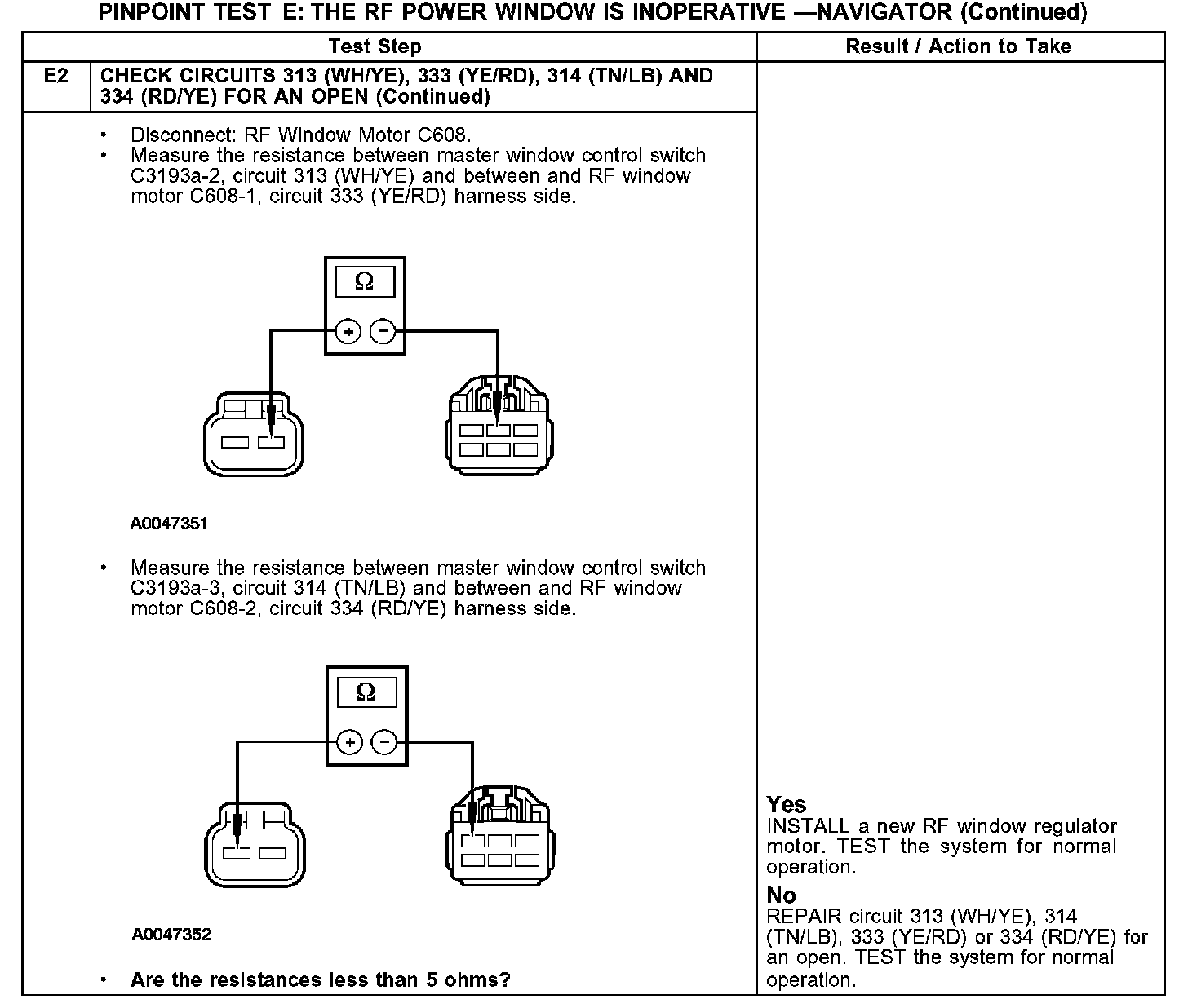

E2 Continued:

Normal Operation
Under normal operation, the master window control switch provides power to the passenger front window motor through circuit 314 (TN/LB) and ground through circuit 313 (WH/YE) to operate the passenger front window up, and power through circuit 313 (WH/YE) and ground through circuit 314 (TN/LB) to operate the passenger front window down.

Possible Causes
- Window control switch
- Open in circuit 313 (WH/YE), 333 (YE/RD), 314 (TN/LB) or 334 (RD/YE)
- Front door window regulator motor
