Front Door Window Glass: Service and Repair

FRONT DOOR WINDOW GLASS

Removal and Installation

All vehicles
1. Remove the front door trim panel.

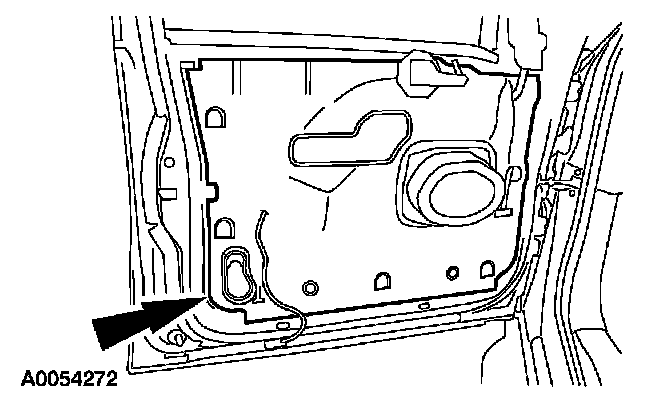

2. Remove the front door weathershield.

Expedition







3. NOTE: Driver side shown, passenger side similar.

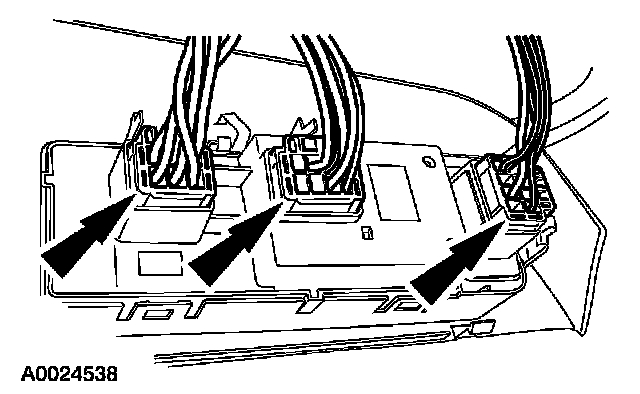

Connect the window control switch.

All vehicles
4. Lower the window glass to access the 2 window glass to regulator bolts.

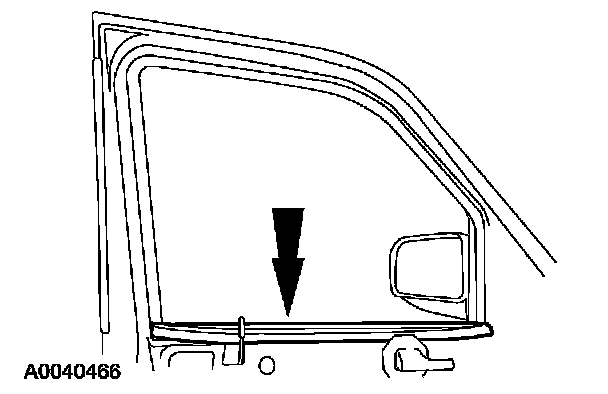

5. Remove the inside glass weatherstrip.

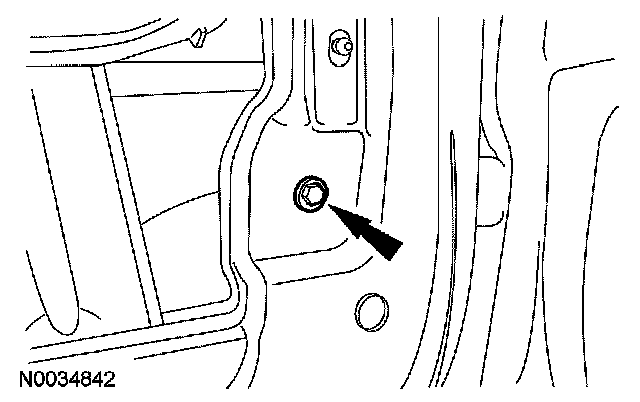

6. Remove the front door glass channel bolt and position aside the channel.
- To install, tighten to 11 Nm (8 lb-ft).

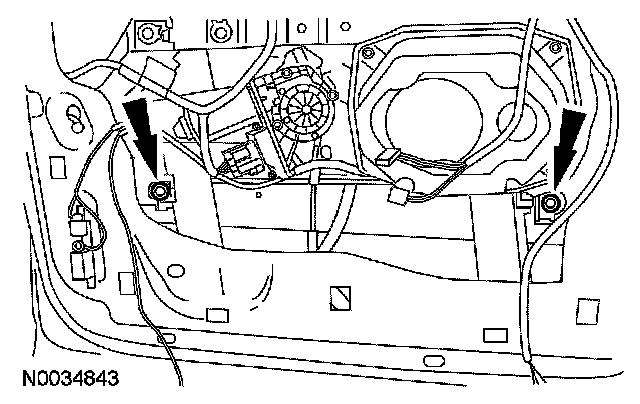

7. Remove the window glass-to-regulator bolts and front door window glass.
- To install, tighten to 11 Nm (8 lb-ft).

8. To install, reverse the removal procedure.
