Front Door Window Regulator: Service and Repair

WINDOW REGULATOR - FRONT DOOR






Removal and Installation

All vehicles
1. Remove the front door trim panel.

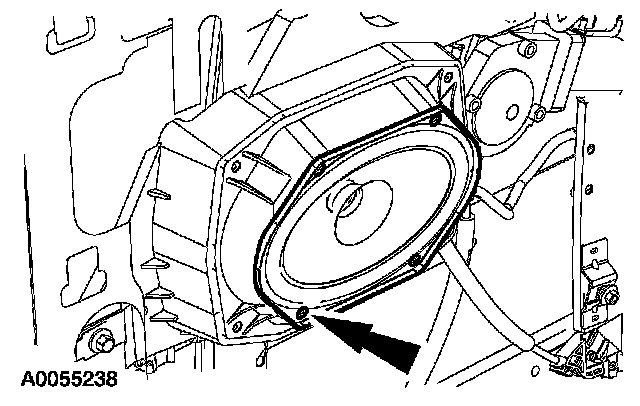

2. Remove the screws and the front door speaker.
- Disconnect the electrical connector.

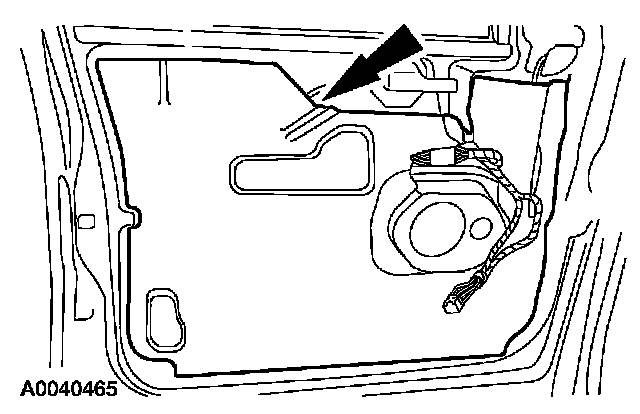

3. Remove the front door weathershield.

Expedition

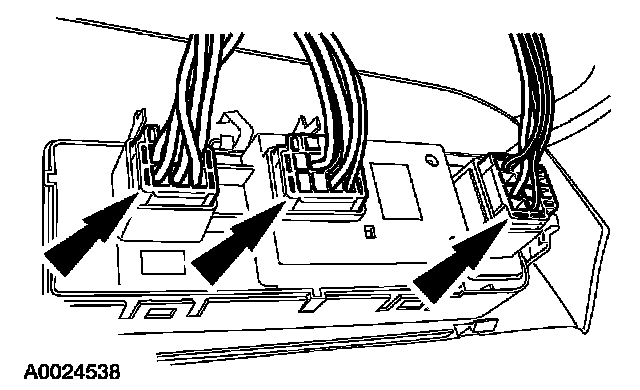

4. NOTE: Driver side shown, passenger side similar.

Connect the window control switch.

All vehicles

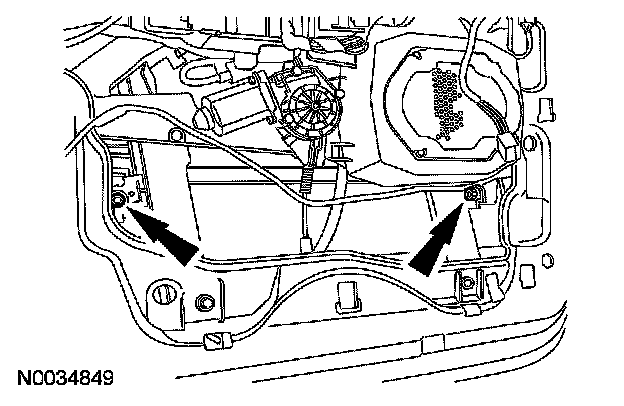

5. Lower the window glass to access the 2 window glass-to-regulator bolts.

Expedition

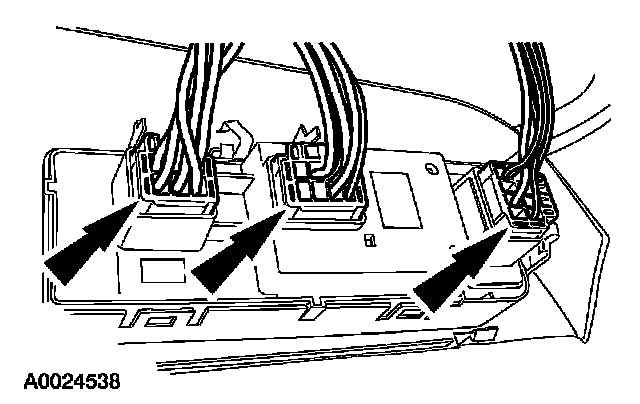

6. NOTE: Driver side shown, passenger side similar.

Disconnect the window control switch.

All vehicles






7. Remove the window glass-to-regulator bolts and front door window glass.
- To install, tighten to 11 Nm (8 lb-ft).

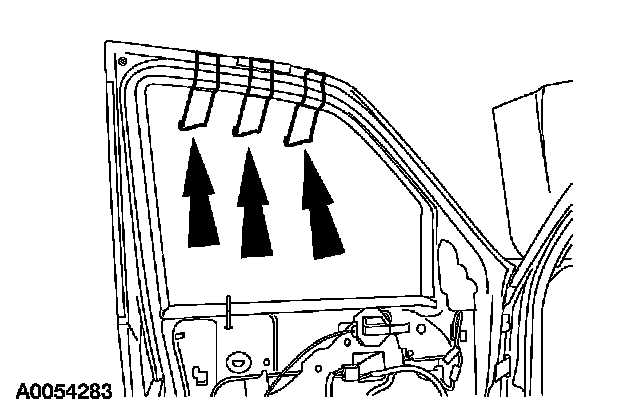

8. NOTE: Secure the front window glass in the full UP position.

Secure the front window glass with tape to the front door frame.

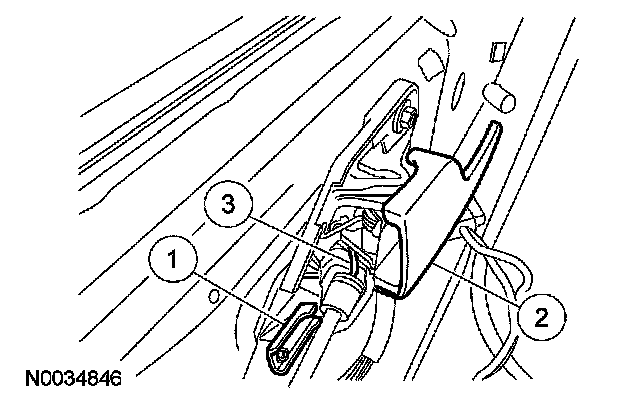

9. Position the interior door handle aside.
1 Remove the cable conduit fitting from the carrier assembly.
2 Lift upward on the interior door handle retaining bracket and pivot the interior door handle out of the bracket.
3 Remove the cable from the door handle.






10. Release the crash sensor harness pin-type retainers.

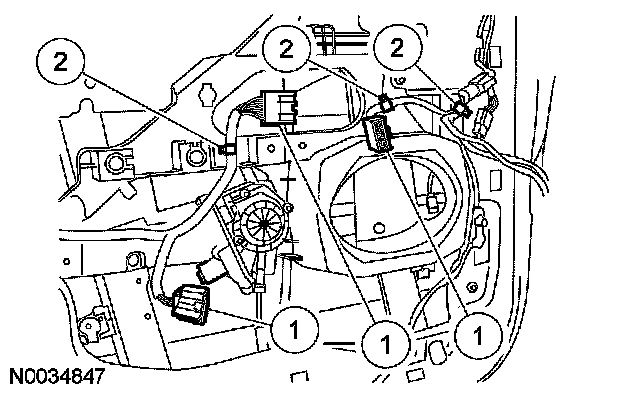

11. Position the front door window regulator harness aside.
1 Disconnect the electrical connectors.
2 Release the pin-type retainers.

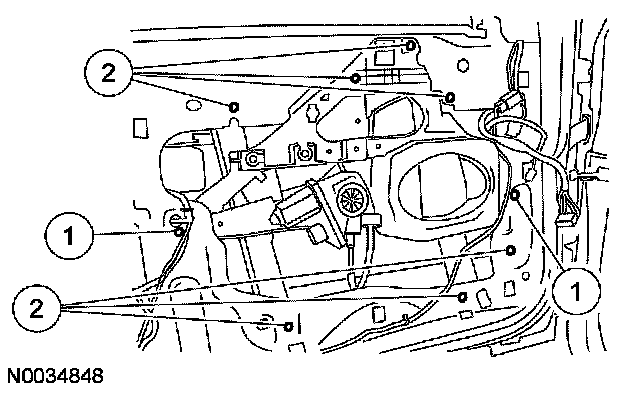

12. Remove the front window regulator.
1 Loosen the 2 hanger bolts.
2 Remove the front window regulator bolts and front top run channel bolt.
- To install, tighten to 11 Nm (8 lb-ft).

13. To install, reverse the removal procedure.
