Wiper and Washer Systems: Service and Repair

WIPER AND WASHER SYSTEM - EXPLODED VIEW

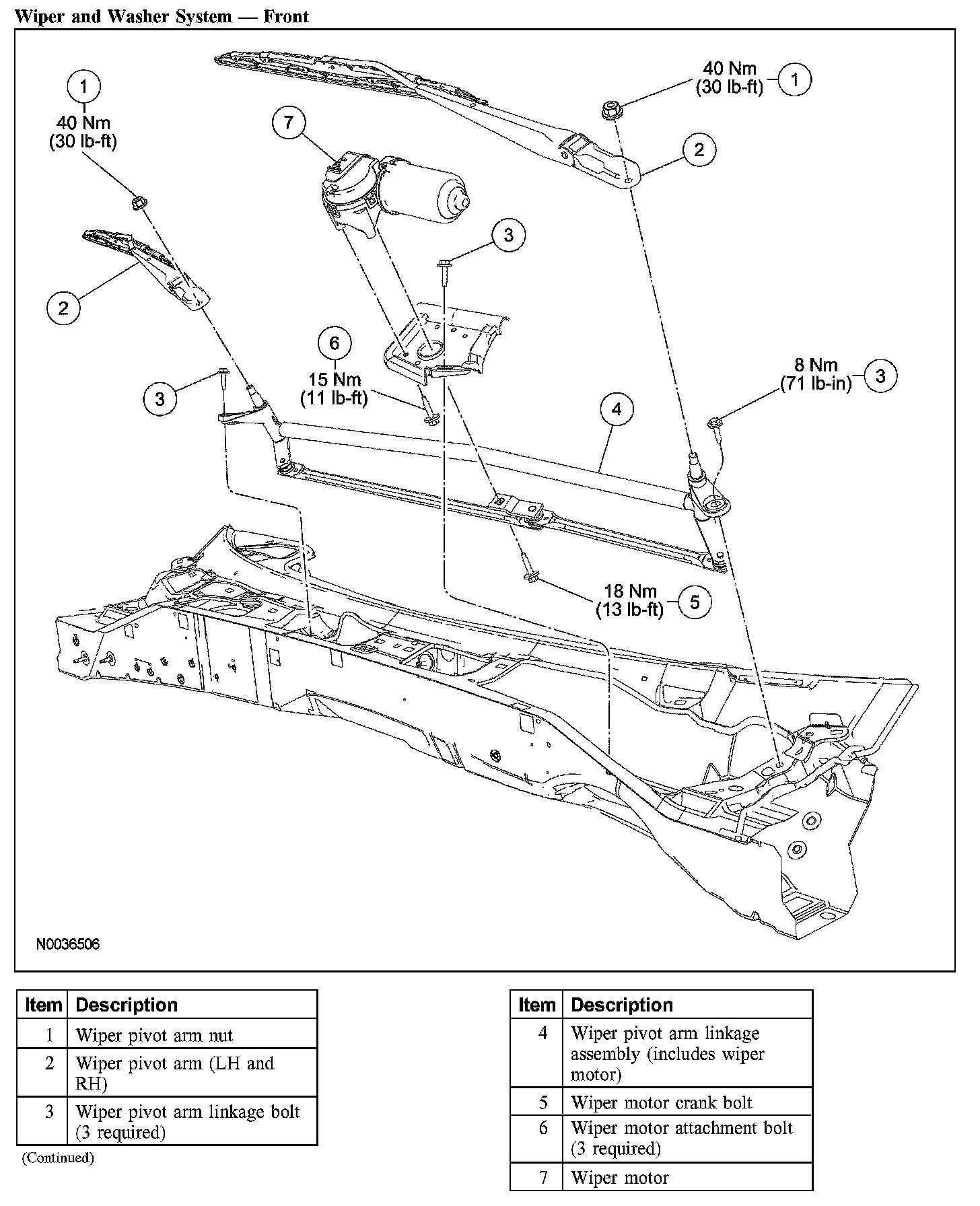

Wiper And Washer System - Front:

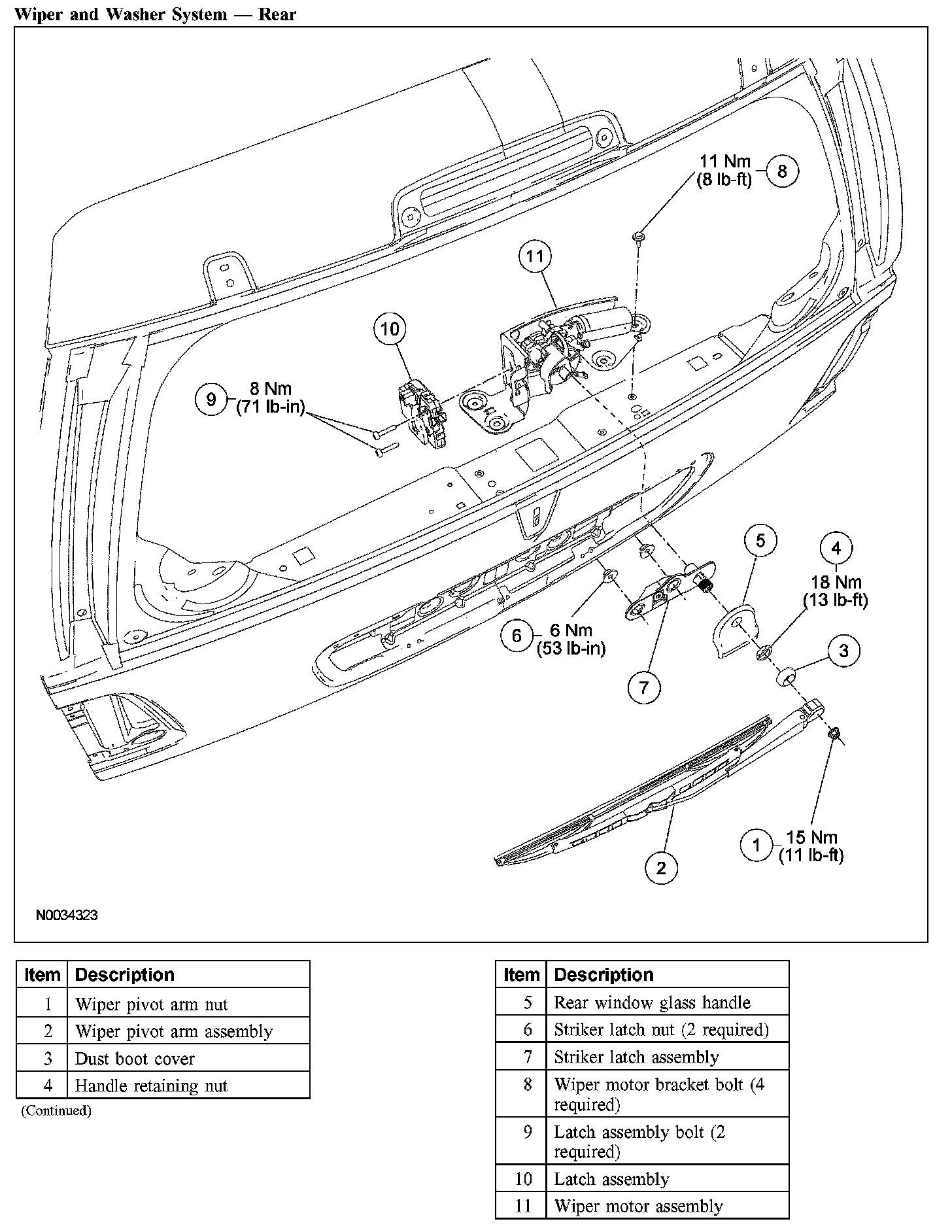

Wiper And Washer System - Rear:

Removal And Installation
1. For additional information, refer to the procedures.
