Windshield Washer Pump: Service and Repair

WINDSHIELD WASHER PUMP AND RESERVOIR

Removal and Installation

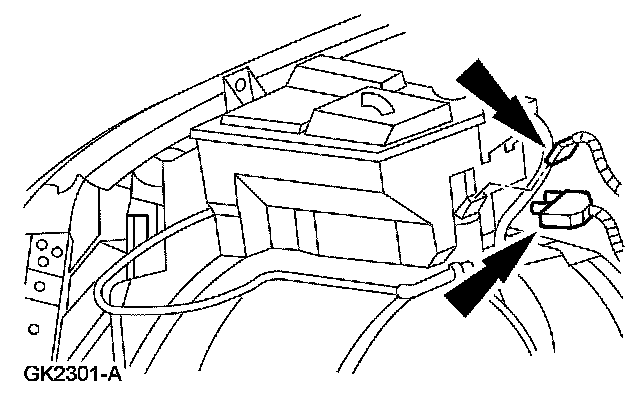

1. Disconnect the electrical connectors.

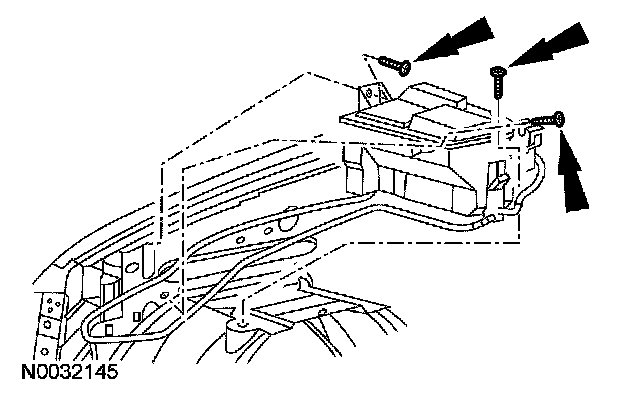

2. Remove the windshield washer reservoir screws.
- To install, tighten to 5 Nm (44 lb-in).

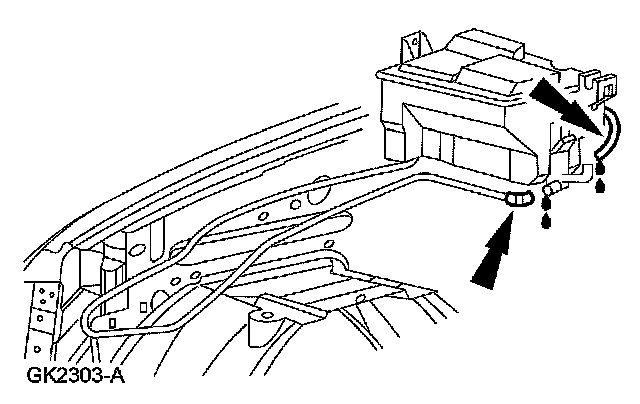

3. NOTE: Windshield washer fluid should be collected in a container after the windshield washer hoses are disconnected.

Disconnect the windshield washer hoses.

4. Remove the windshield washer reservoir.

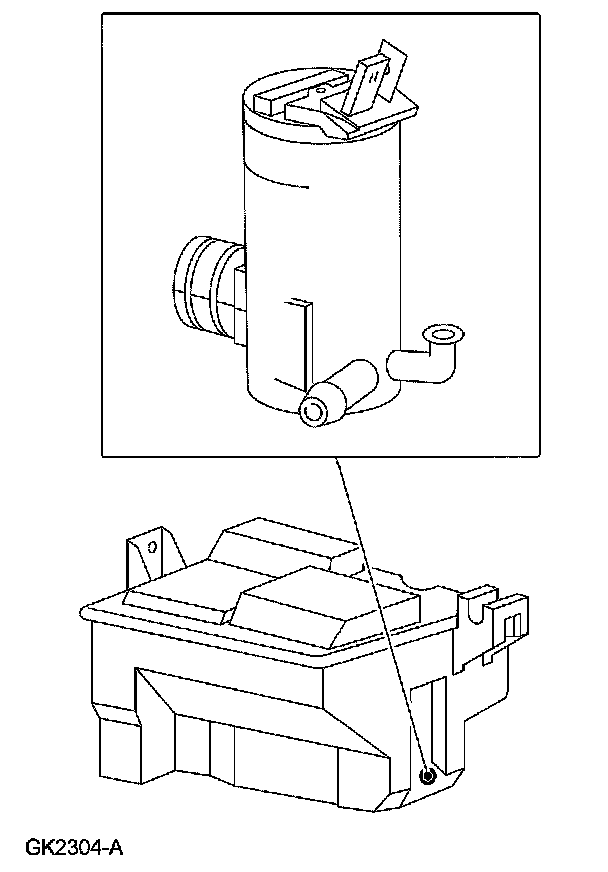

5. Remove the windshield washer pump if necessary.

6. CAUTION: Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

To install, reverse the removal procedure.
- Fill the windshield washer reservoir with windshield washer concentrate.
