Fuse Block

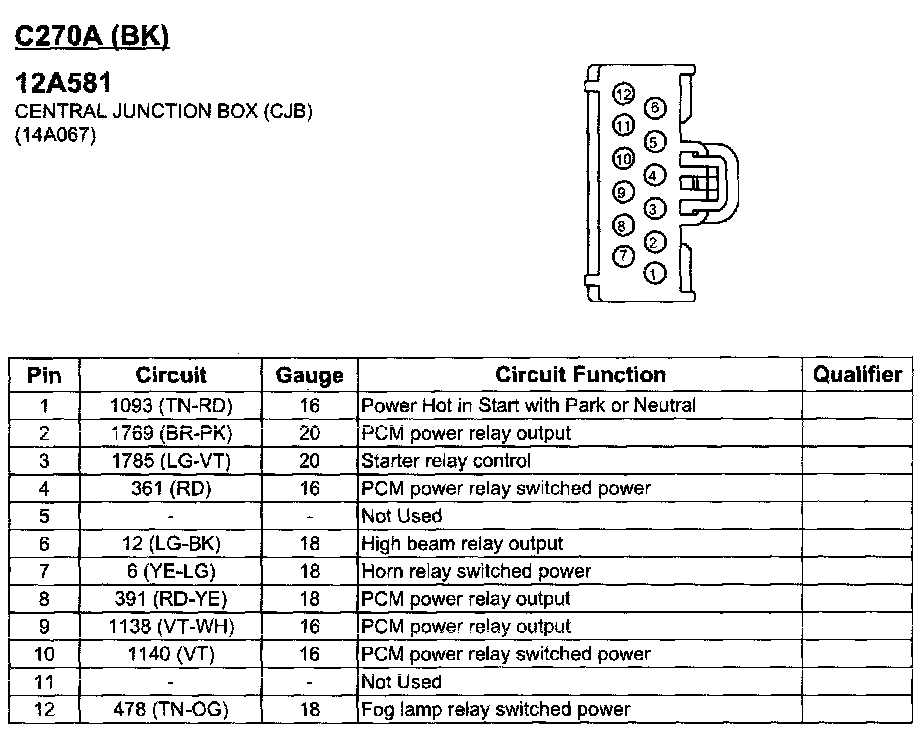

C270A:

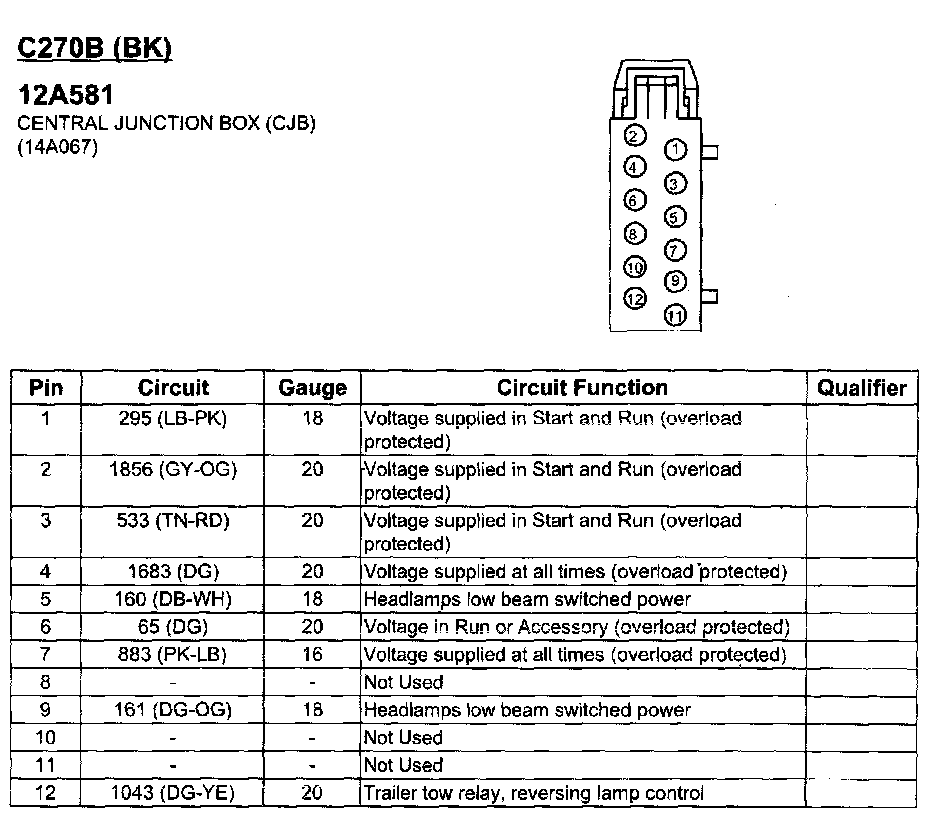

C270B:

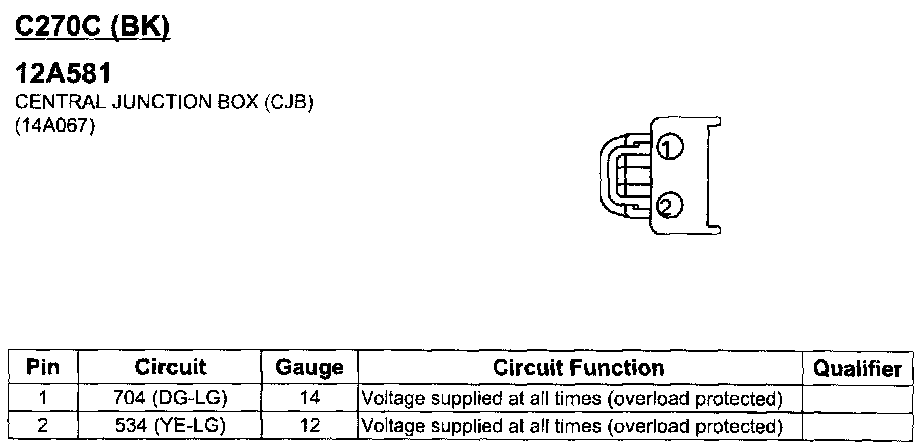

C270C:

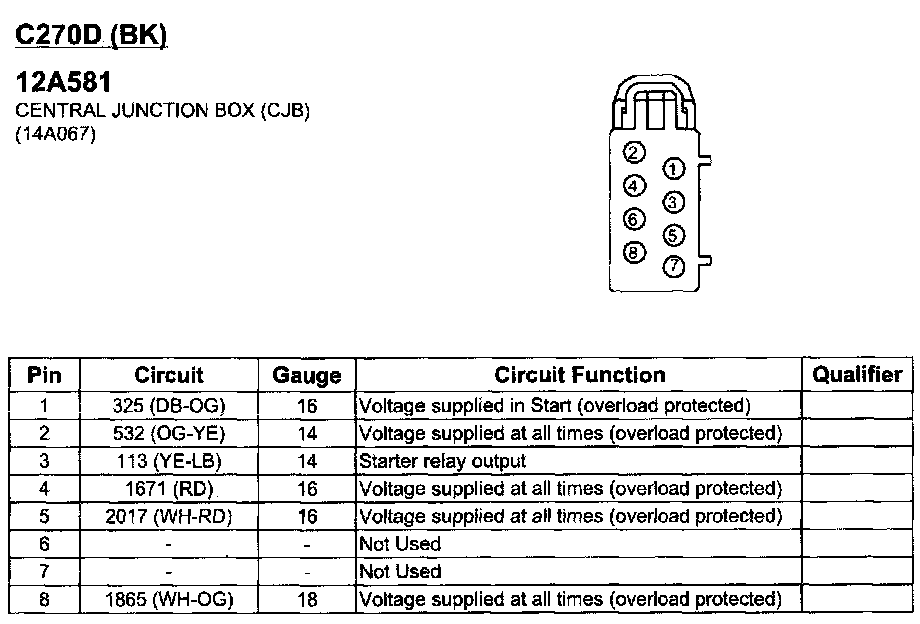

C270D:

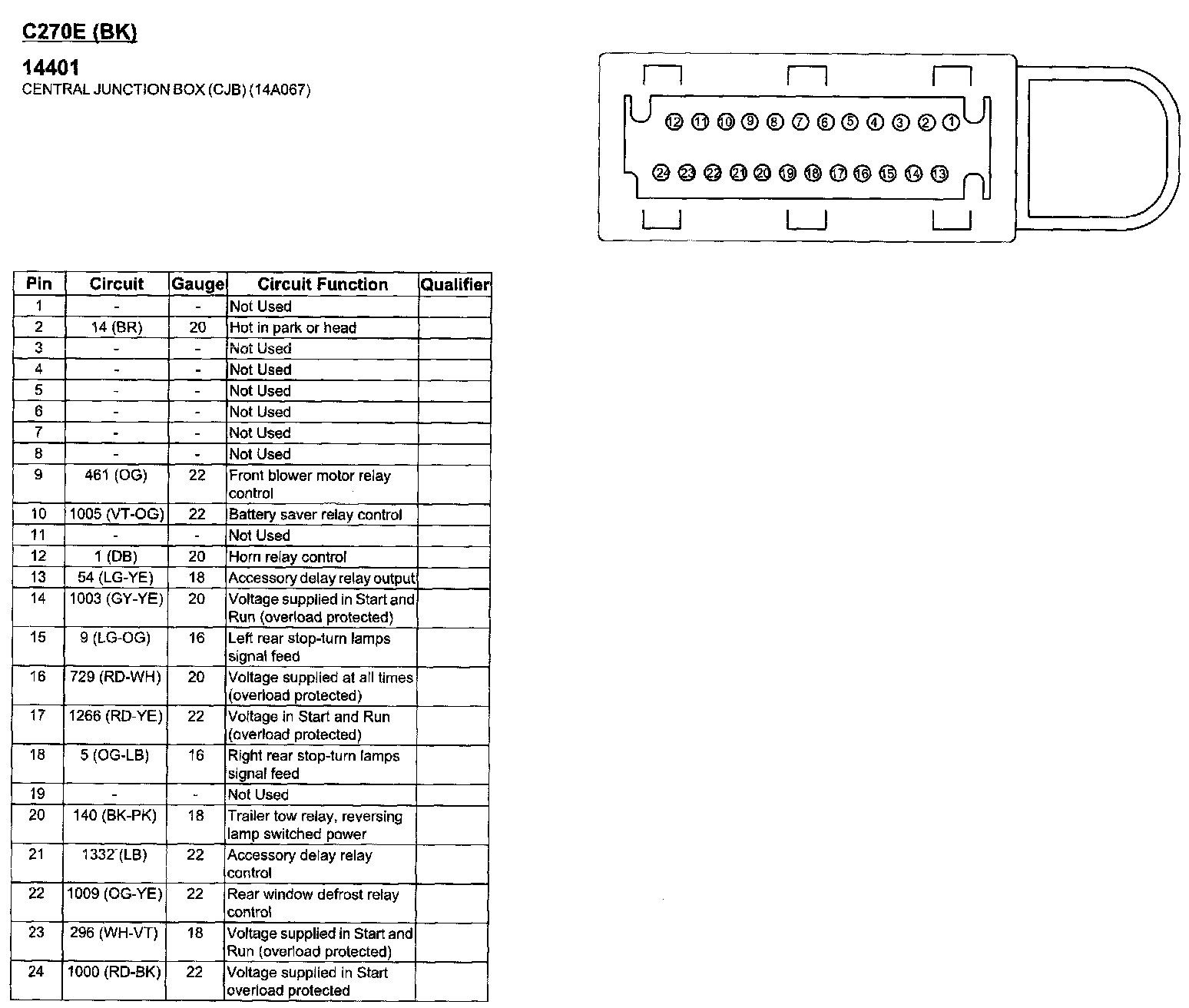

C270E:

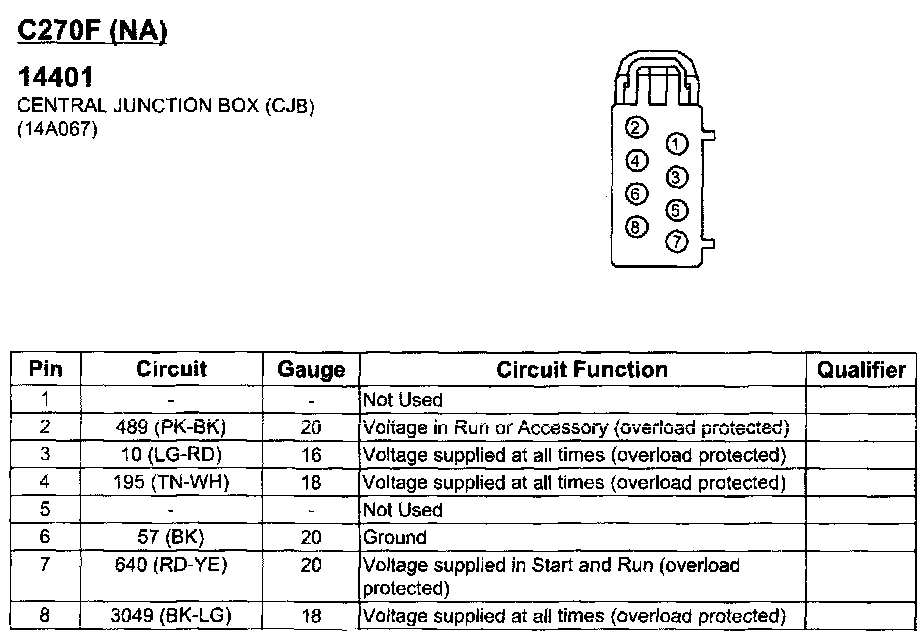

C270F:

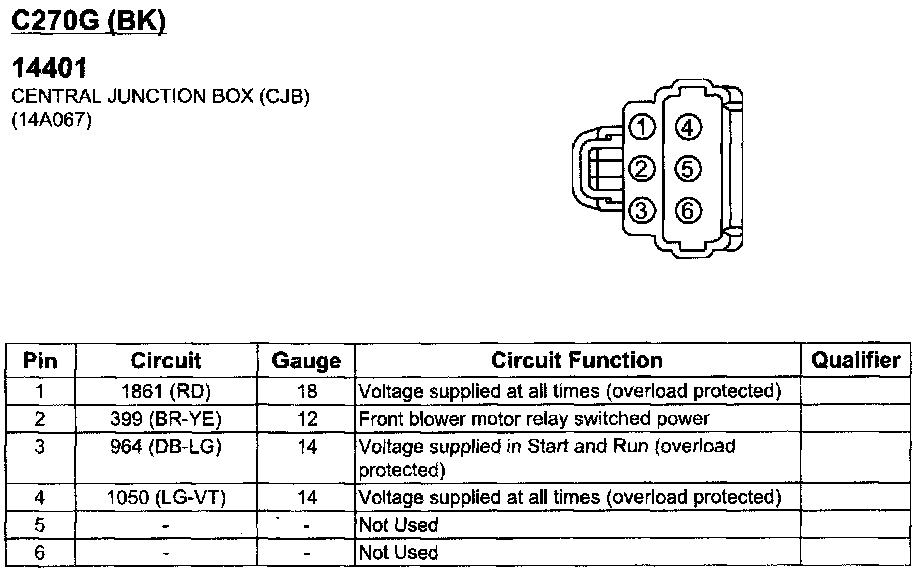

C270G:

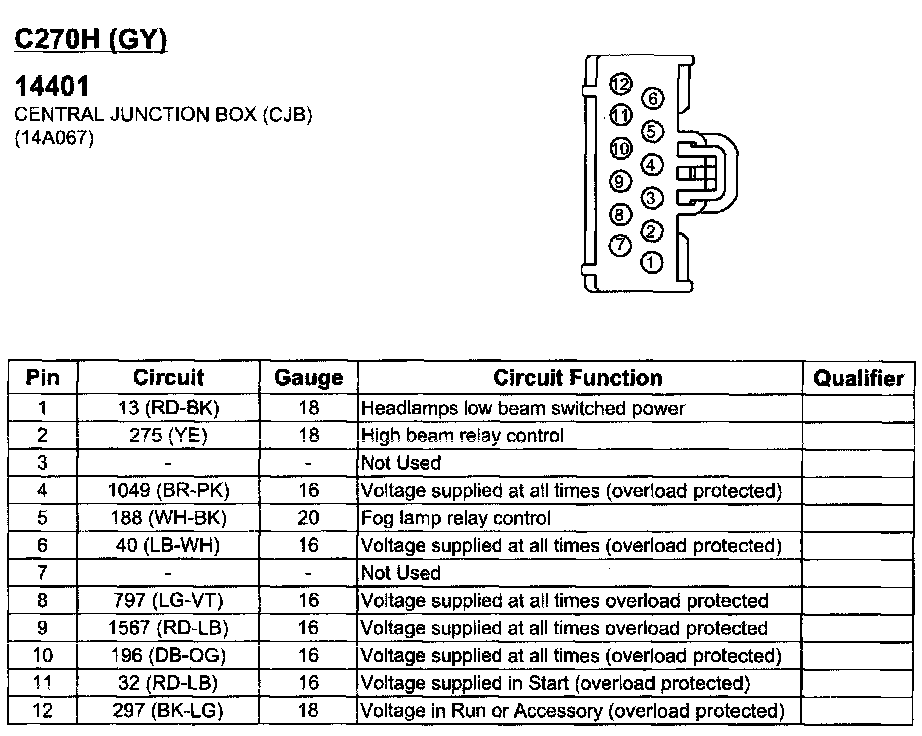

C270H:

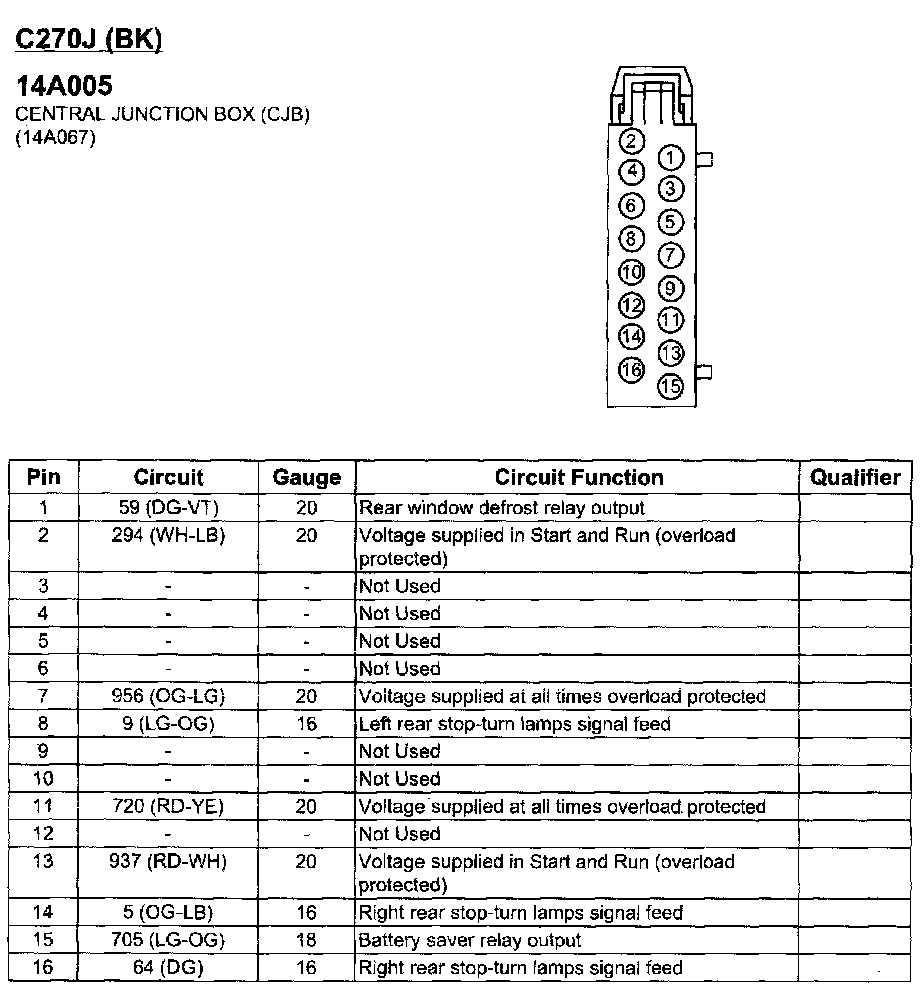

C270J:

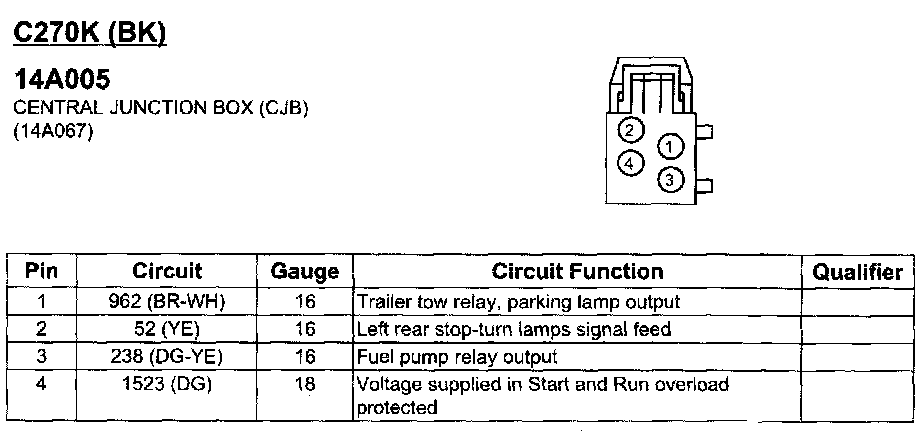

C270K:

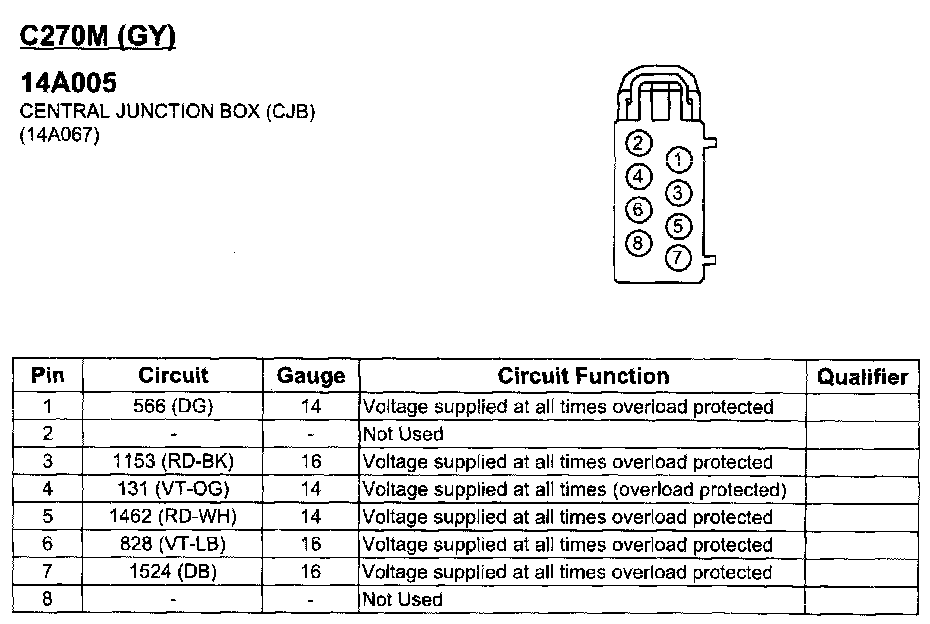

C270M:

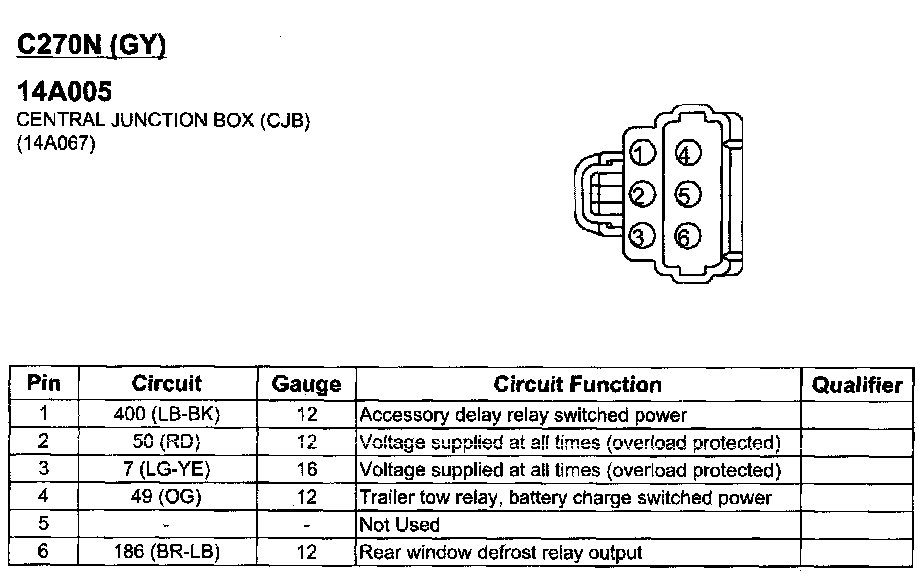

C270N:

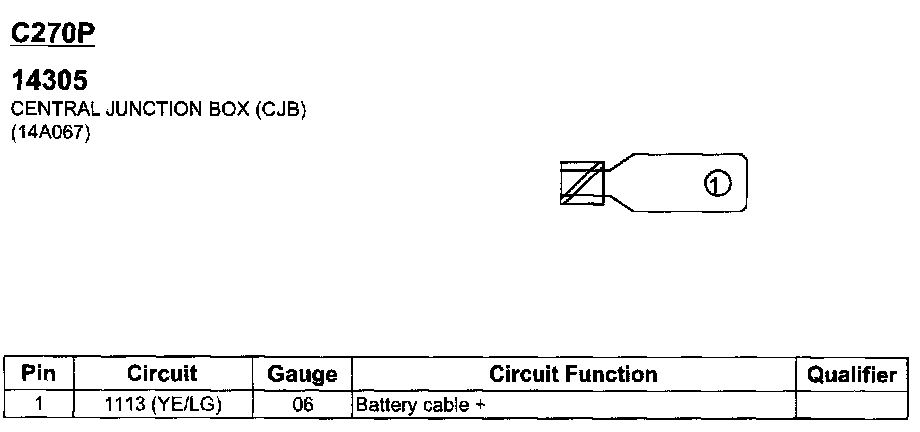

C270P:
