Home >> Lincoln >> 2007 >> Mark LT 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor Position Sensor >> Driver Memory Seat Horizontal Sensor

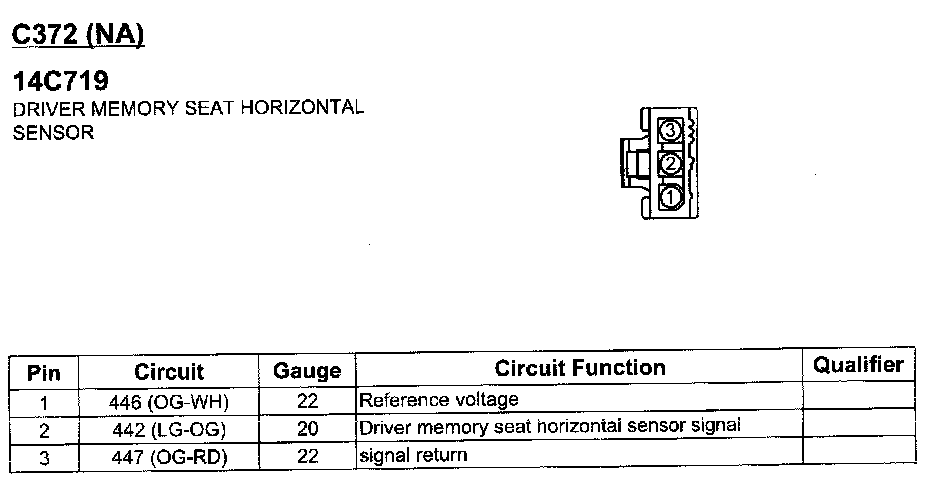

Driver Memory Seat Horizontal Sensor

C372:
