Home >> Lincoln >> 2007 >> Mark LT 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Trailer Brake Control Module >> Locations

Trailer Brake Control Module: Locations

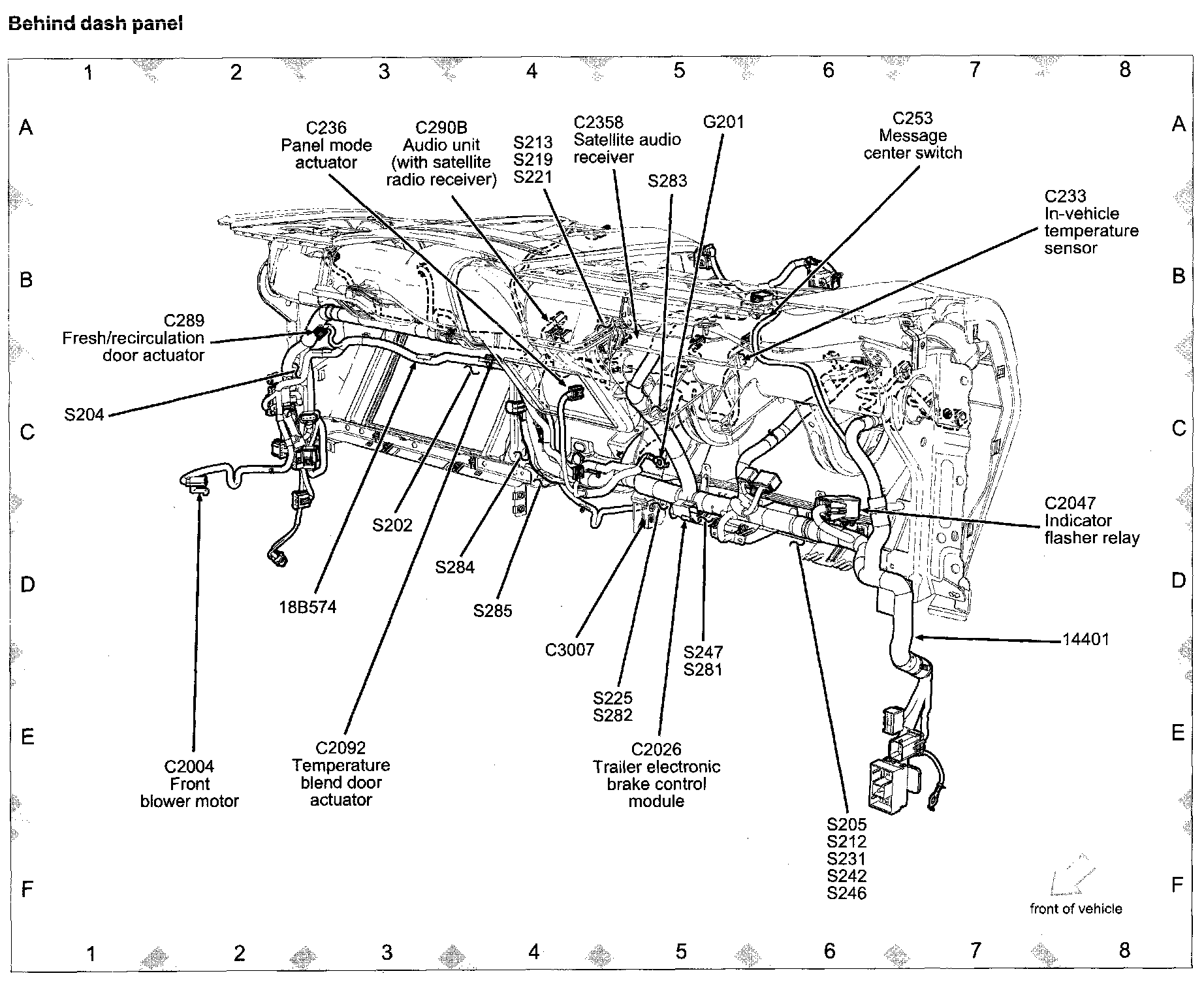

View 151-14 (behind Dash Panel):
