Body Support - Front End Sheet Metal

Body Support - Front End Sheet Metal

Removal and Installation

Front End Sheet Metal Body Mount

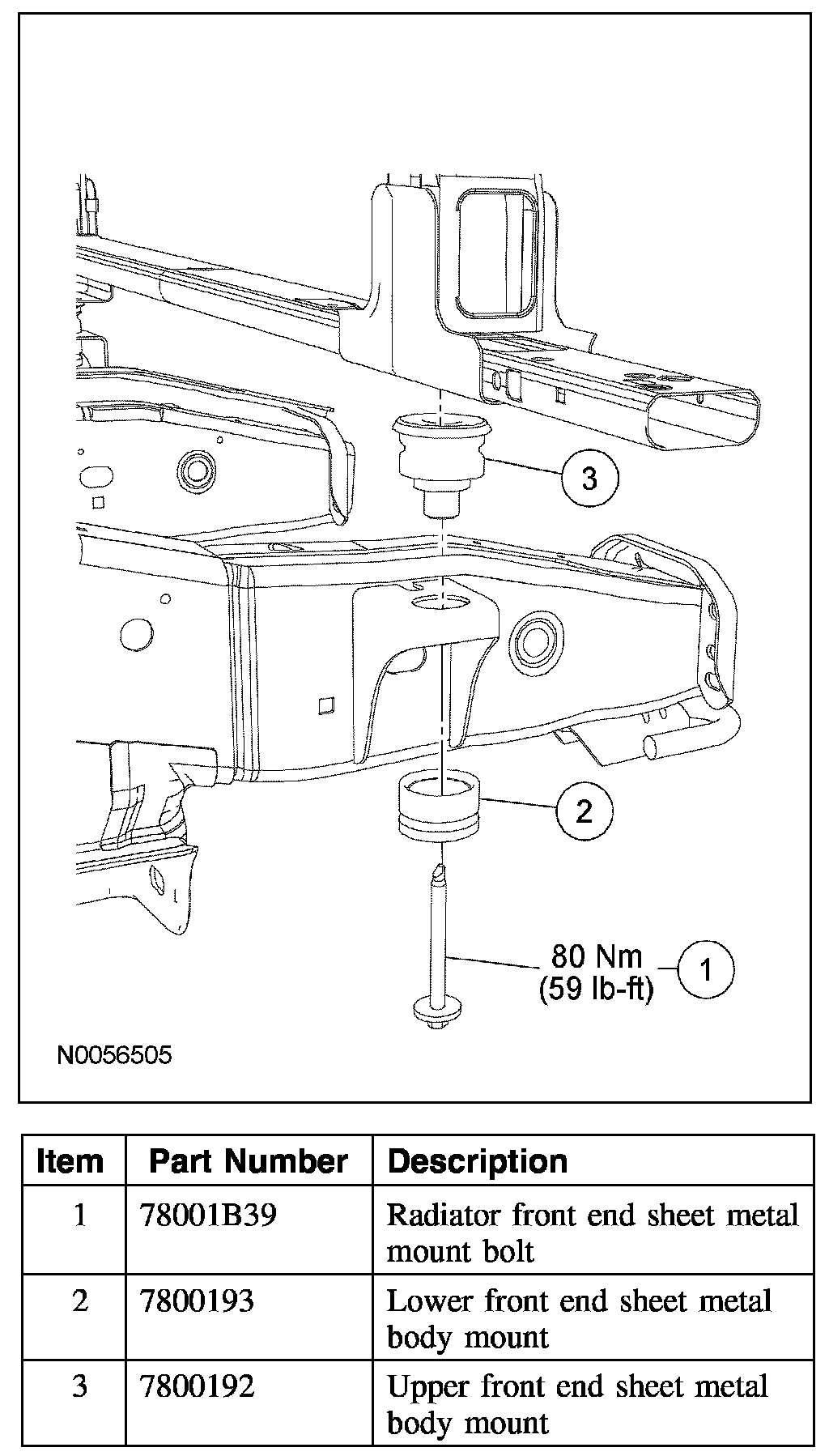

Front End Sheet Metal Body Mount:

Upper and lower body mount
1. Remove the lower front end sheet metal body mount.
1 Remove the lower front end sheet metal body mount bolt.
2 Remove the lower front end sheet metal body mount.
- To install, tighten to 80 Nm (59 lb-ft).

Upper body mount
2. Loosen the remaining body mount bolts.
3. Raise the vehicle body enough to remove the upper front end sheet metal body mount.

Upper and lower body mount

4. NOTE:
- No lubricants of any kind are to be used during body mount installation.
- Do not reuse body mount fasteners. New fasteners must be installed for each fastener that has been removed or loosened.

To install, reverse the removal procedure.
