REGISTER - DRIVER SIDE
Removal and Installation
1.
Remove the instrument cluster finish panel.
2.

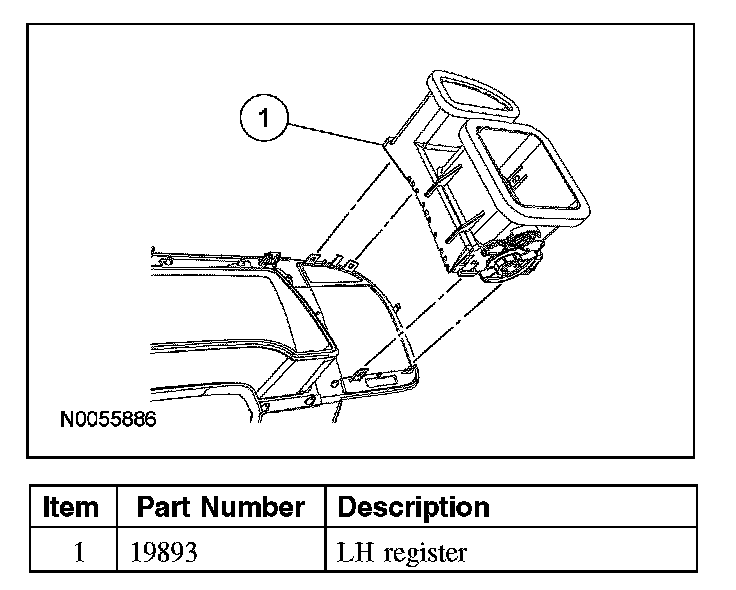

Release the clips and remove the LH register.
3.
To install, reverse the removal procedure.
