Home >> Lincoln >> 2007 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Locations

Power Trunk / Liftgate Control Module: Locations

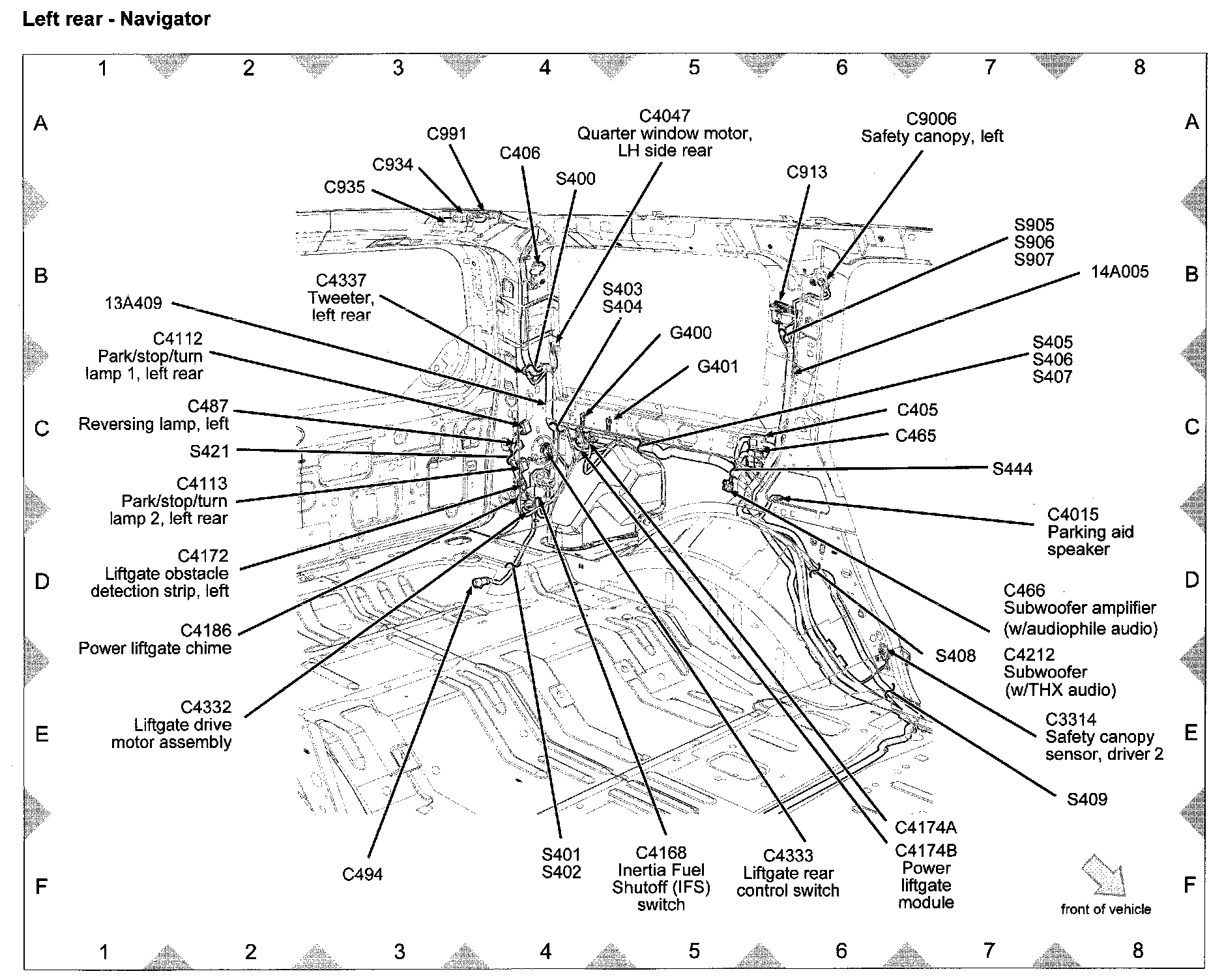

View 151-27 (Left Rear - Navigator):

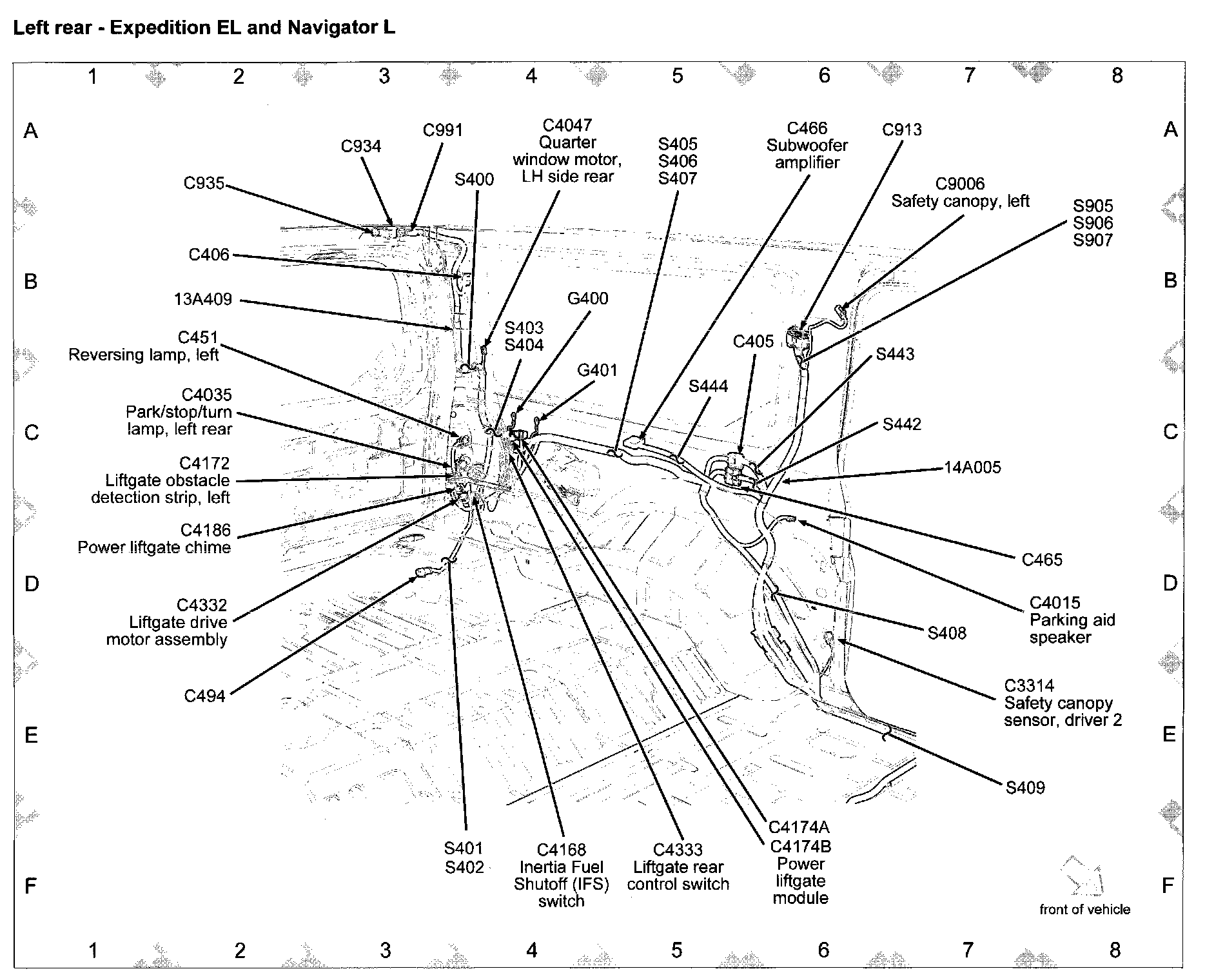

View 151-29 (Left Rear - Expedition EL And Navigator L):
