Sunroof / Moonroof Module: Locations

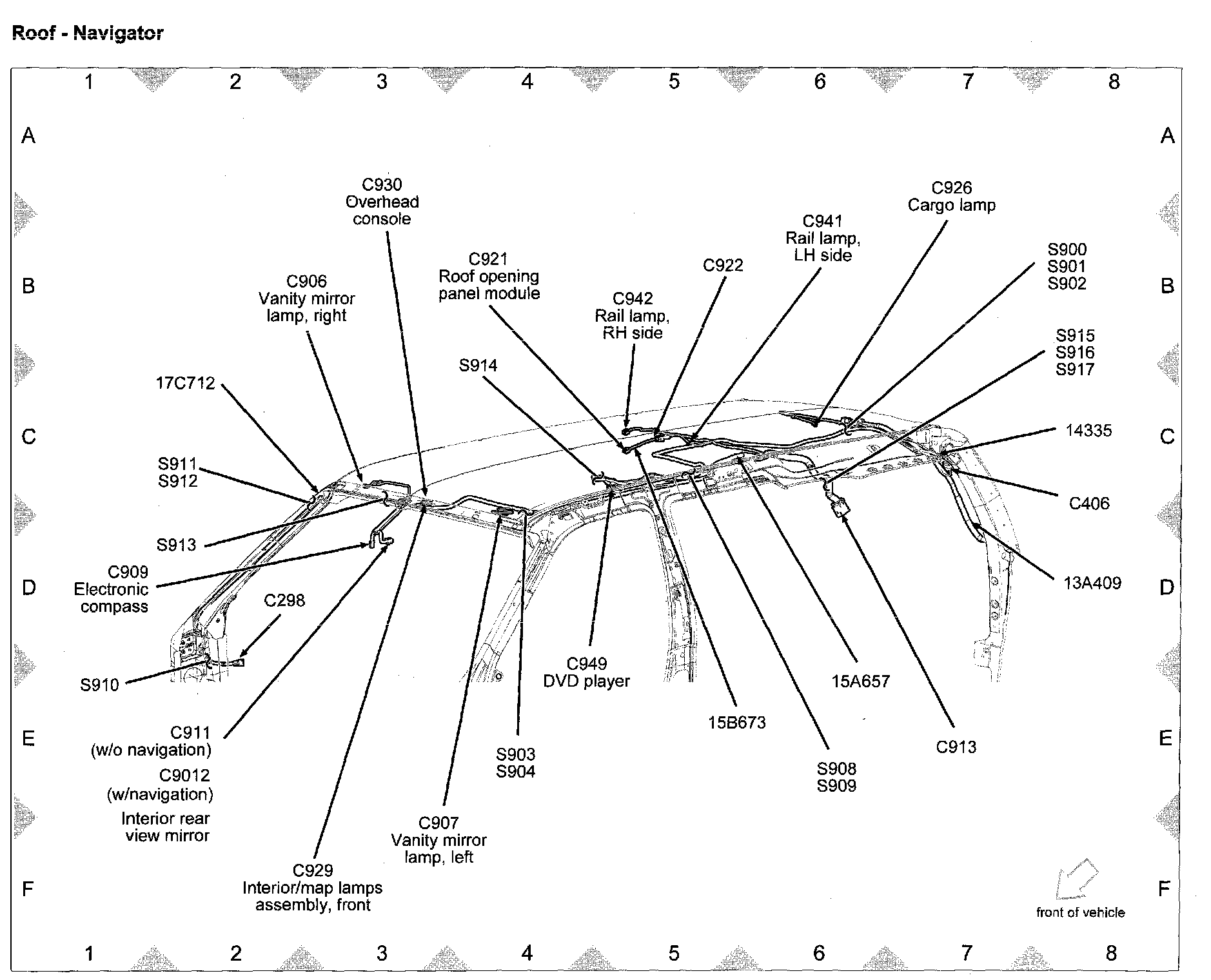

View 151-44 (Roof - Navigator):



View 151-45 (Roof - Expedition EL And Navigator L):
