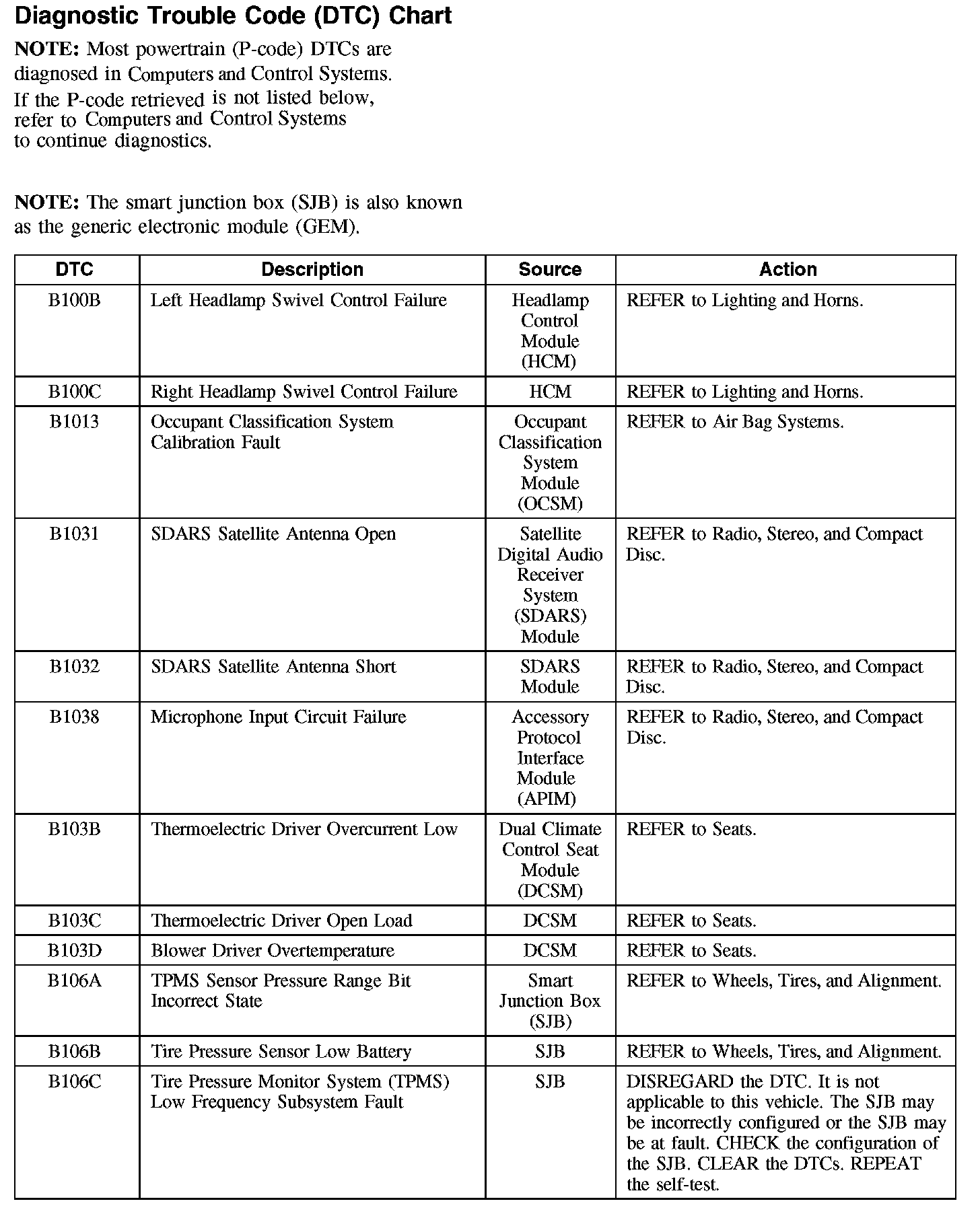

Diagnostic Trouble Code (DTC) Chart

B100B-B1038:

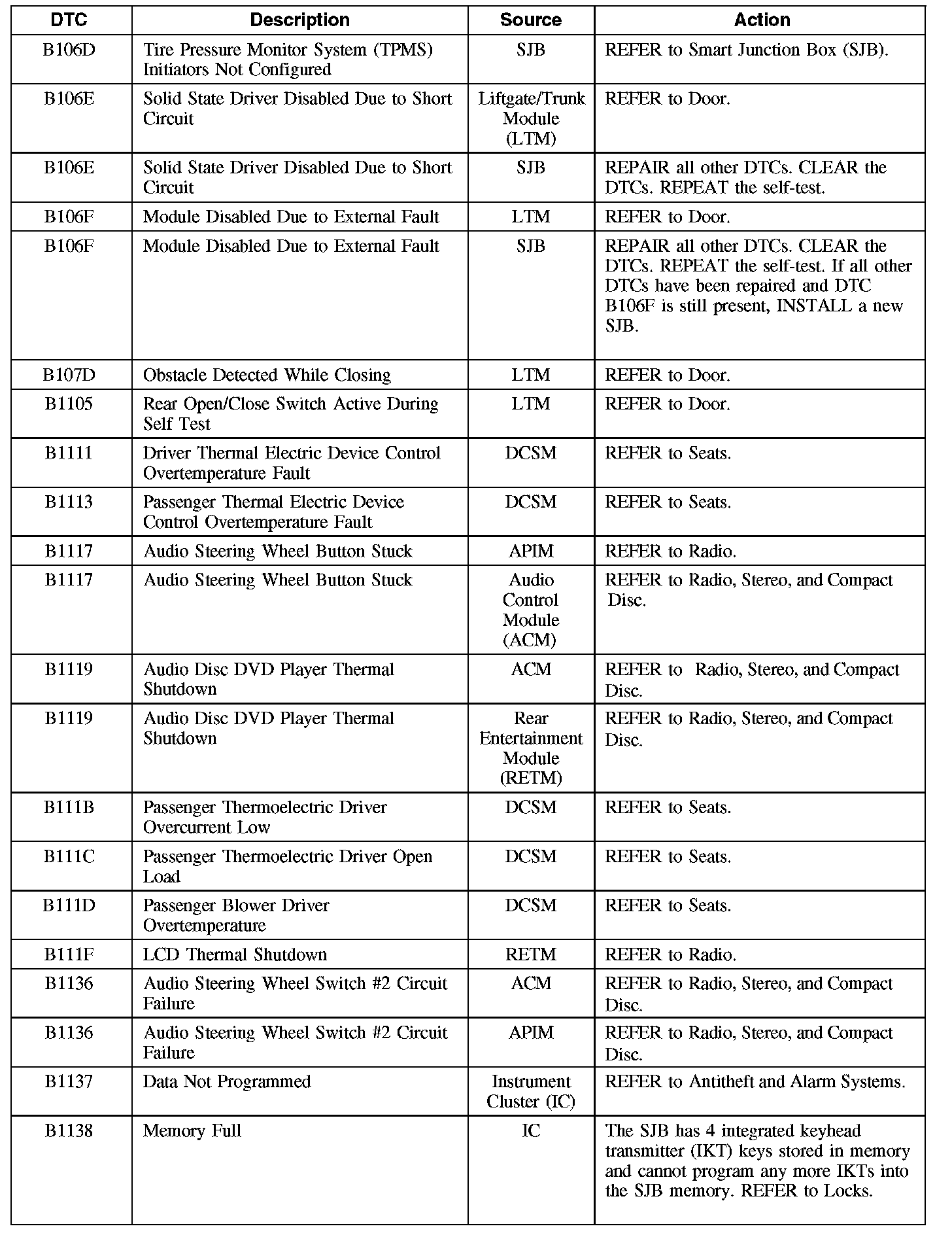

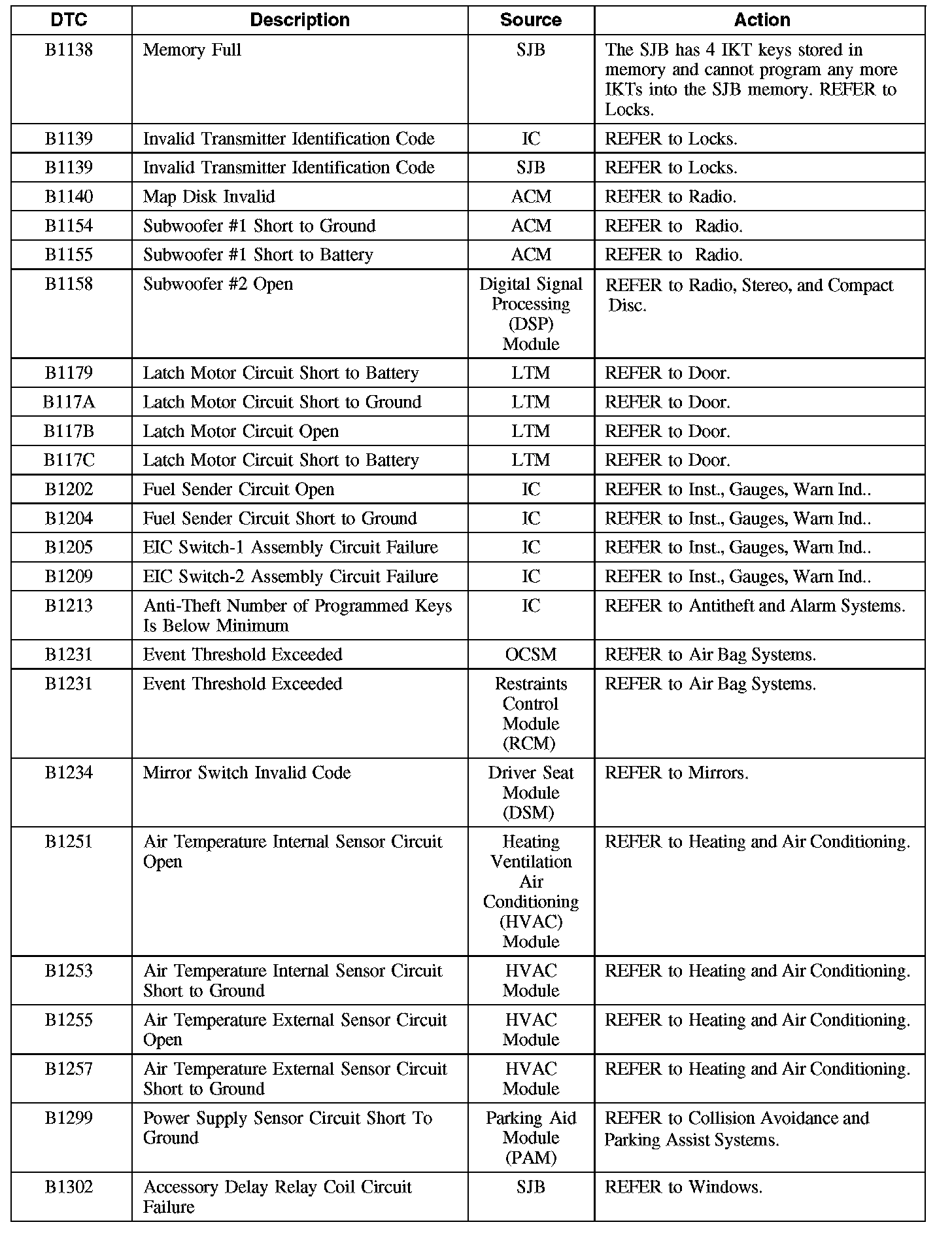

B106D-B1138:

B117A-B1302:

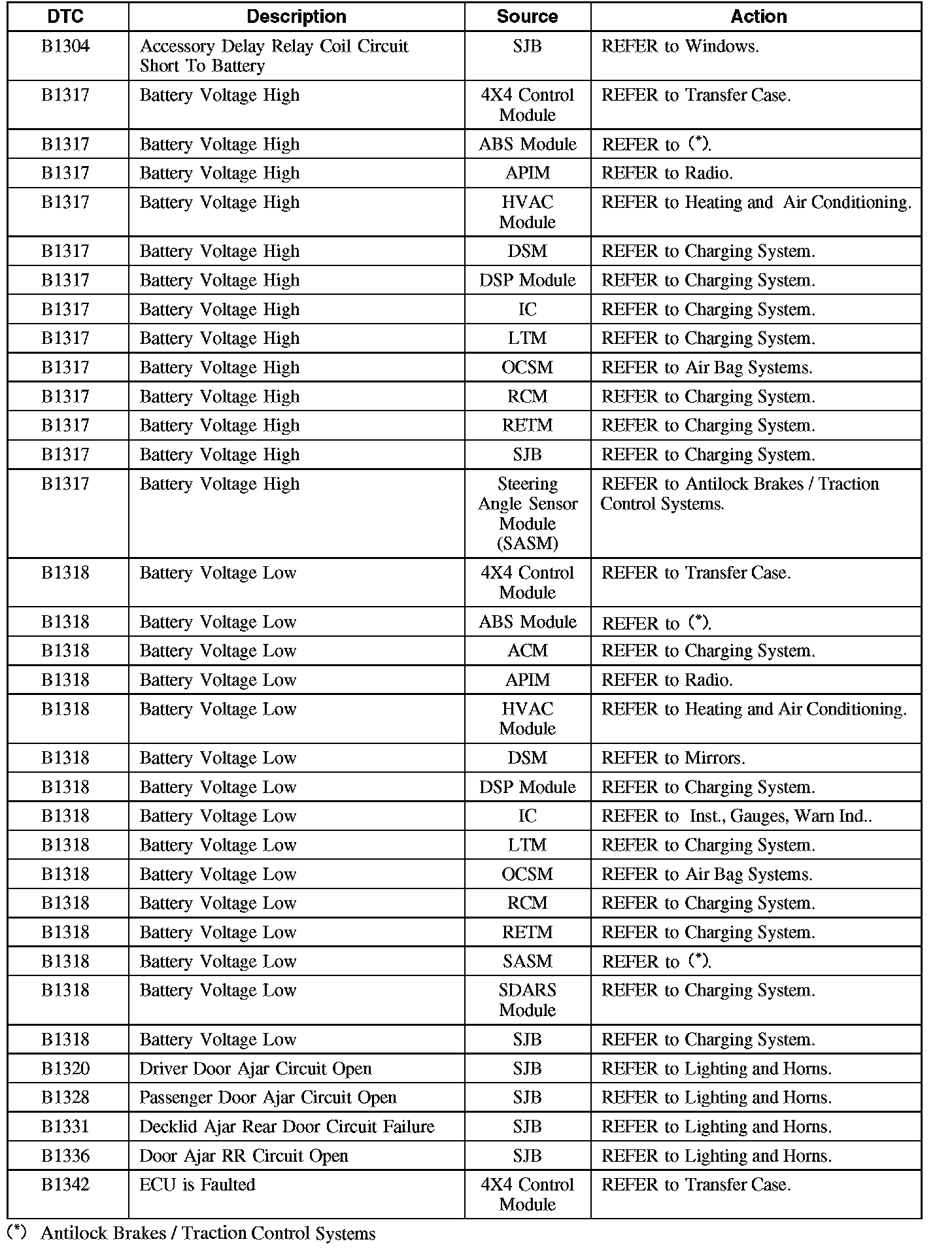

B1304-B1342:

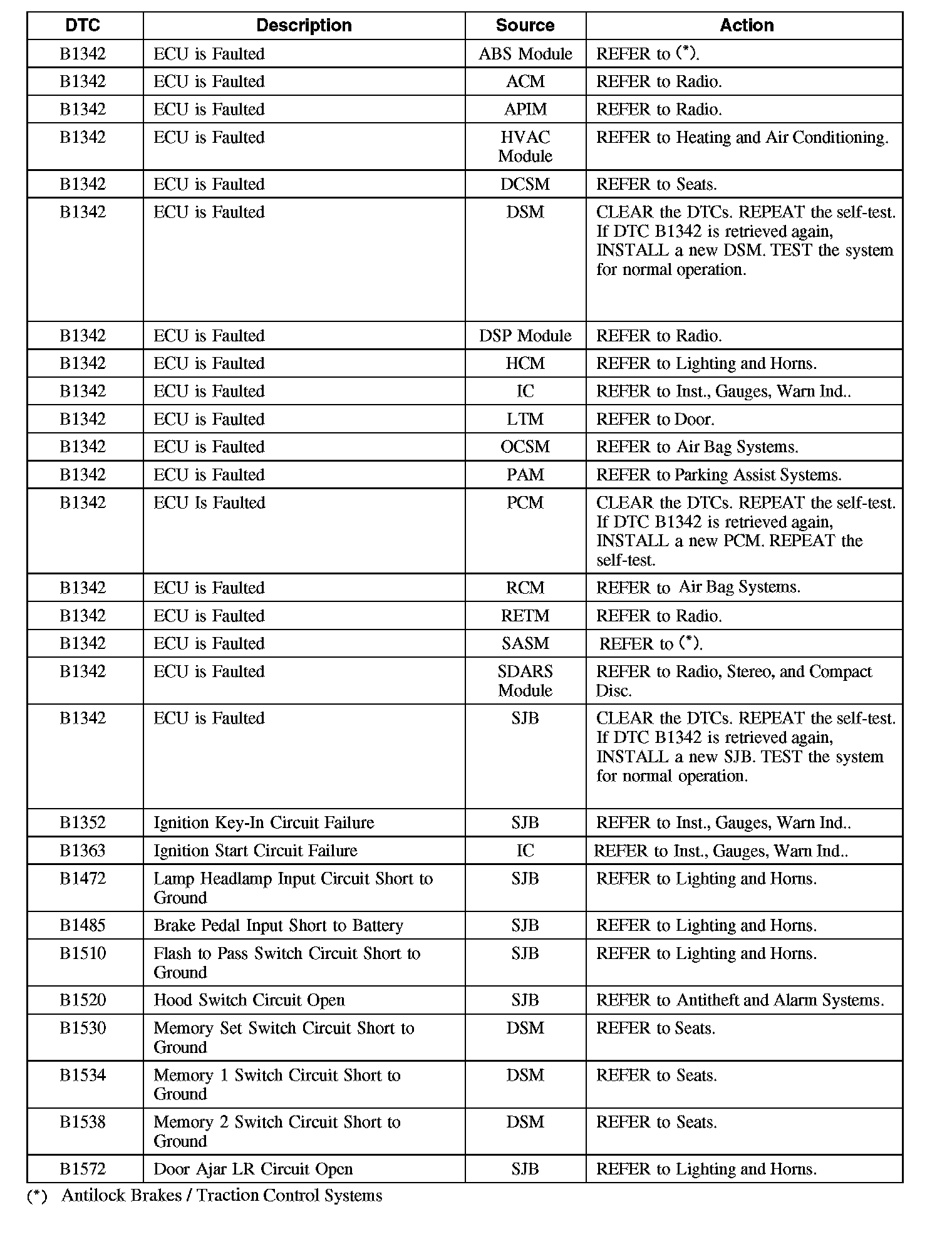

B1342-B1572:

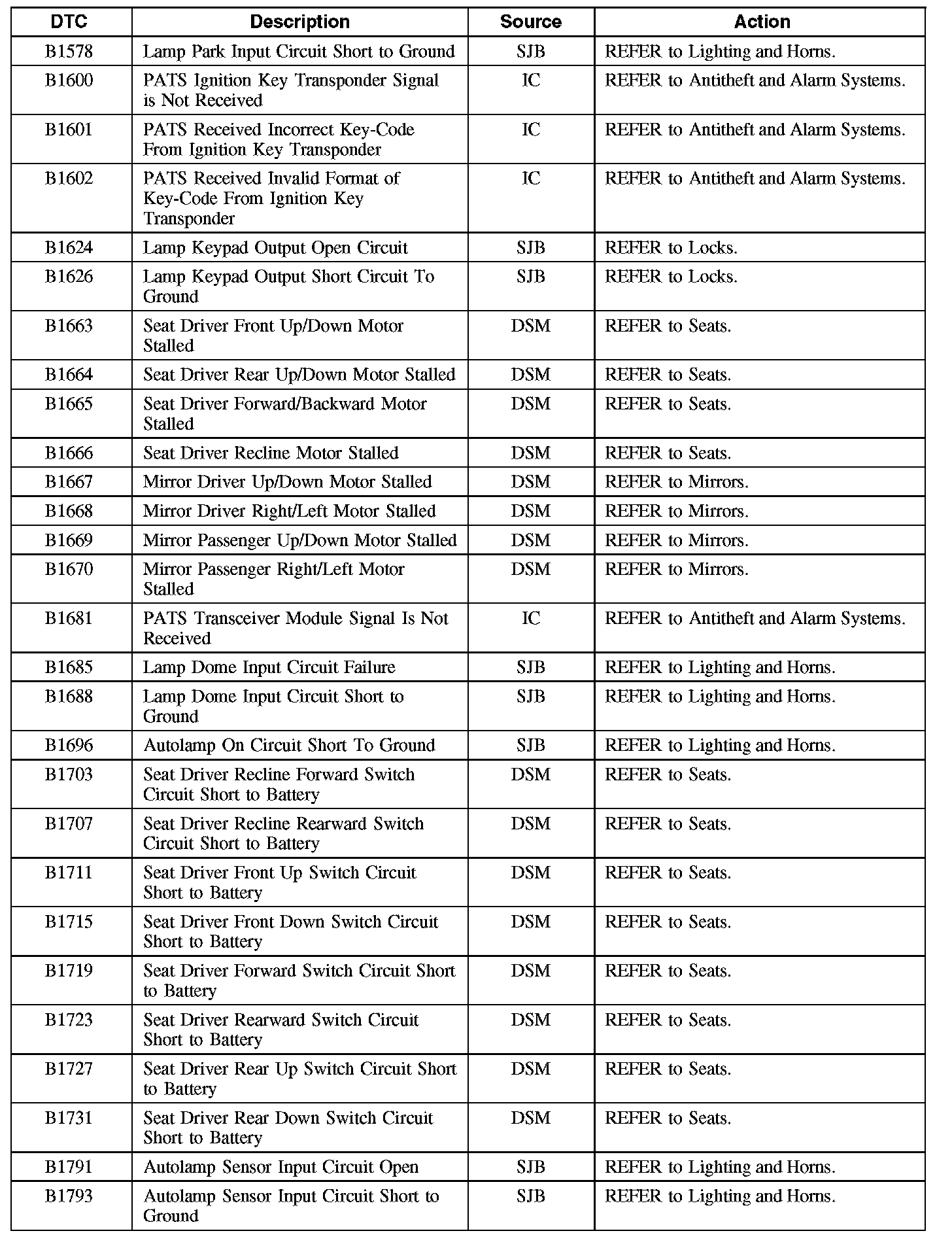

B1578-B1793:

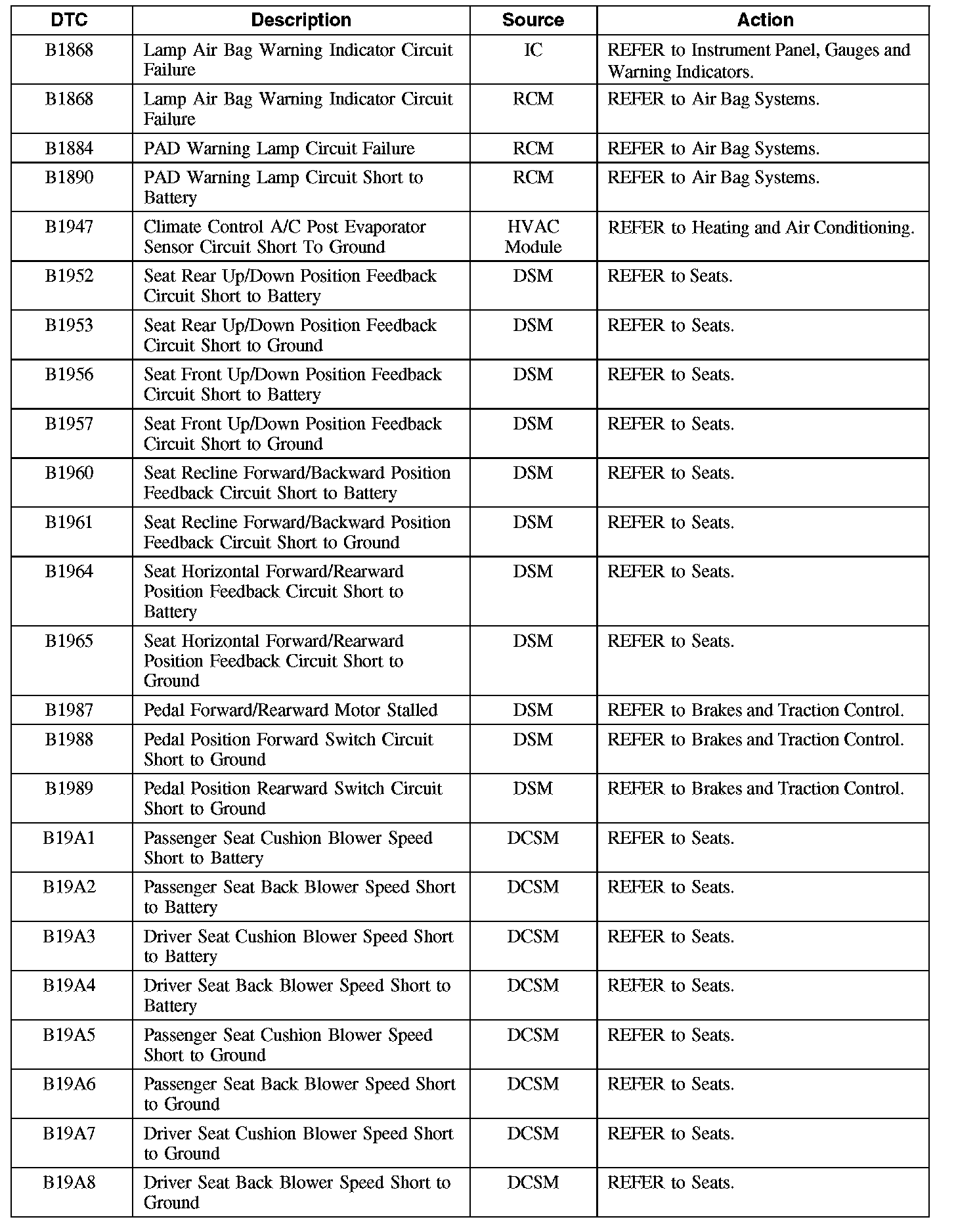

B19A1-B1989:

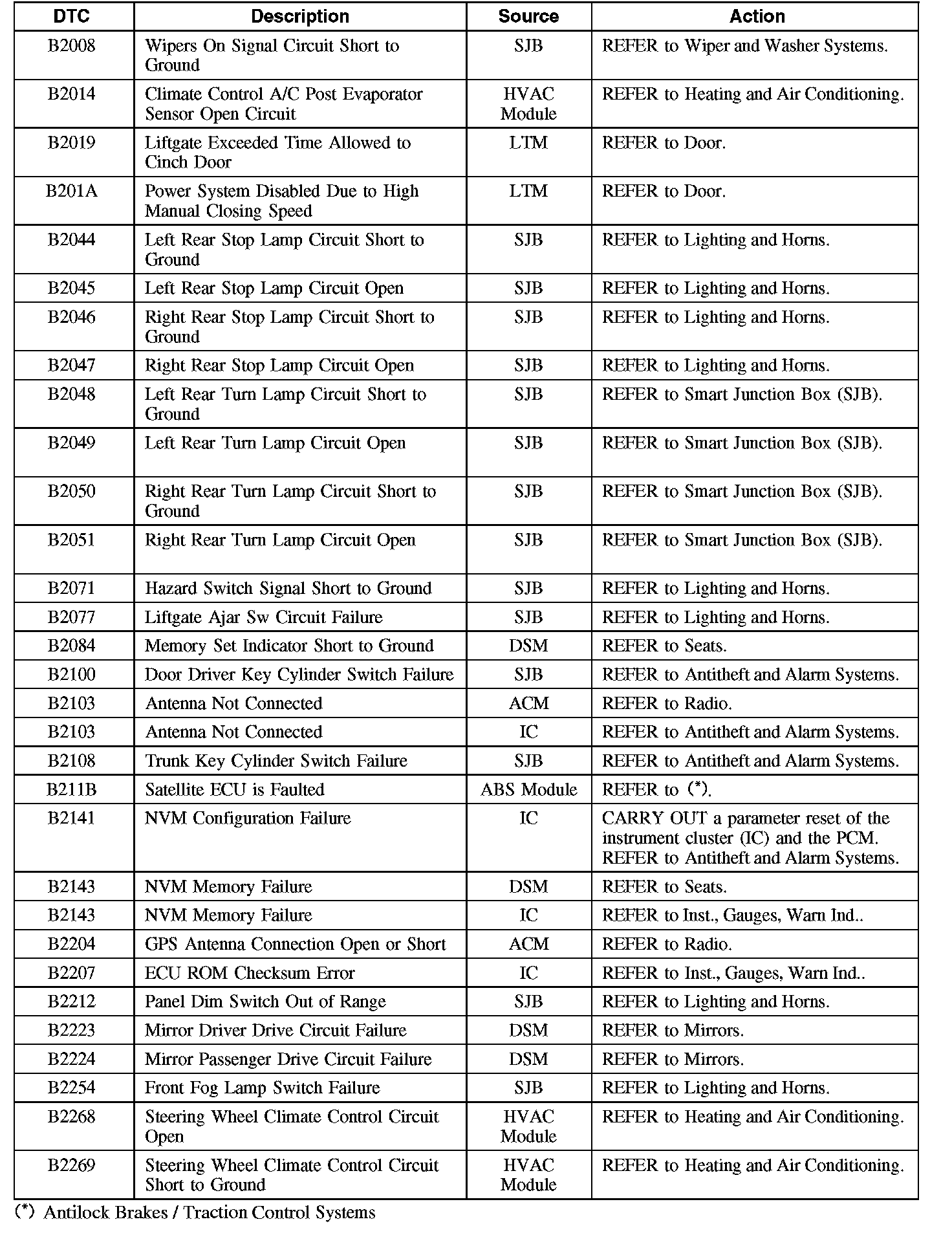

B201A-B2269:

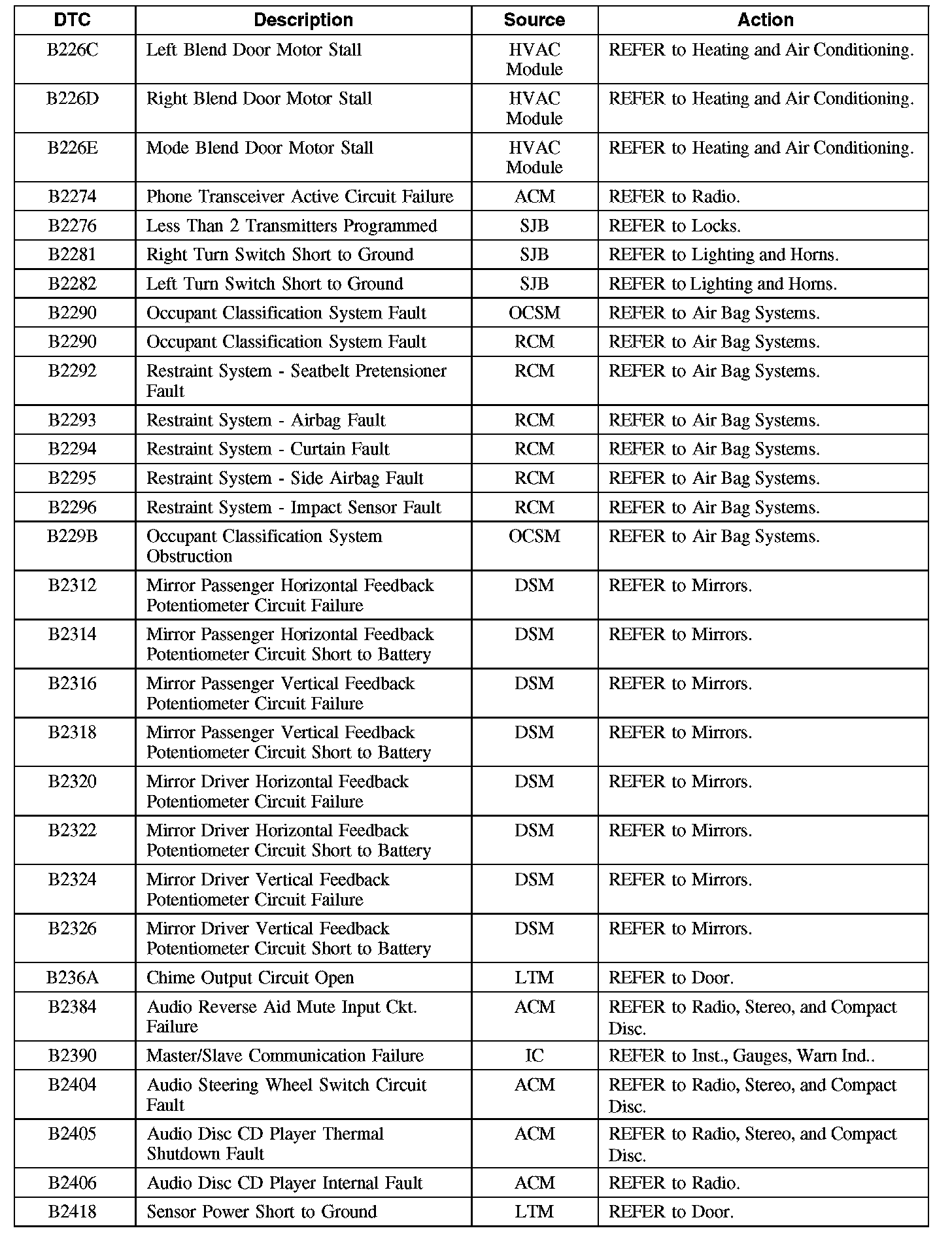

B226C-B2418:

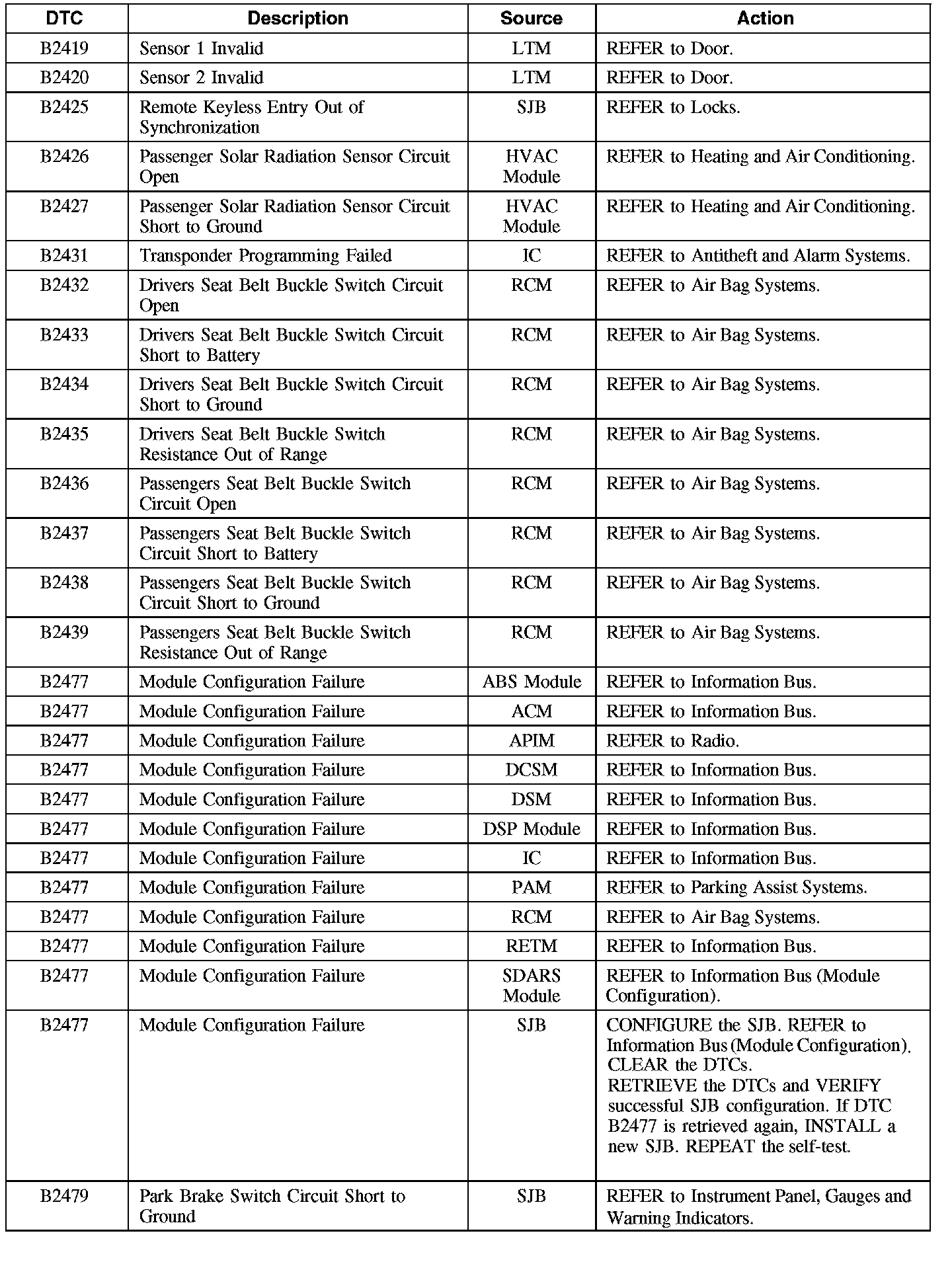

B2419-B2479:

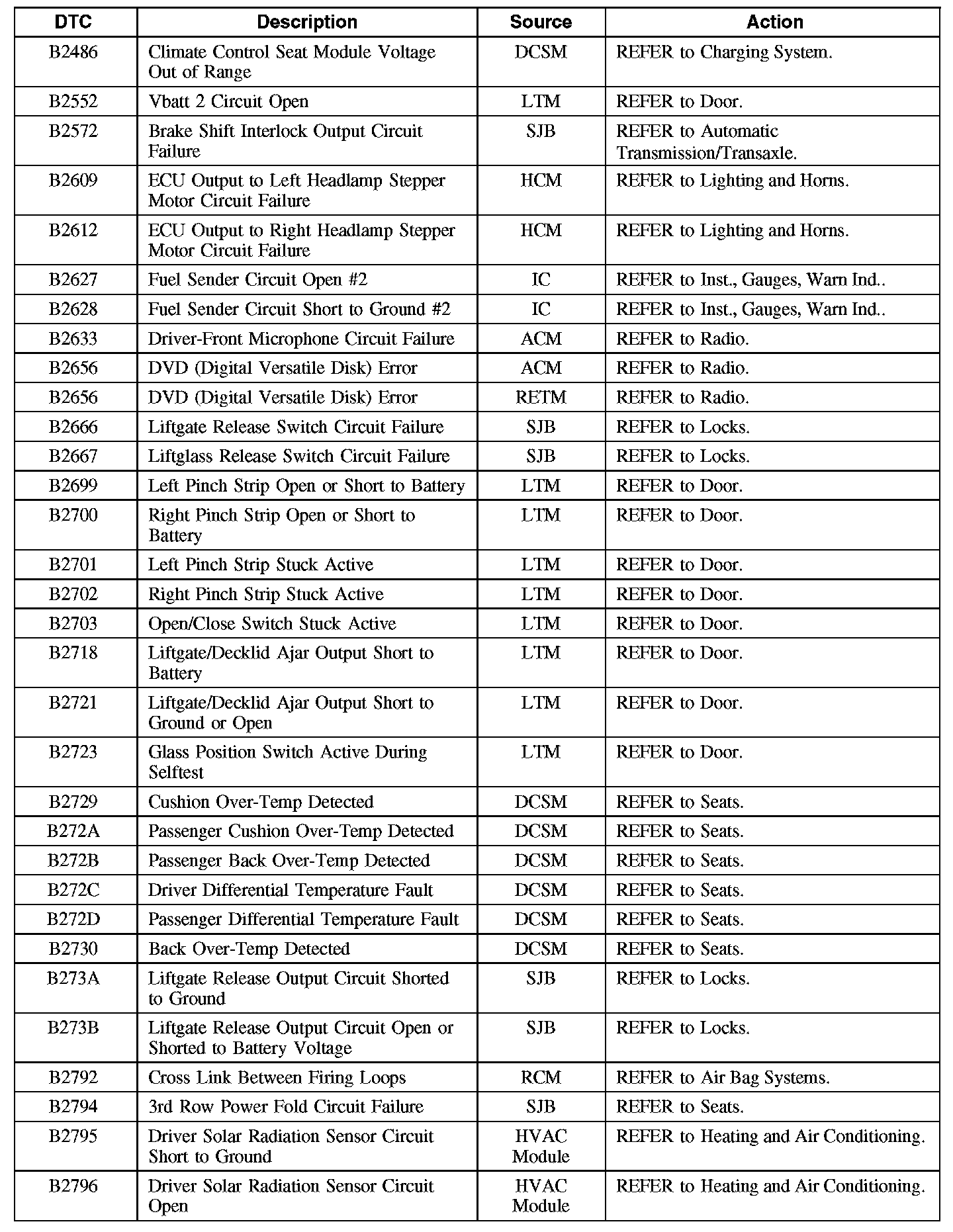

B272A-B2796:

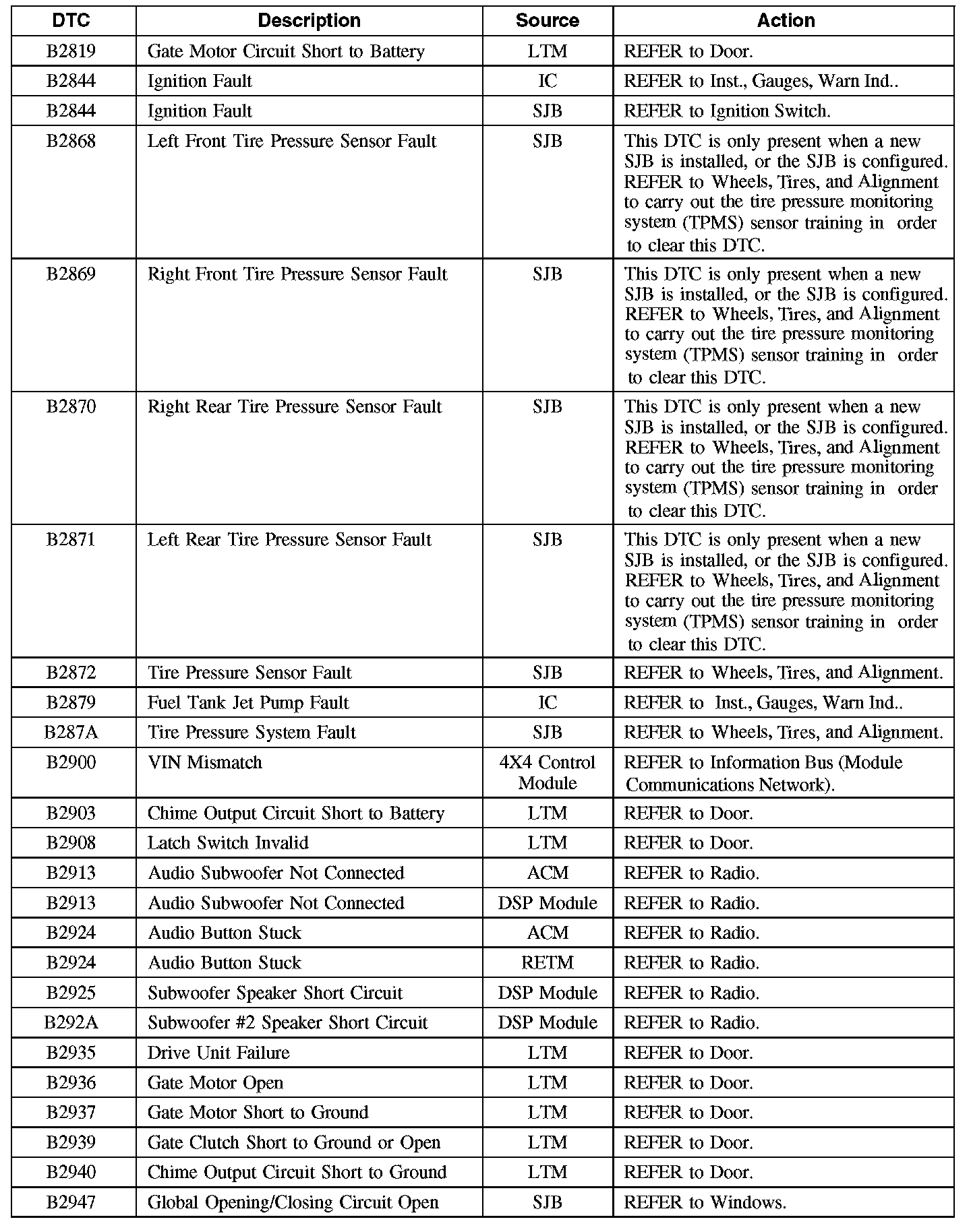

B287A-B2947:

B2A2A-B2972:

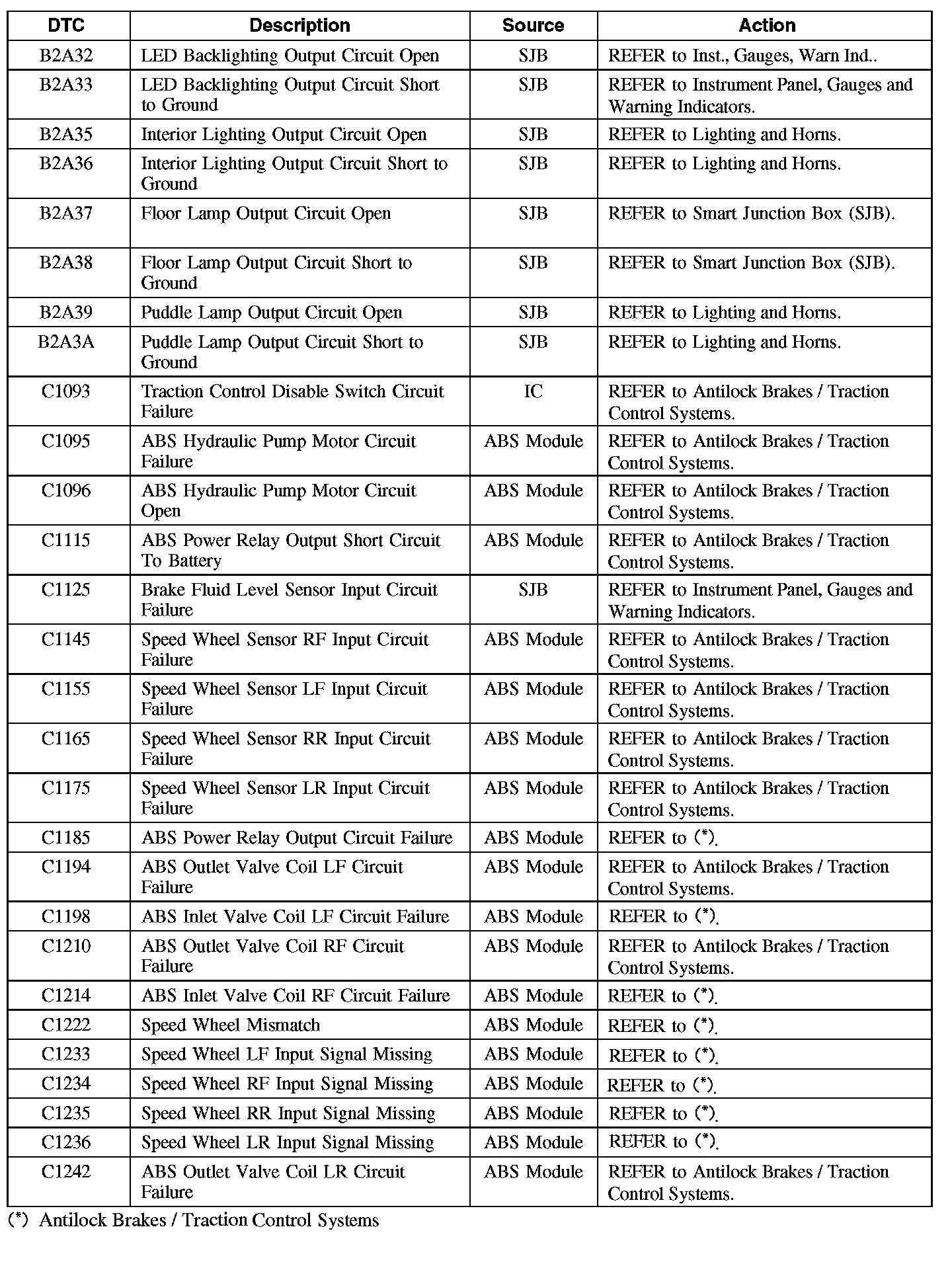

B2A3A-B2A39 / C1093-C1242:

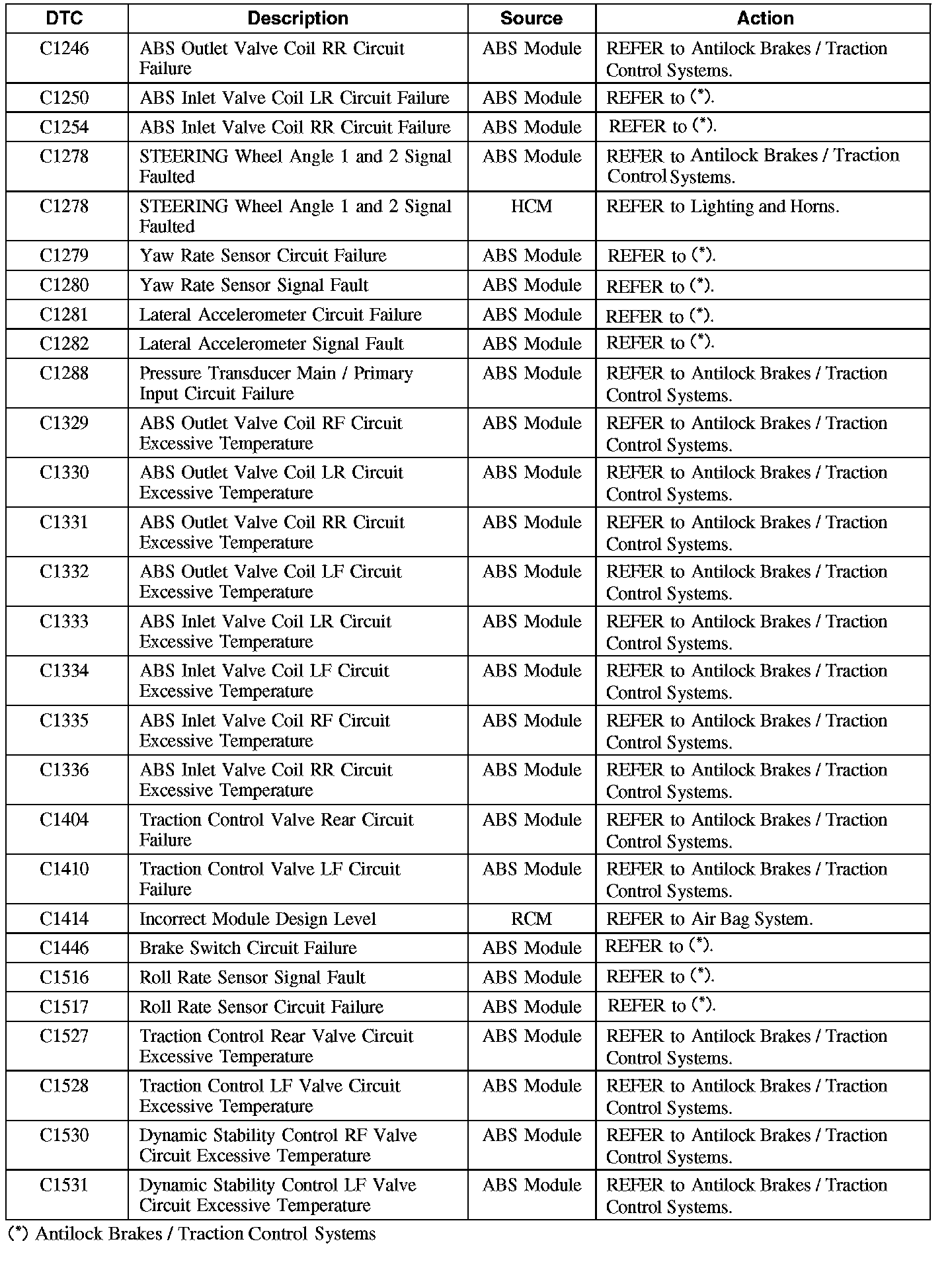

C1246-C1531:

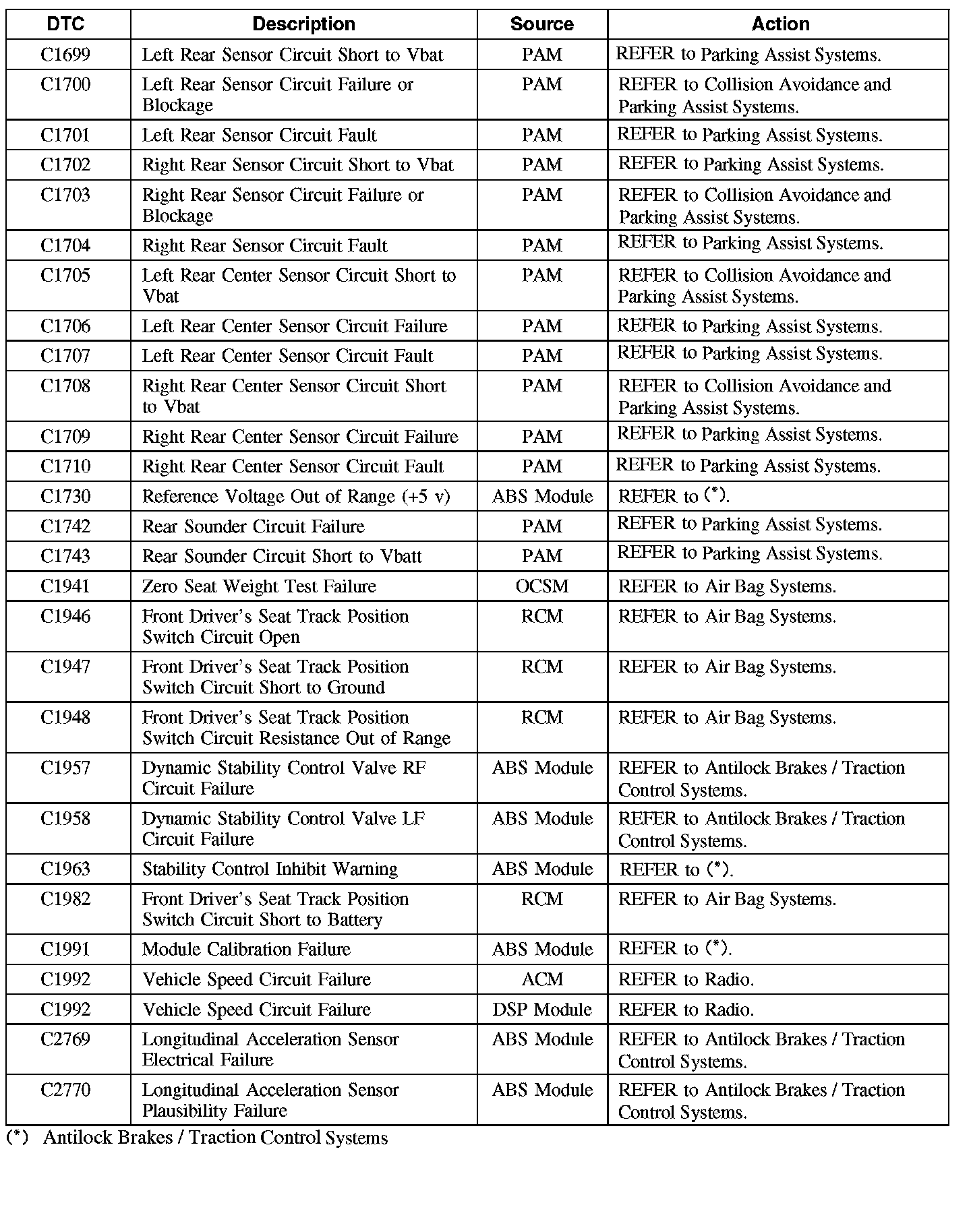

C1699-C2770:

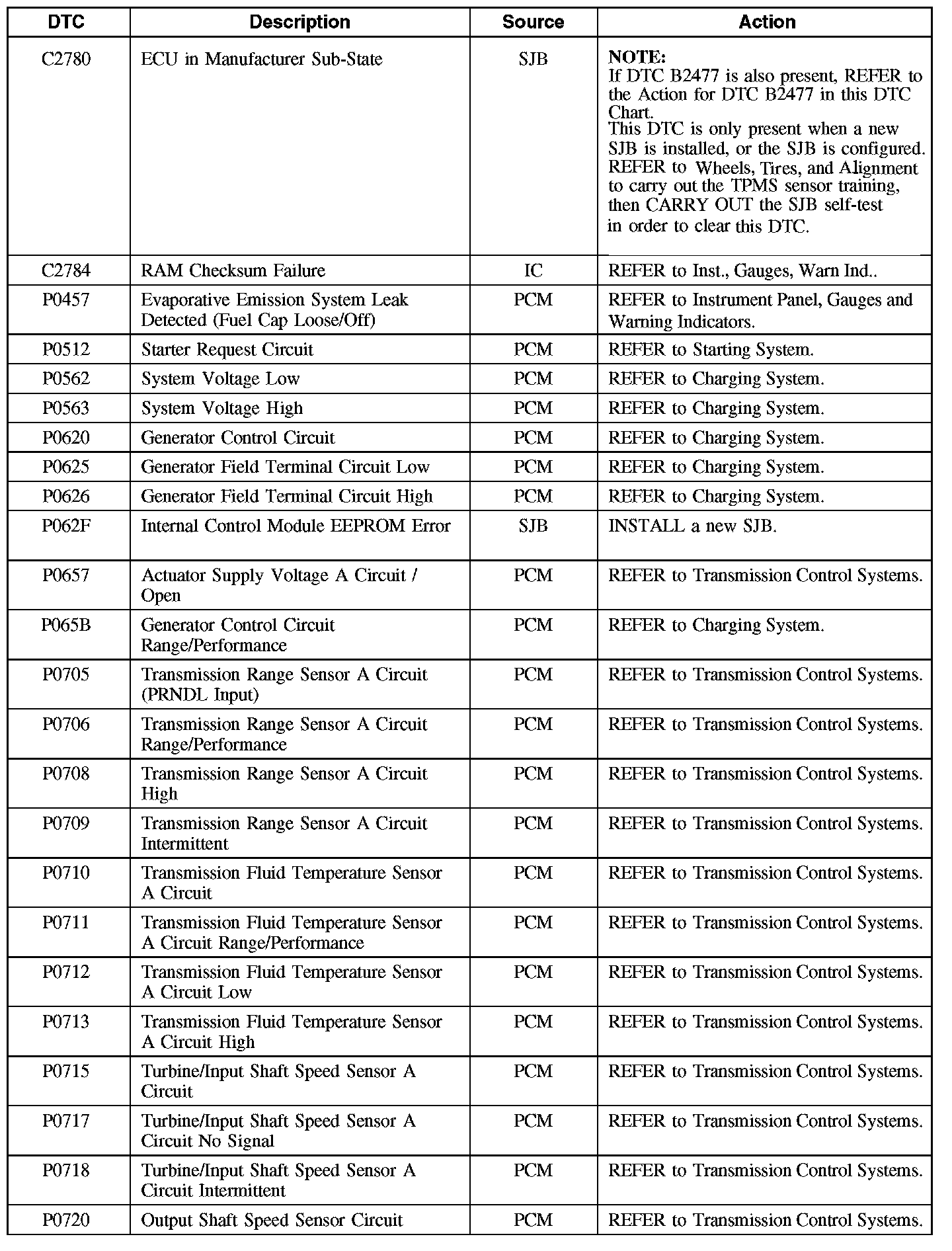

C2780-C2784 / P062F-P0720:

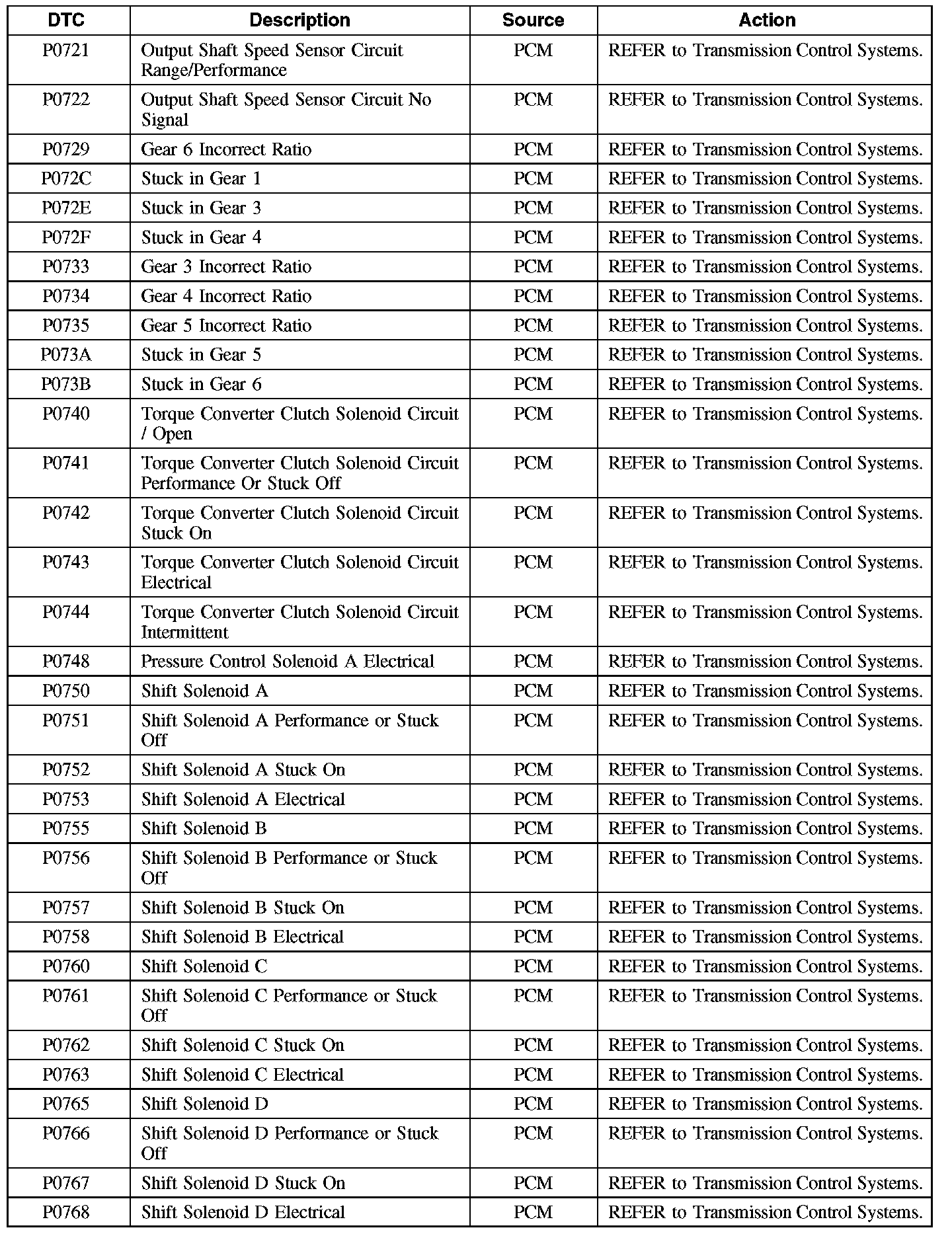

P072C-P0768:

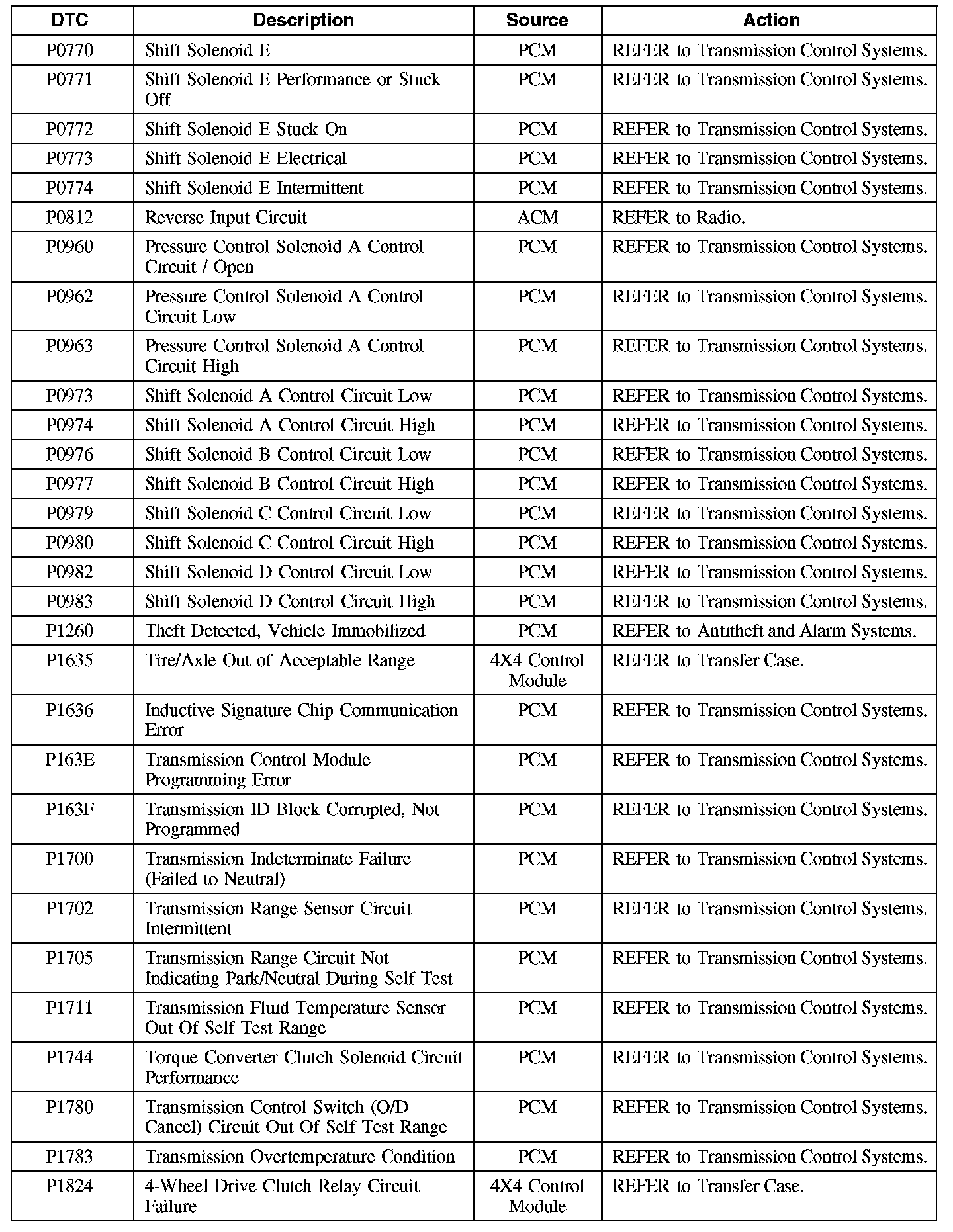

P163E-P1824:

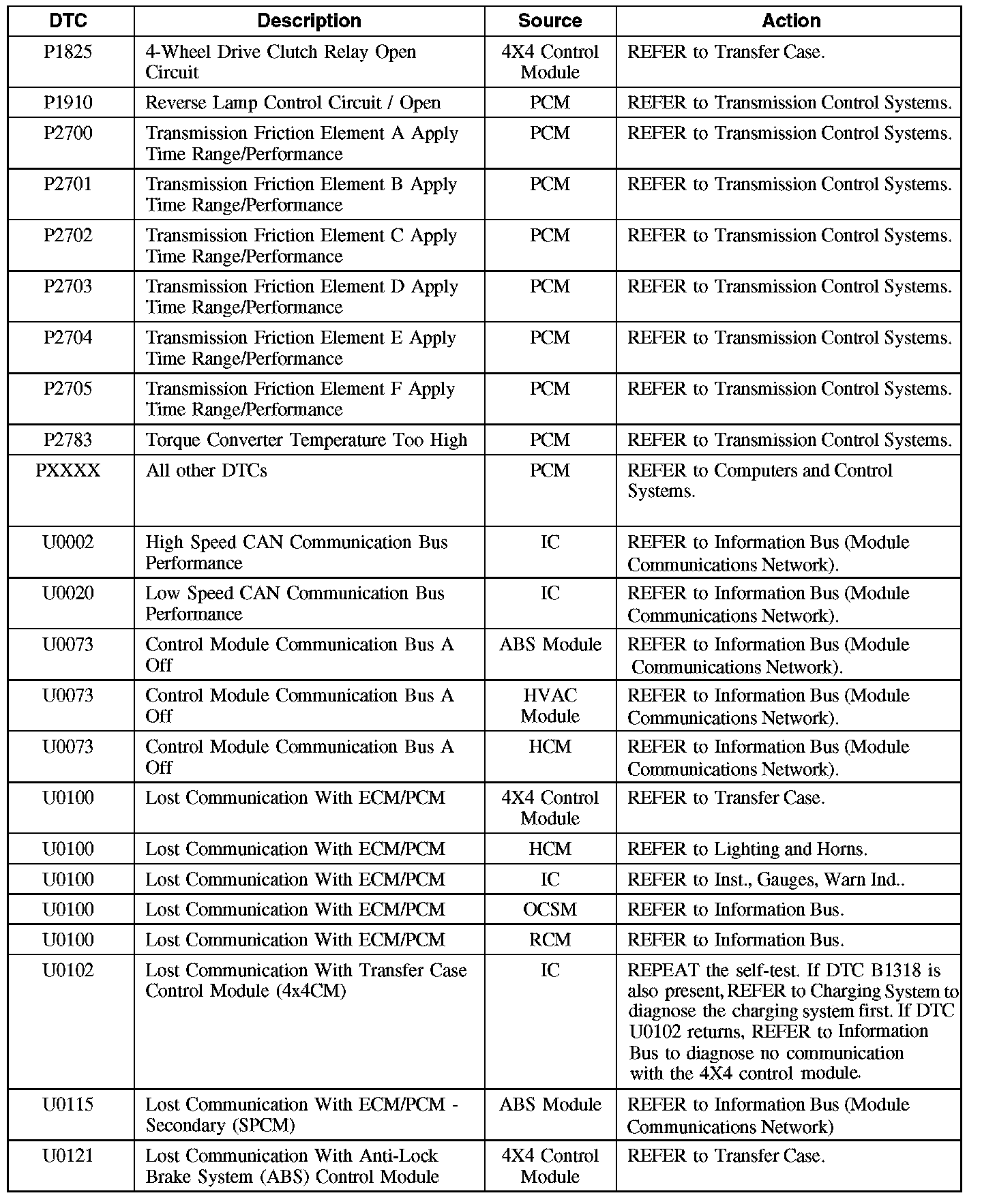

P1825-P2783 / U0002-U0121:

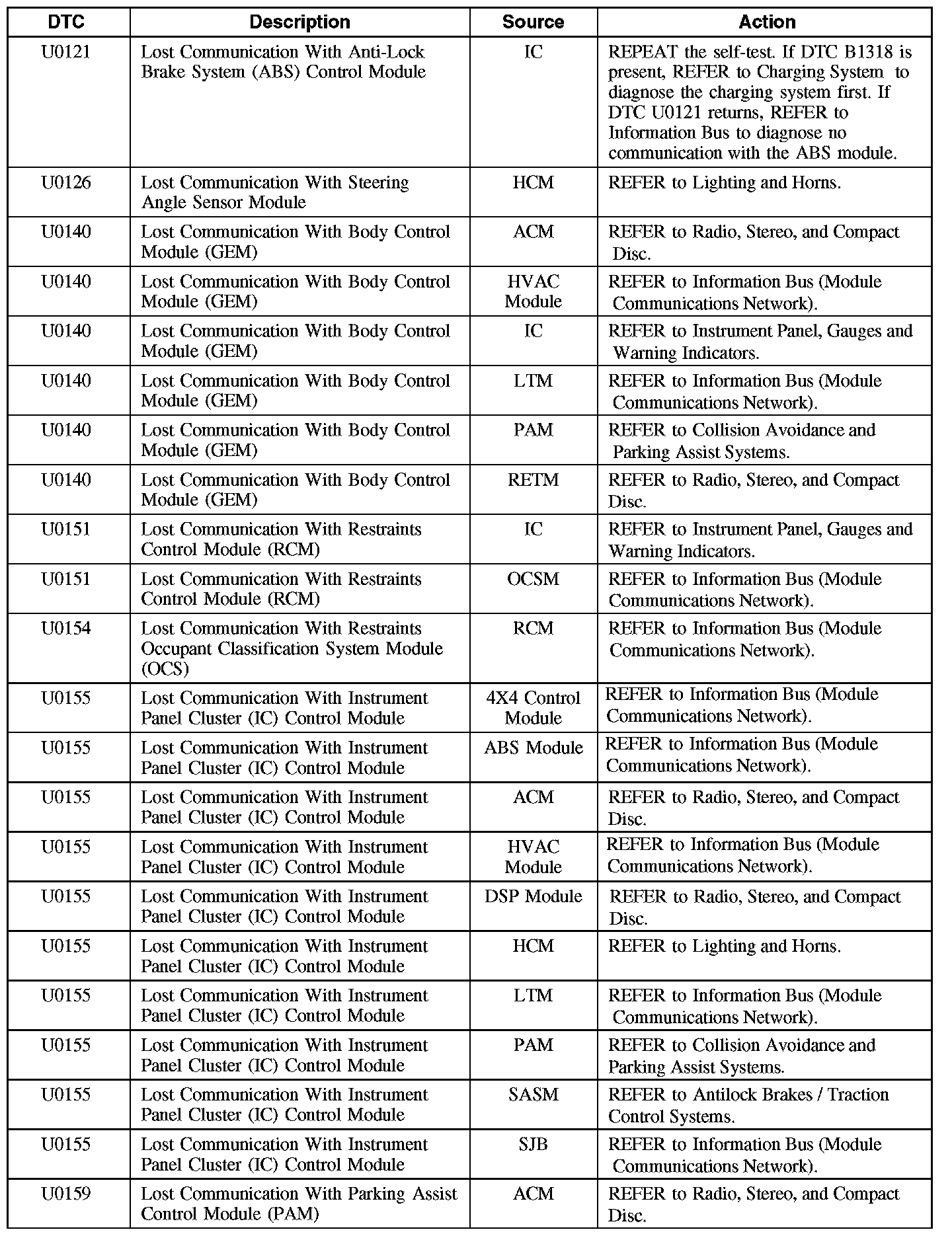

U0121-U0159:

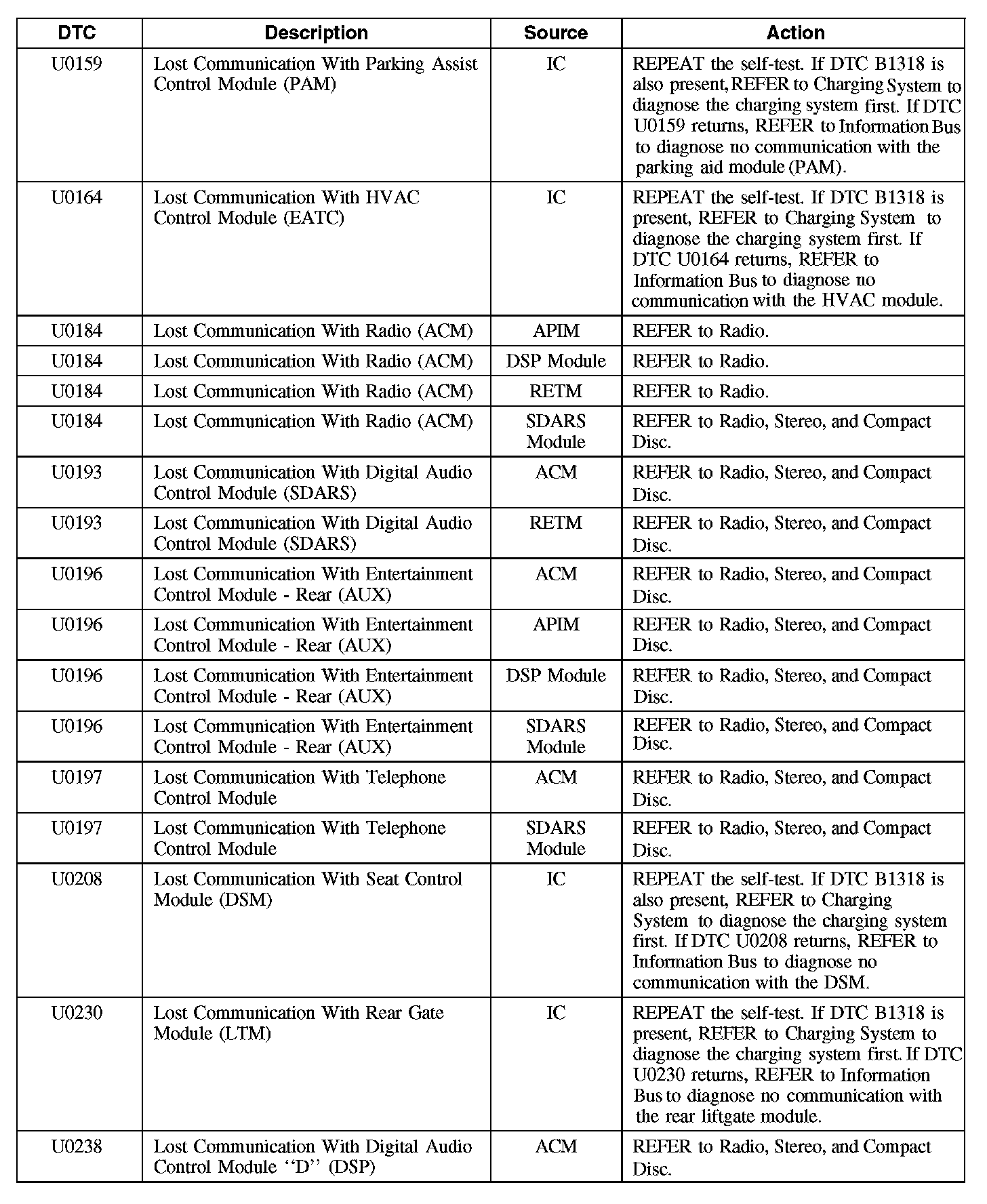

U0159-U0238:

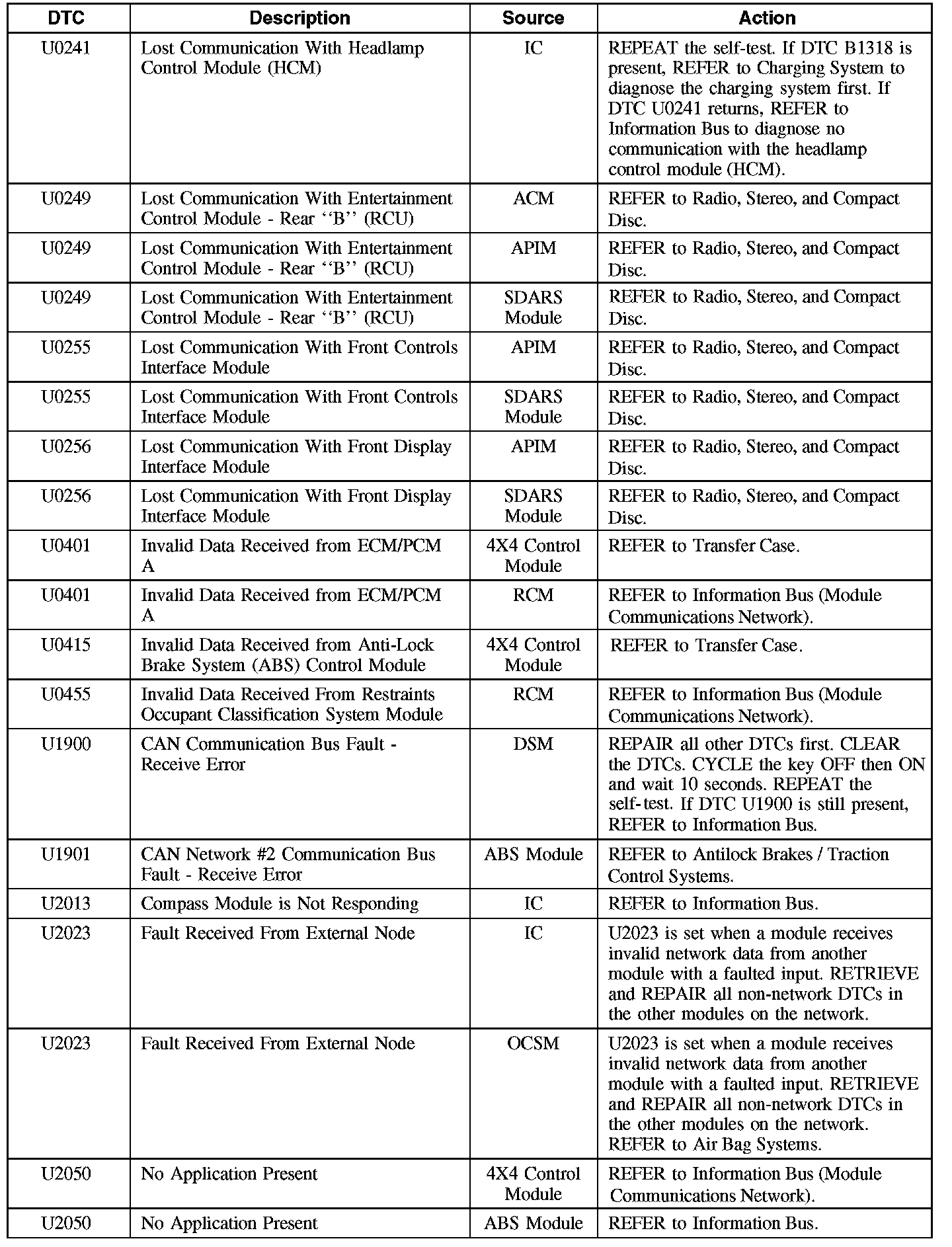

U0241-U2050:

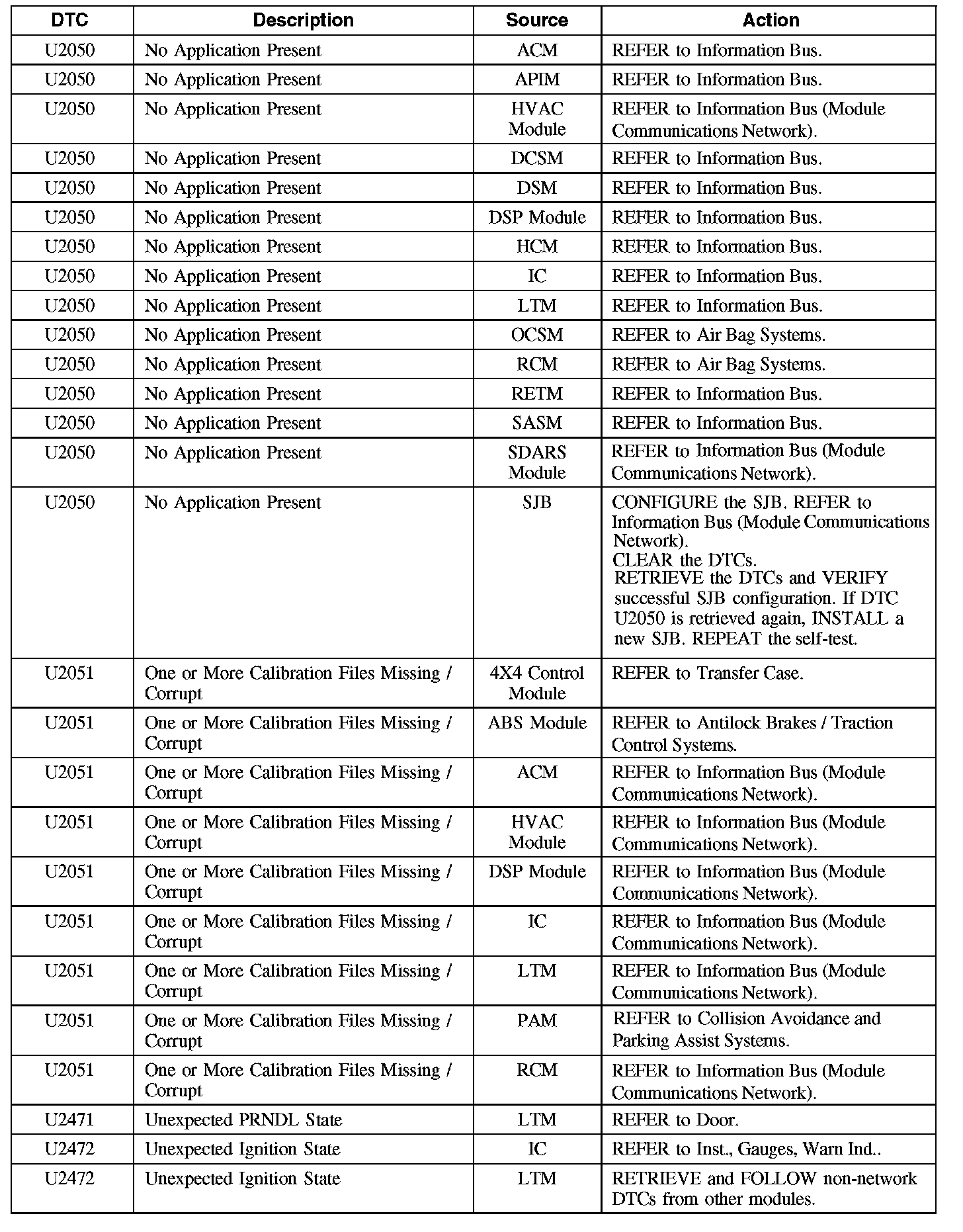

U2050-U2472:

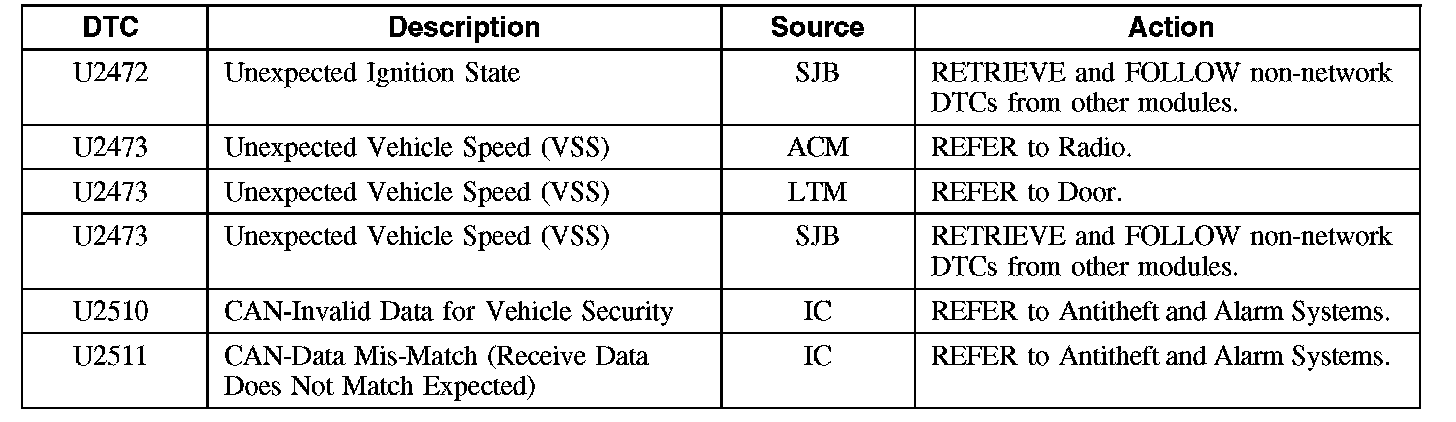

U2472-U2511:
