Power Seat Switch: Service and Repair

MEMORY SET SWITCH

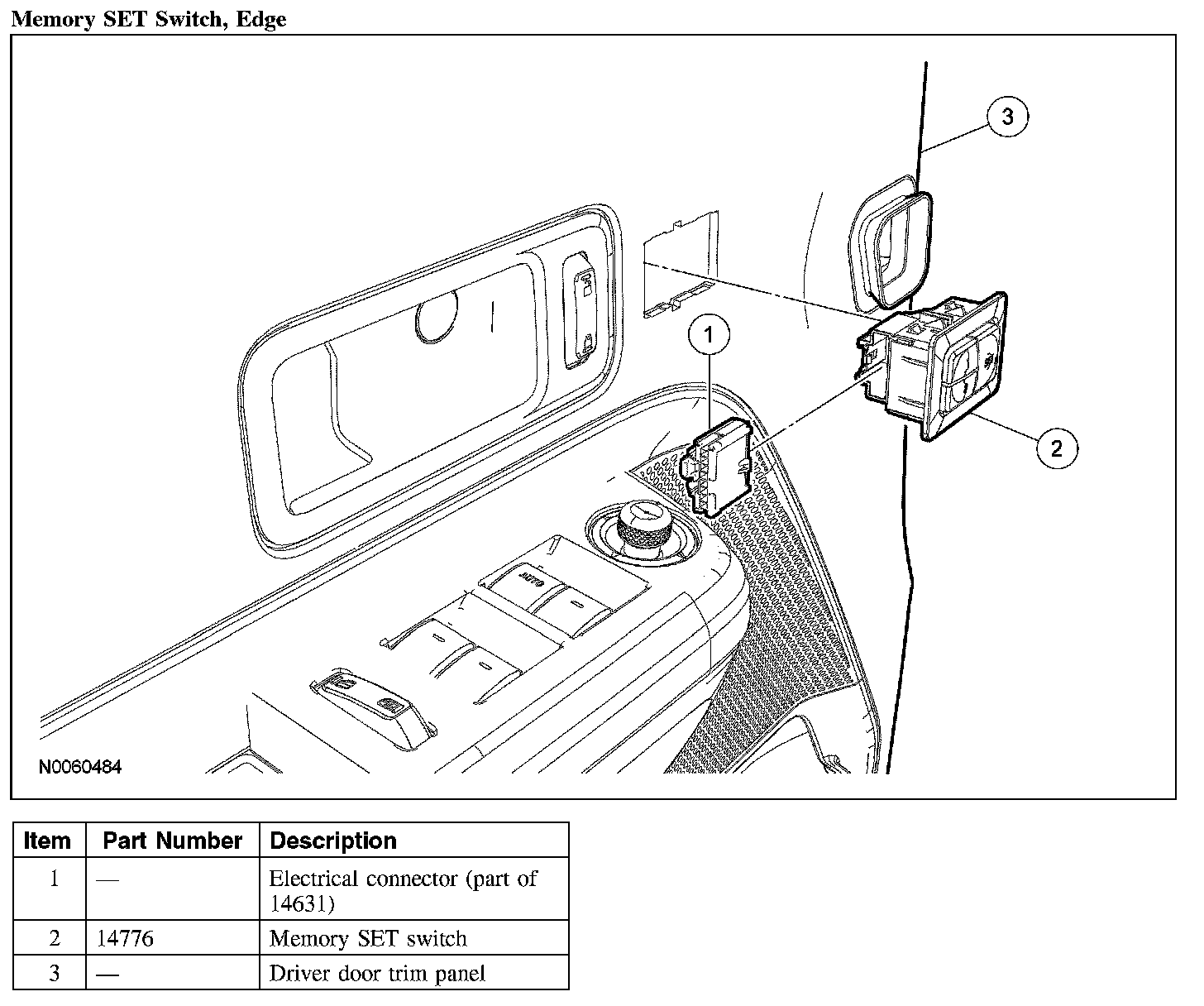

Memory SET Switch, Edge:

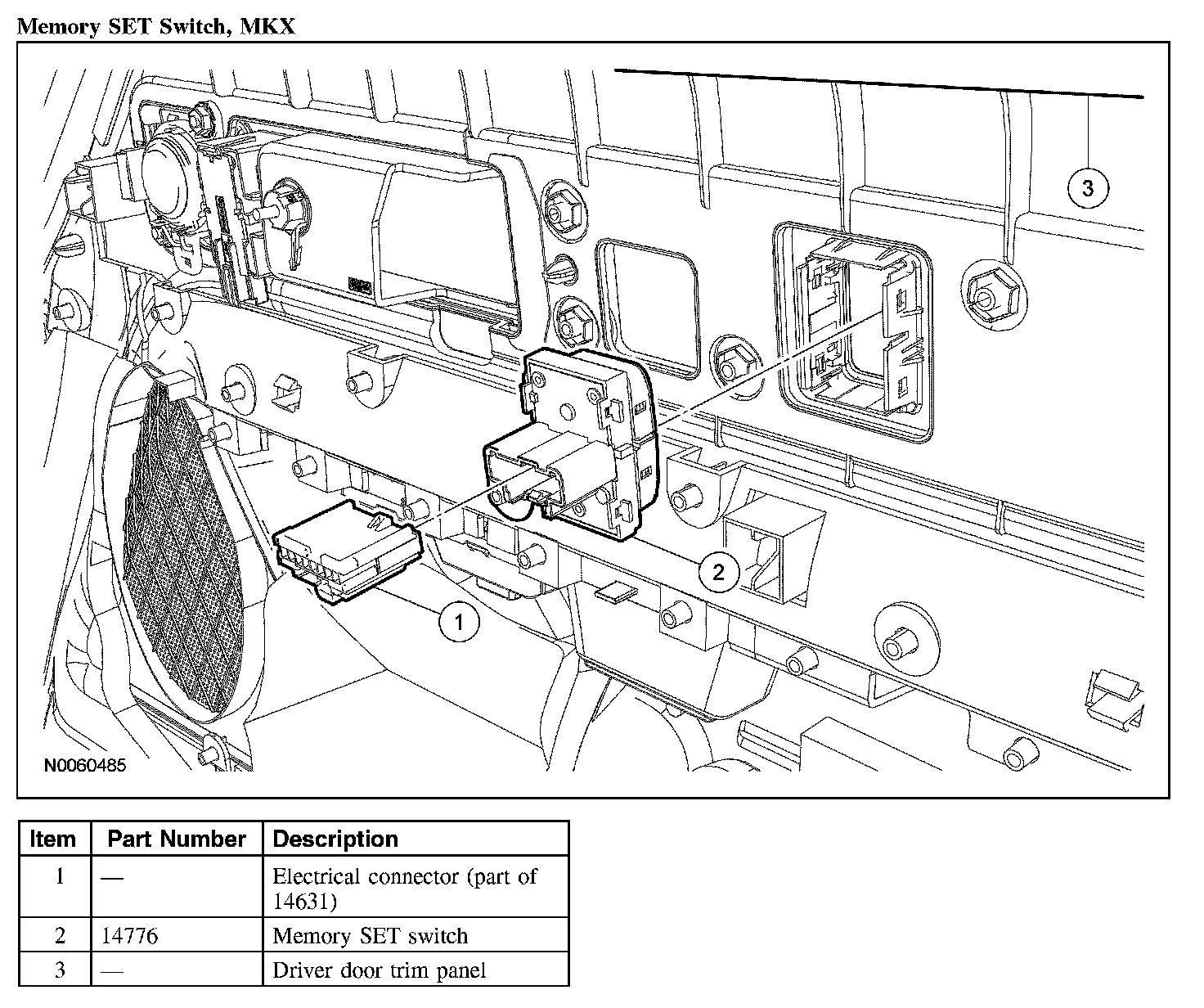

Memory SET Switch, MKX:






Removal and Installation

All vehicles
1. Remove the driver door trim panel.

Edge vehicles
2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch through the front of the door trim panel.

MKX vehicles
3. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch through the back of the door trim panel.

All vehicles
4. To install, reverse the removal procedure.
