ABS Sensor Block: Service and Repair

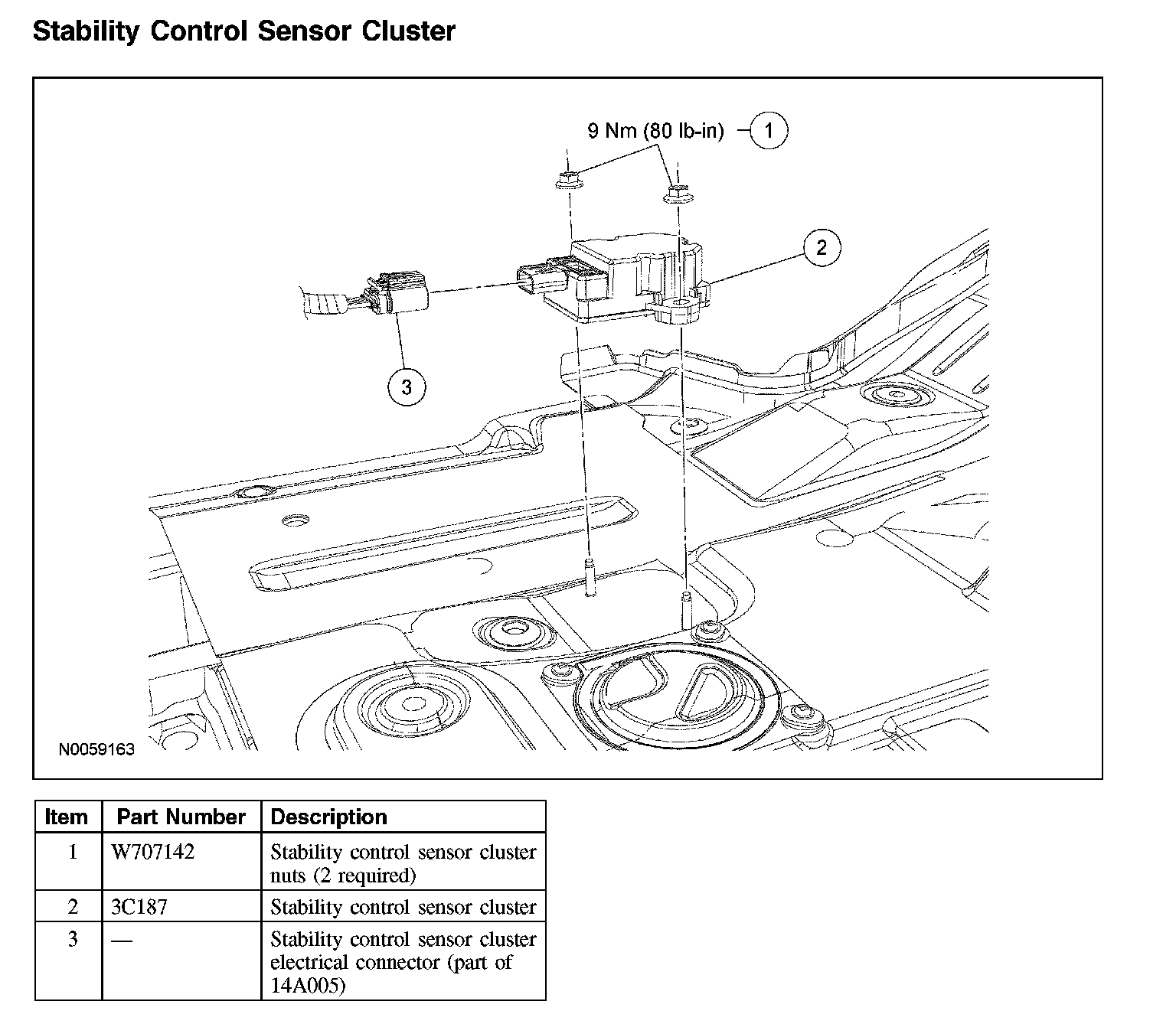

Stability Control Sensor Cluster

Stability Control Sensor Cluster:





Removal and Installation

NOTE: When installing a new stability control sensor cluster, the sensor cluster must be calibrated. Follow the scan tool directions for the calibration procedures.

1. NOTE: The sensor is located on the RH side of the vehicle, under the rear seat.

Remove the rear seat.
2. Remove the right rear scuff plate.
^ Position the carpet aside.
3. Disconnect the stability control sensor cluster electrical connector.
4. Remove the 2 stability control sensor cluster nuts and the stability control sensor cluster.
^ To install, tighten to 9 Nm (80 lb-in).
5. To install, reverse the removal procedure.
