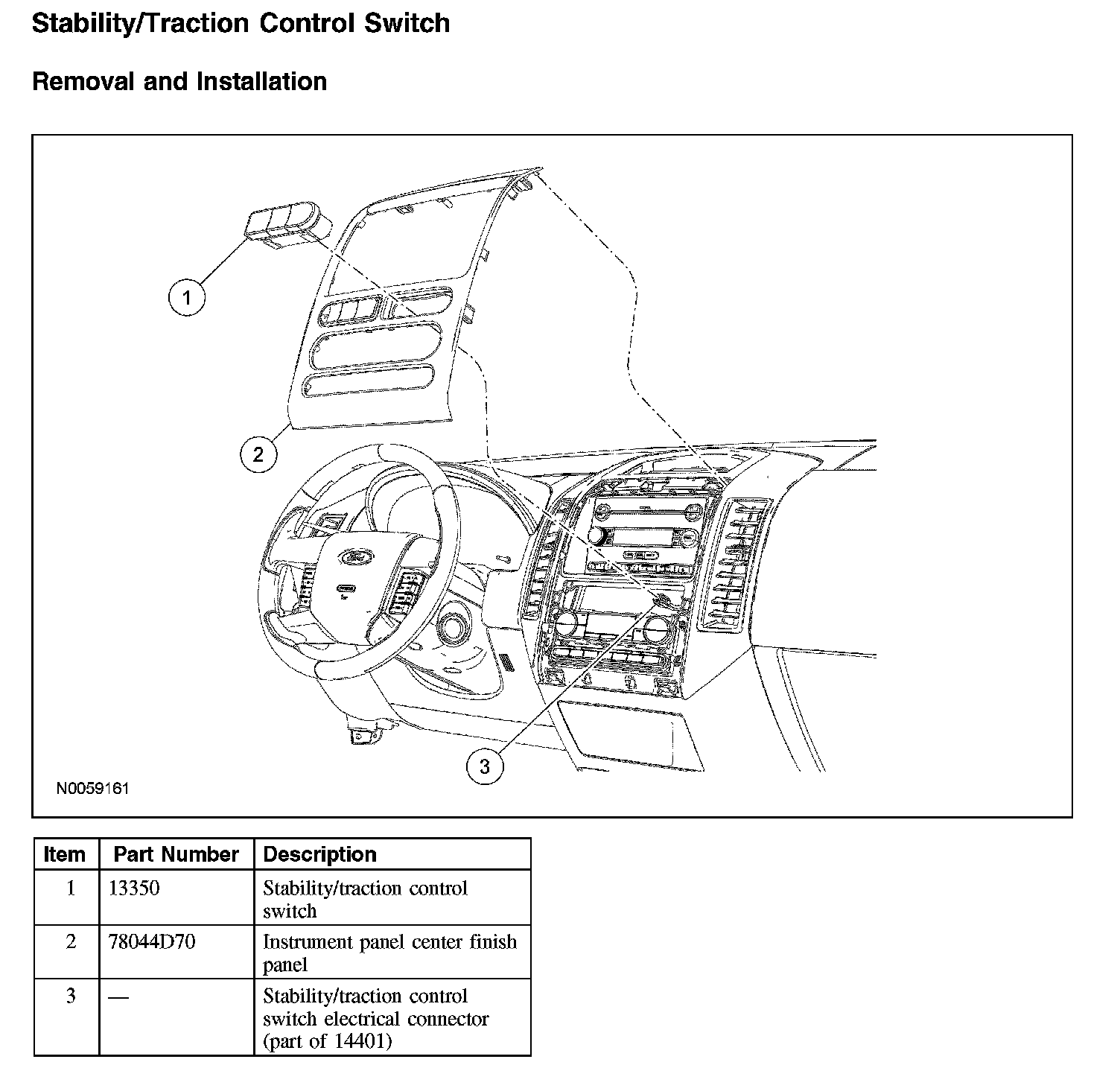

Traction Control Switch: Service and Repair
Stability/Traction Control SwitchRemoval and Installation 1.
Position the instrument panel center finish panel away from the instrument panel.
2.
Disconnect the stability/
traction control switch electrical connector.
3.

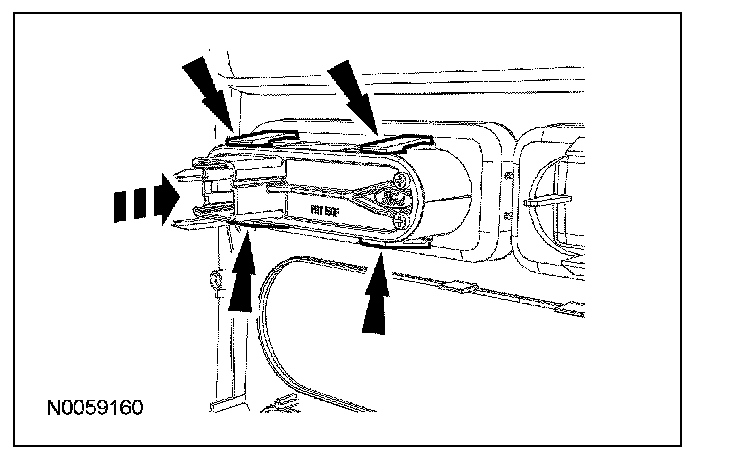

Depress the 4 tabs and remove the stability/
traction control switch from the instrument panel center finish panel.
4.
To install, reverse the removal procedure.
