Blower Motor Speed Control

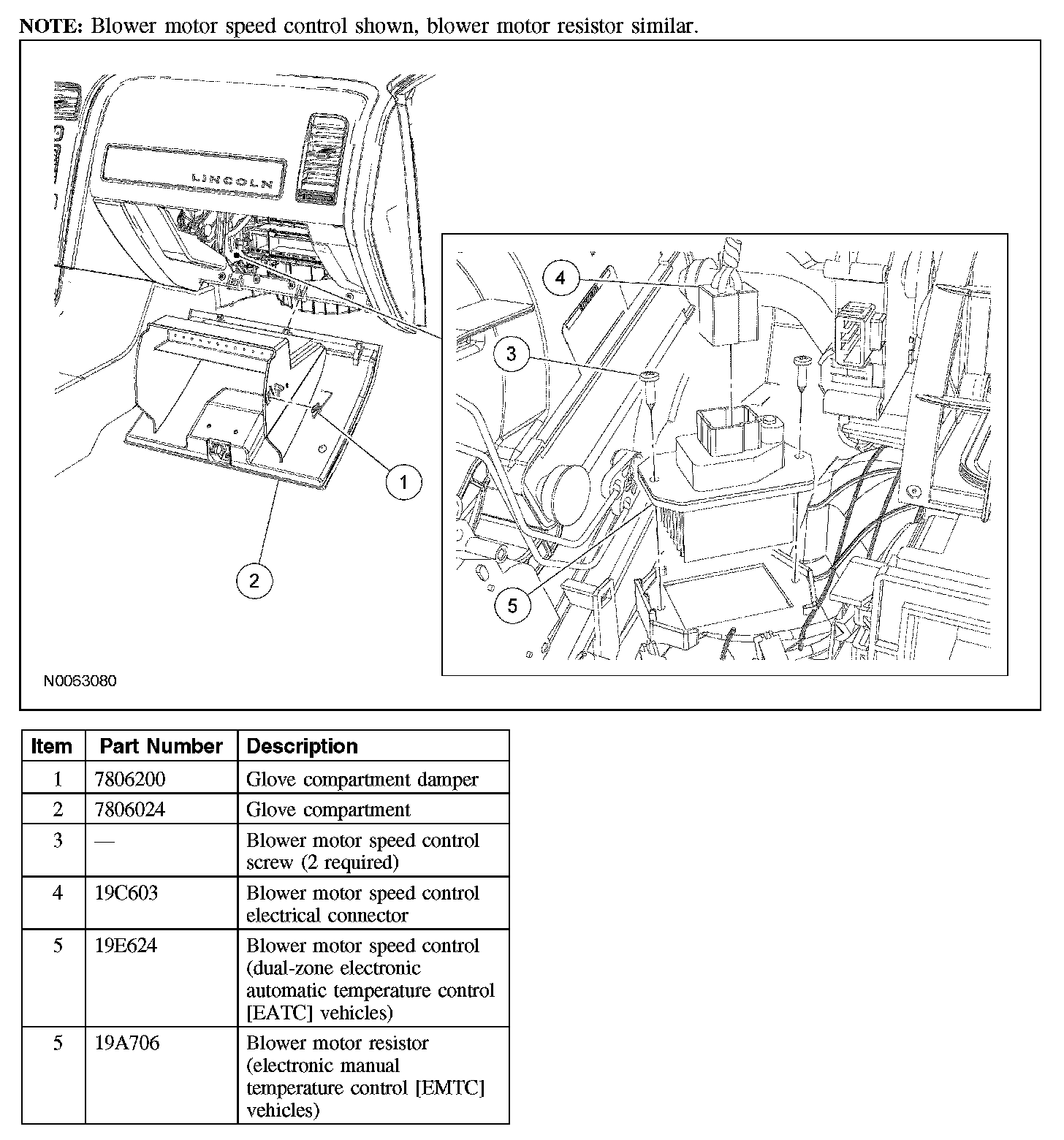

BLOWER MOTOR SPEED CONTROLRemoval and Installation 1.
Detach the glove compartment damper from the glove compartment.
2.
Remove the glove compartment.
3.
Disconnect the blower motor speed control electrical connector.
4.
Remove the 2 blower motor speed control screws.
5.
Remove the blower motor speed control.
6.
To install, reverse the removal procedure.
