Test C: The Restraints Control Module (RCM) Does Not Respond To The Scan Tool

PINPOINT TEST C: THE RESTRAINTS CONTROL MODULE (RCM) DOES NOT RESPOND TO THE SCAN TOOL

Normal Operation
The restraints control module (RCM) communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the network connection to the RCM. The RCM shares the HS-CAN with the PCM, the accessory protocol interface module (APIM), the ABS module, the occupant classification system module (OCSM), the 4X4 control module (if equipped), the headlamp control module (HCM) (if equipped), the steering angle sensor module (SASM) (if equipped) and the instrument cluster (IC). Voltage for the RCM is provided by circuit CBP46 (WH/BU), and the RCM is case grounded.

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Case ground open
- RCM

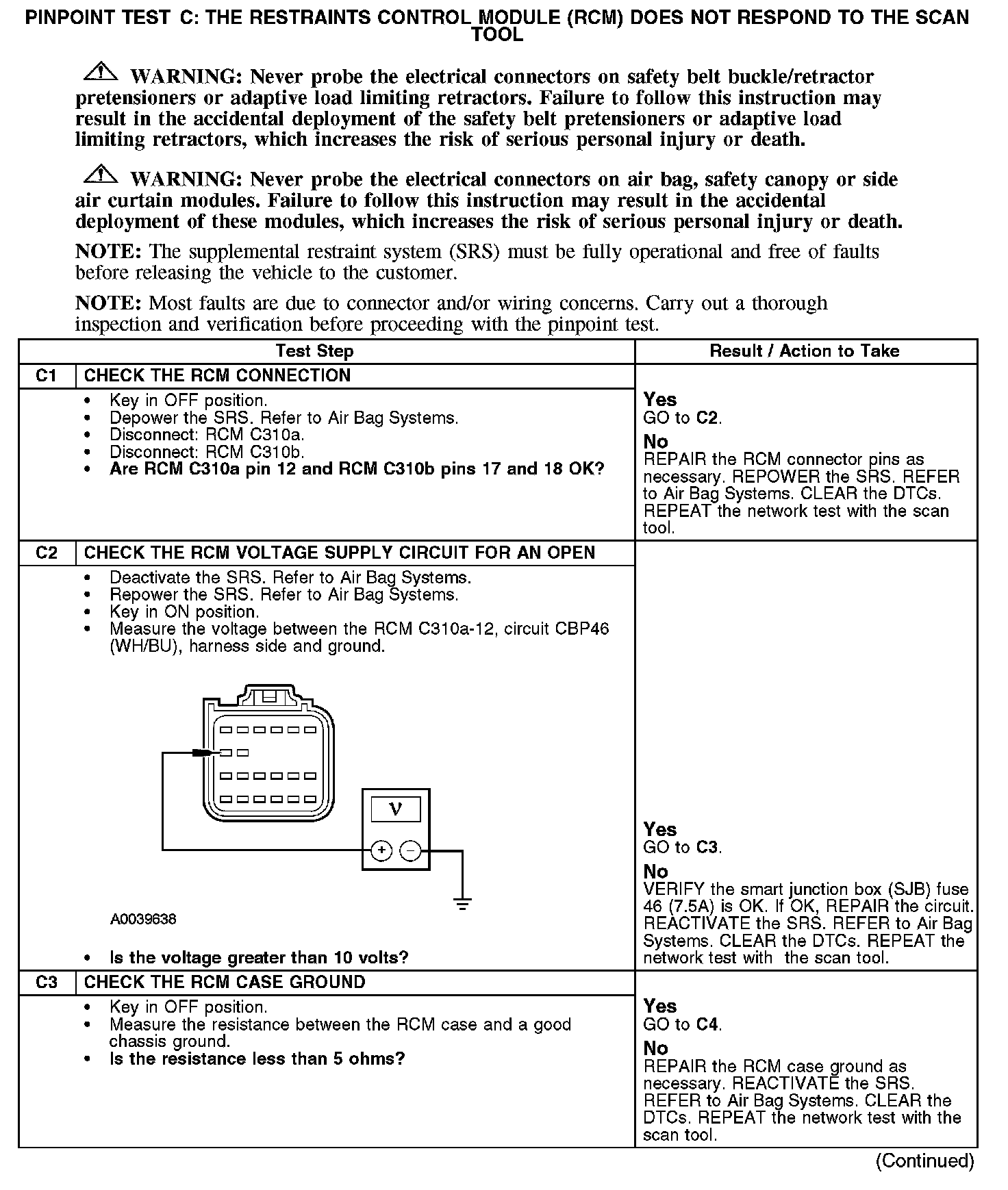

C1-C3:

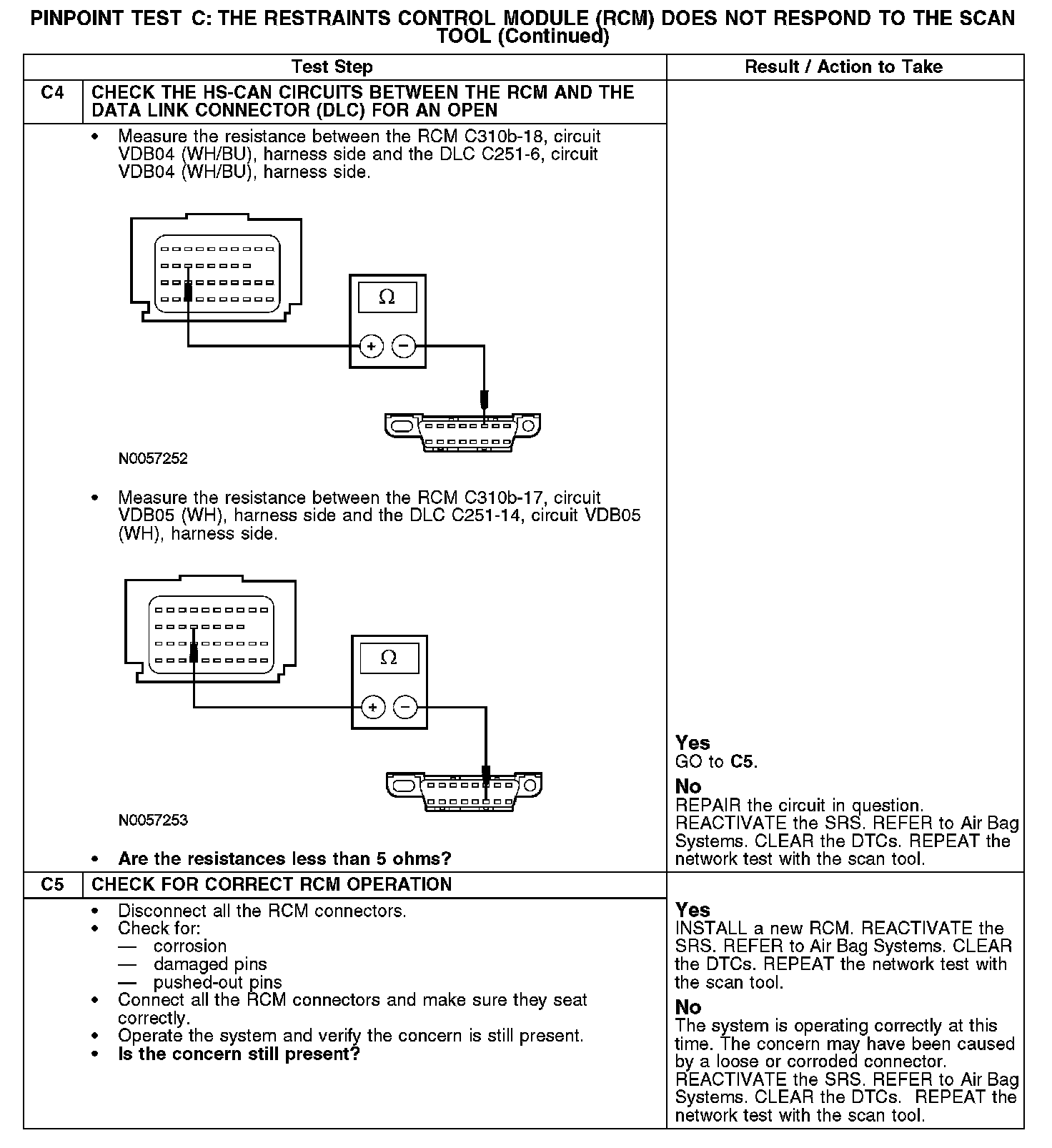

C4-C5:
