Parking Assist Control Module: Service and Repair

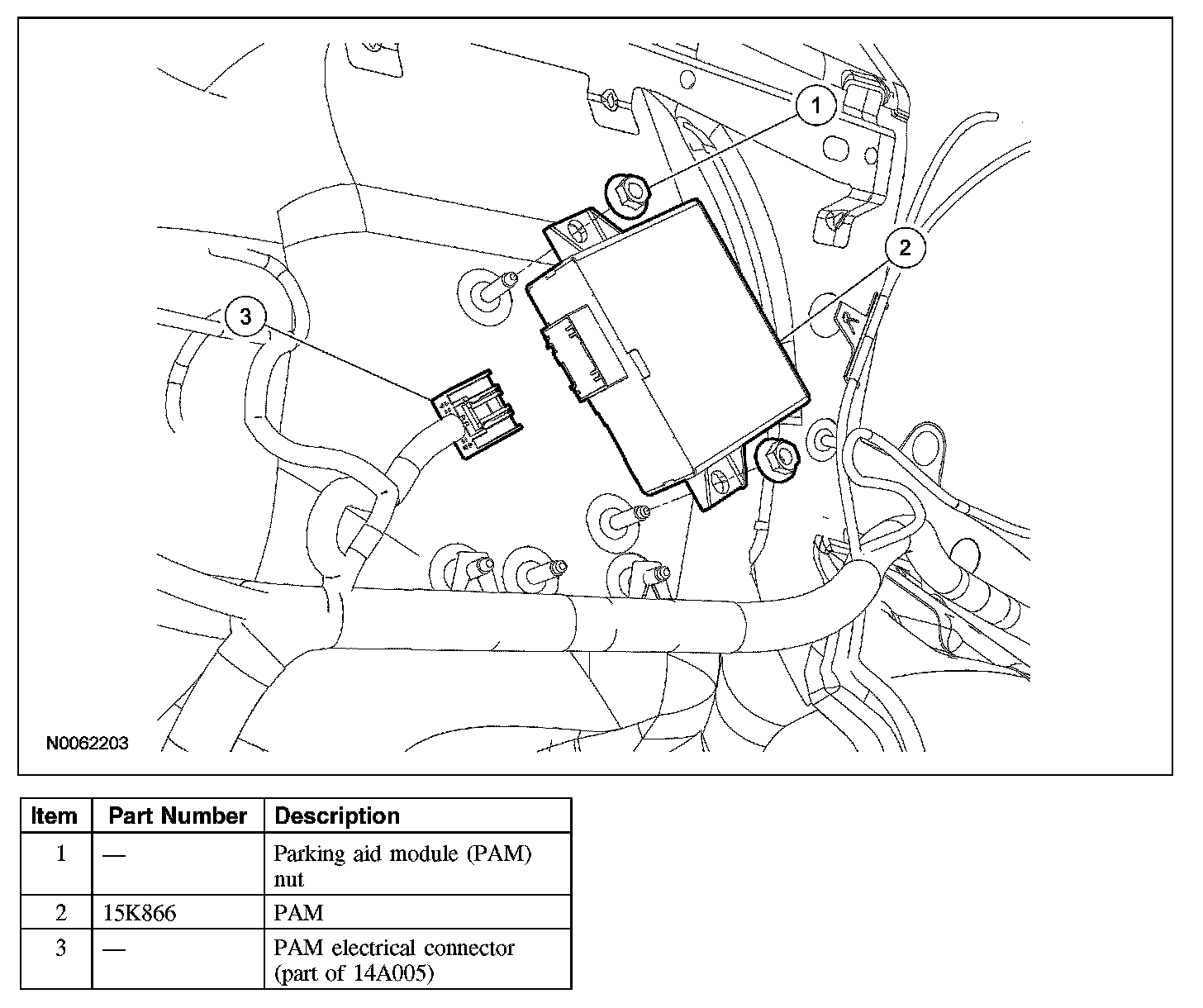

PARKING AID MODULERemoval and InstallationCAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result. 1.
Remove the LH rear quarter trim panel.
2.
Remove the 2 nuts and the parking aid module (PAM).
3.
Disconnect the PAM electrical connector.
4.
To install, reverse the removal procedure.
