Air Register: Service and Repair

REGISTER







Removal and Installation

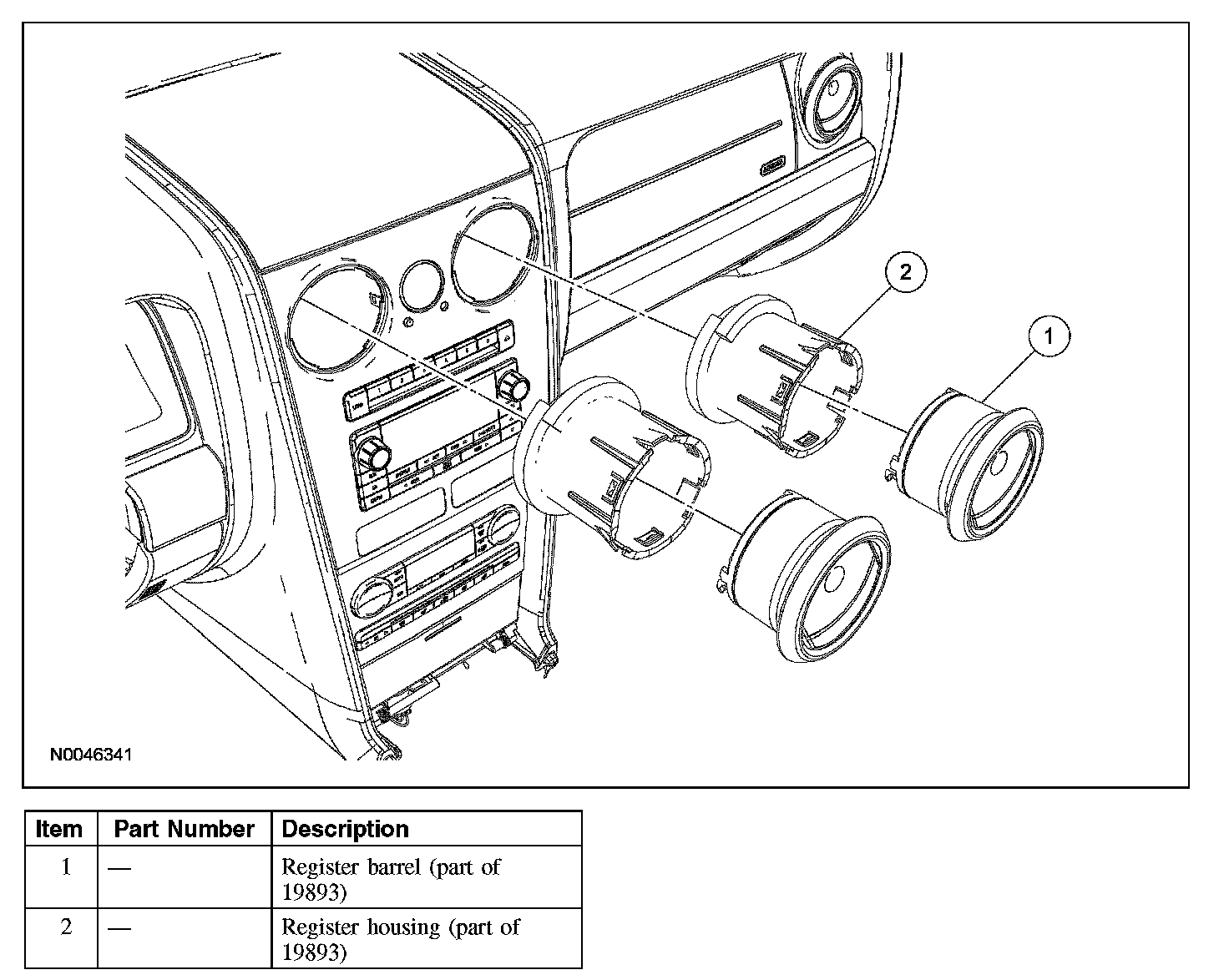

NOTE: Center registers shown, outer registers similar.

1. CAUTION: To avoid damage to the instrument panel registers, rotate either left or right and pull straight out. Do not wiggle the register from side to side to free it.

Open the register barrel vanes, grasp the inside of the register barrel and pull the register barrel straight out.

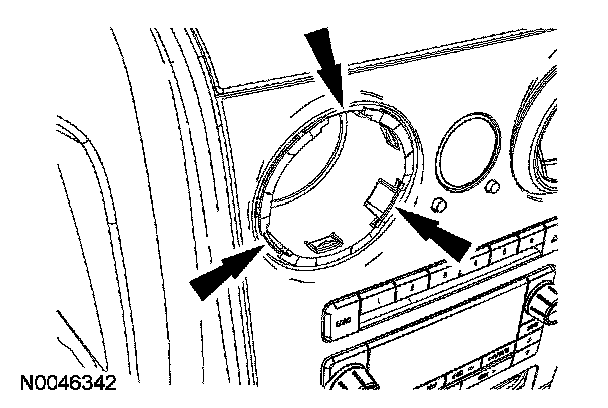

2. Release the 3 tabs and remove the register housing.







3. To install, reverse the removal procedure.
