Front

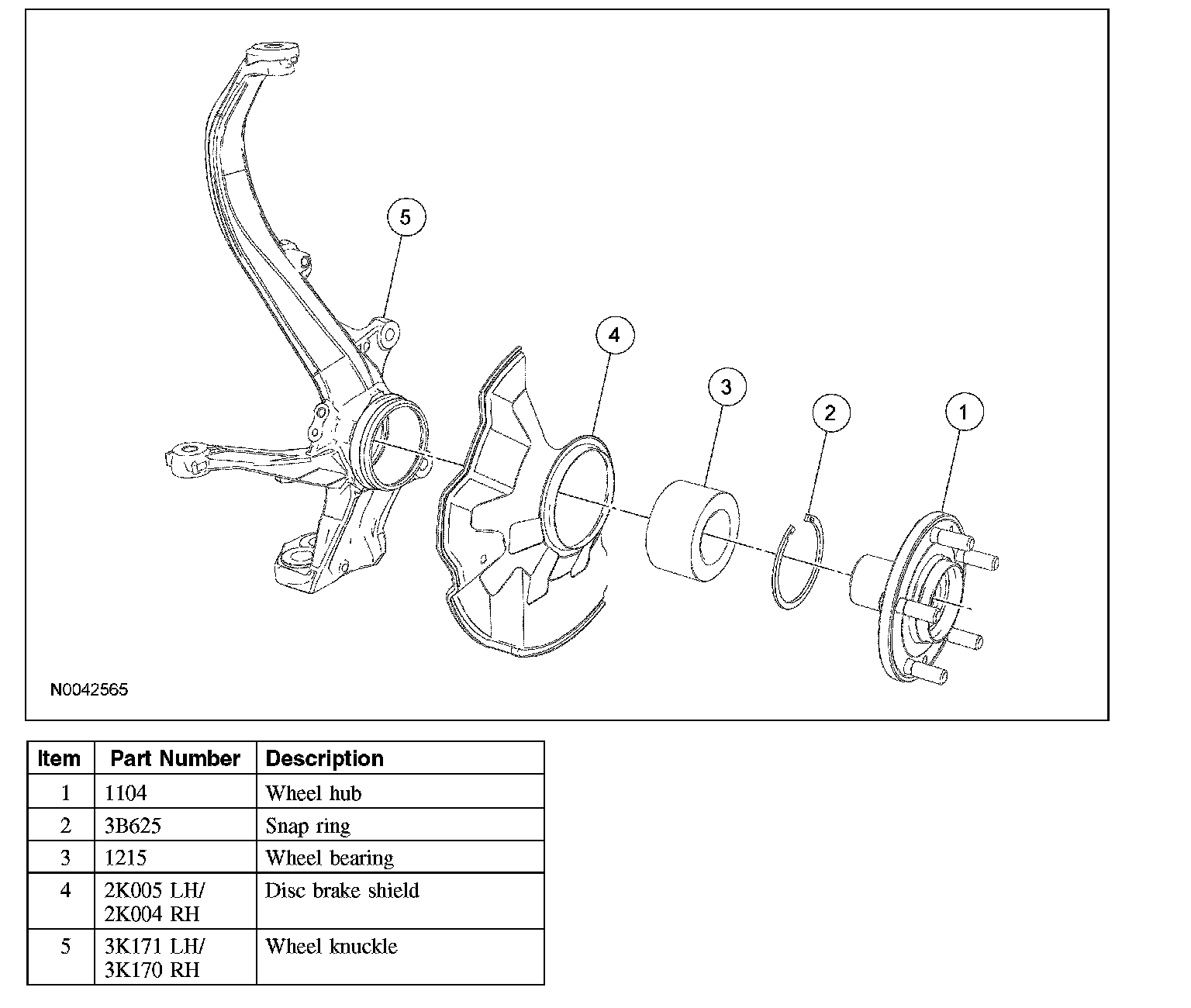

Wheel Bearing and Wheel Hub

Special Tool(s):

Removal

NOTE: If removing the wheel hub, a new wheel bearing must be installed.

1. Remove the wheel knuckle.

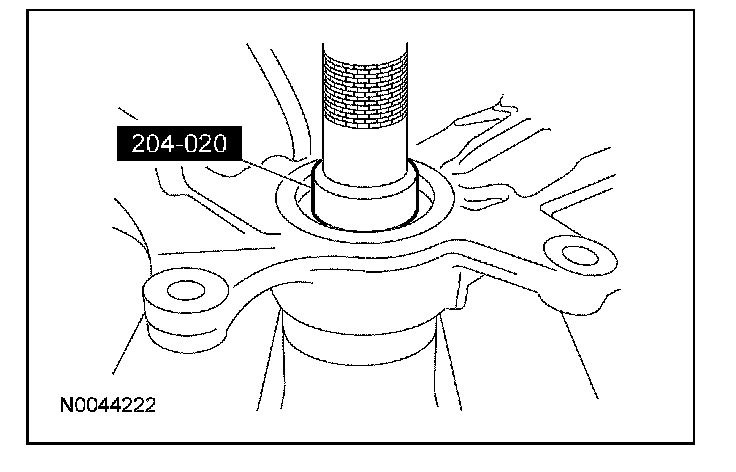

2. Using the special tool, press the wheel hub from the wheel bearing.





3. NOTE: This step may not be necessary if the inner wheel bearing race remains on the wheel hub after removing the wheel hub.

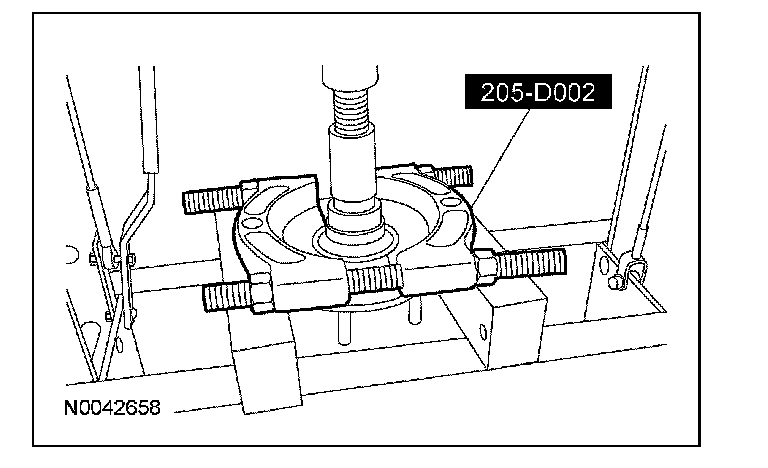

If necessary, using the special tool, press the inner wheel bearing race from the wheel hub.





4. Remove the snap ring.

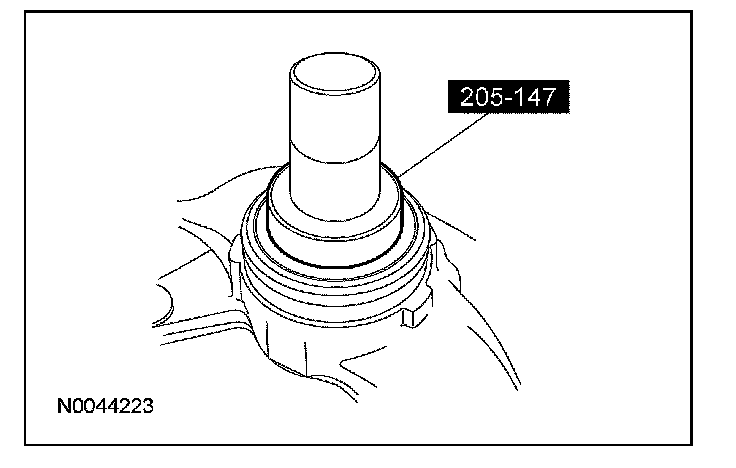

5. Using the special tool, press the wheel bearing from the wheel knuckle.





Installation

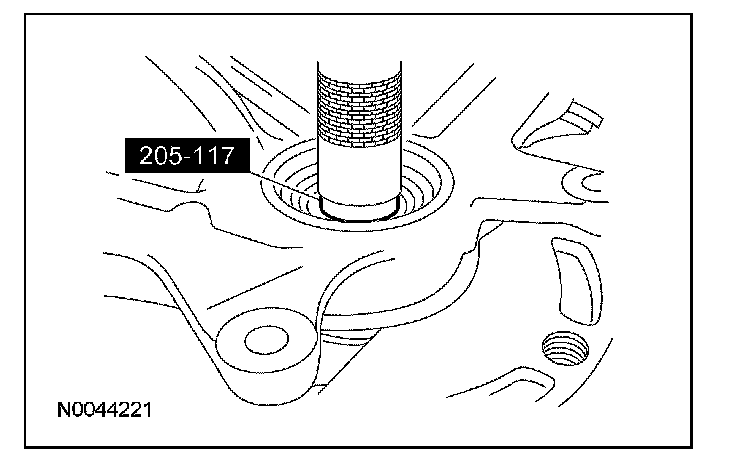

1. Using the special tools, press the wheel bearing into the wheel knuckle.





2. Install the snap ring.

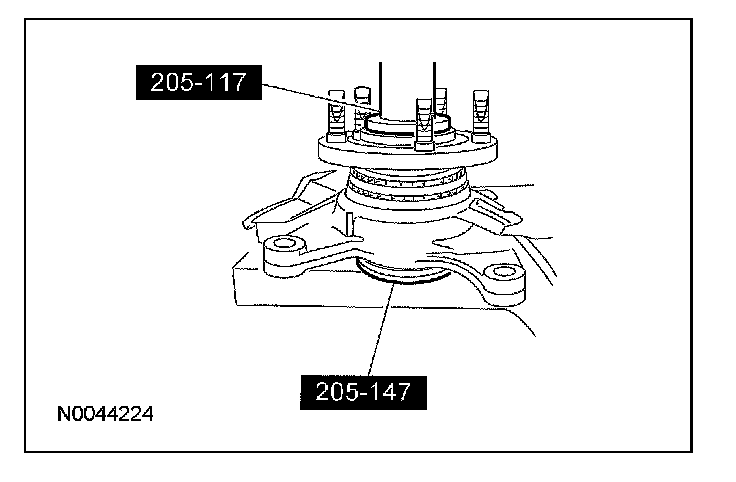

3. Using the special tools, press the wheel hub into the wheel bearing.





4. Install the wheel knuckle.
