Power Running Board (PRB) Bracket

POWER RUNNING BOARD (PRB) BRACKET







Removal and Installation

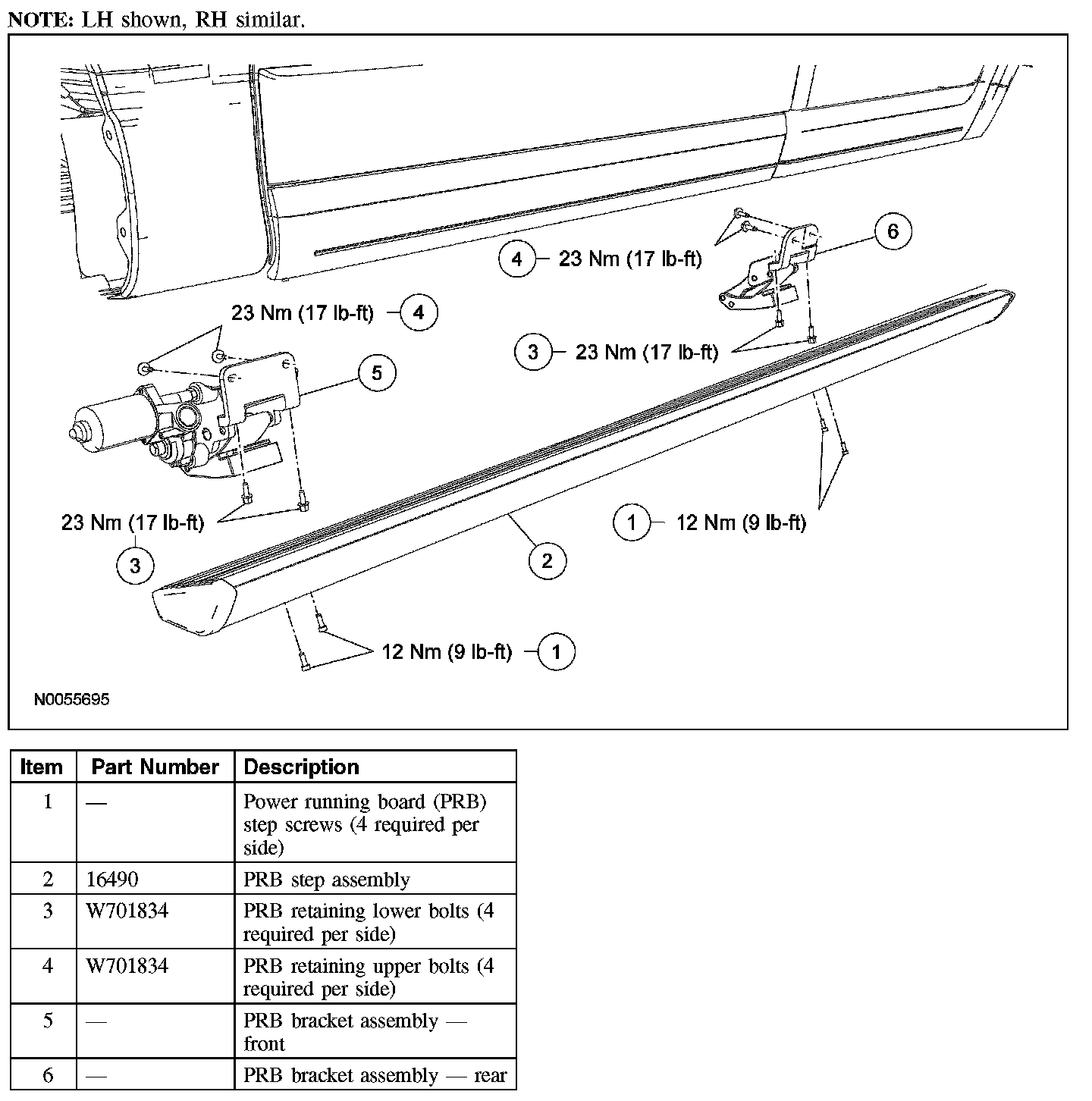

All brackets
1. Remove the power running board (PRB) step.

Front bracket

2. NOTE: The PRB motor is part of the front bracket assembly.

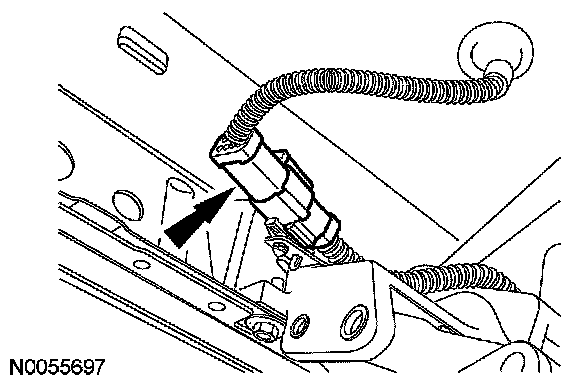

Disconnect the PRB motor electrical connector.







3. NOTE: Only 3 bolts shown.

Remove the PRB front bracket 2 upper and 2 lower bolts and the front bracket assembly.
- To install, tighten to 23 Nm (17 lb-ft).







Rear bracket
4. Remove the PRB rear bracket 2 upper and 2 lower bolts and the rear bracket assembly.
- To install, tighten to 23 Nm (17 lb-ft).







All brackets
5. To install, reverse the removal procedure.
