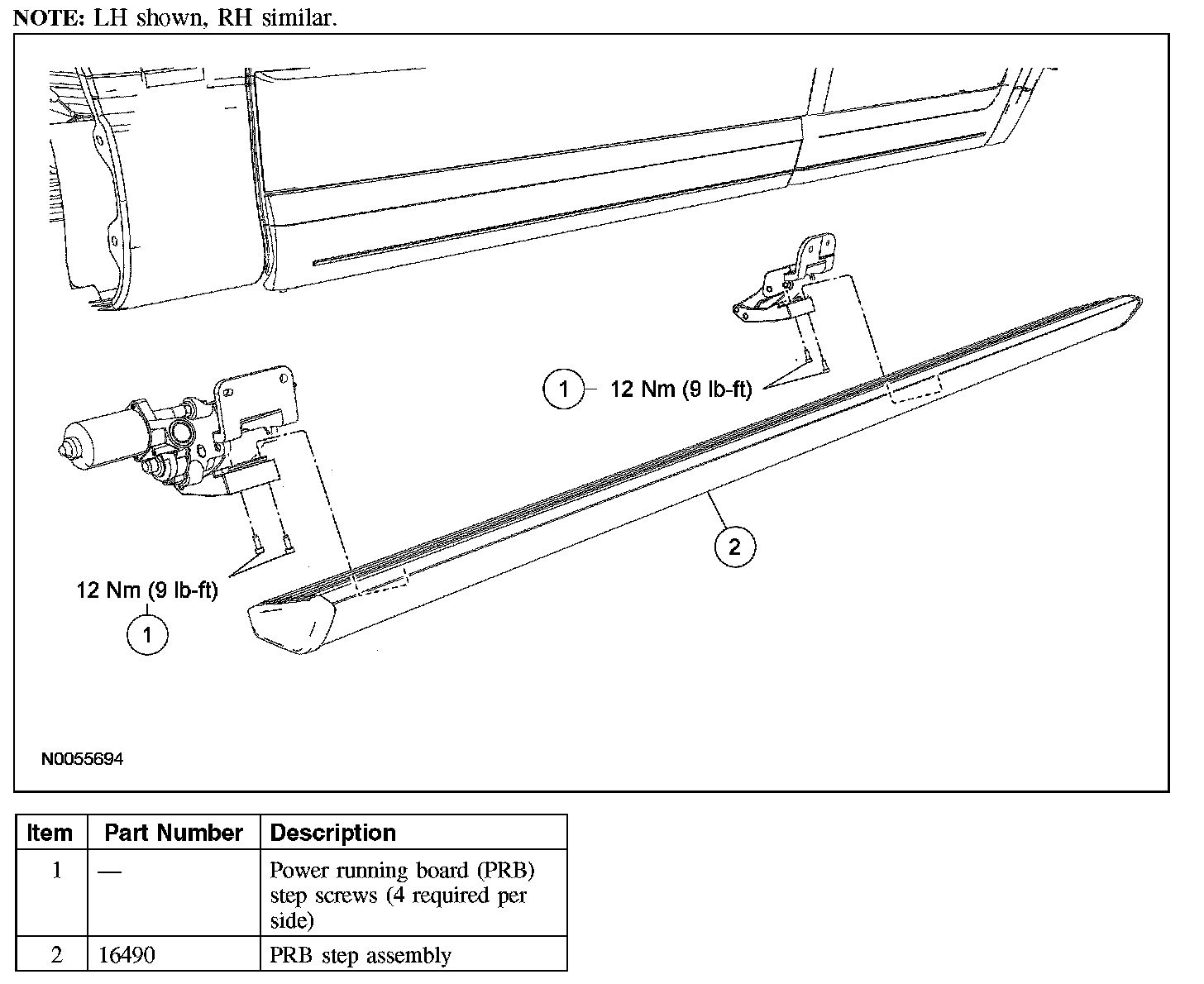

Power Running Board (PRB) Step
POWER RUNNING BOARD (PRB) STEPRemoval and Installation 1.
Extend the power running board (PRB).
2.

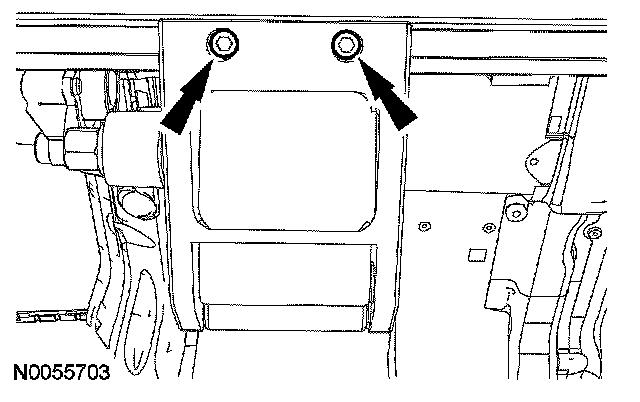

CAUTION: An assistant is required to hold the power running board (PRB) before removing the bracket-to-step screws. Remove the 2 front and 2 rear bracket-to-step screws and the PRB step.
-
To install, tighten to
12 Nm (9 lb-ft).
3.
To install, reverse the removal procedure.
