Front Fender: Service and Repair

FENDER

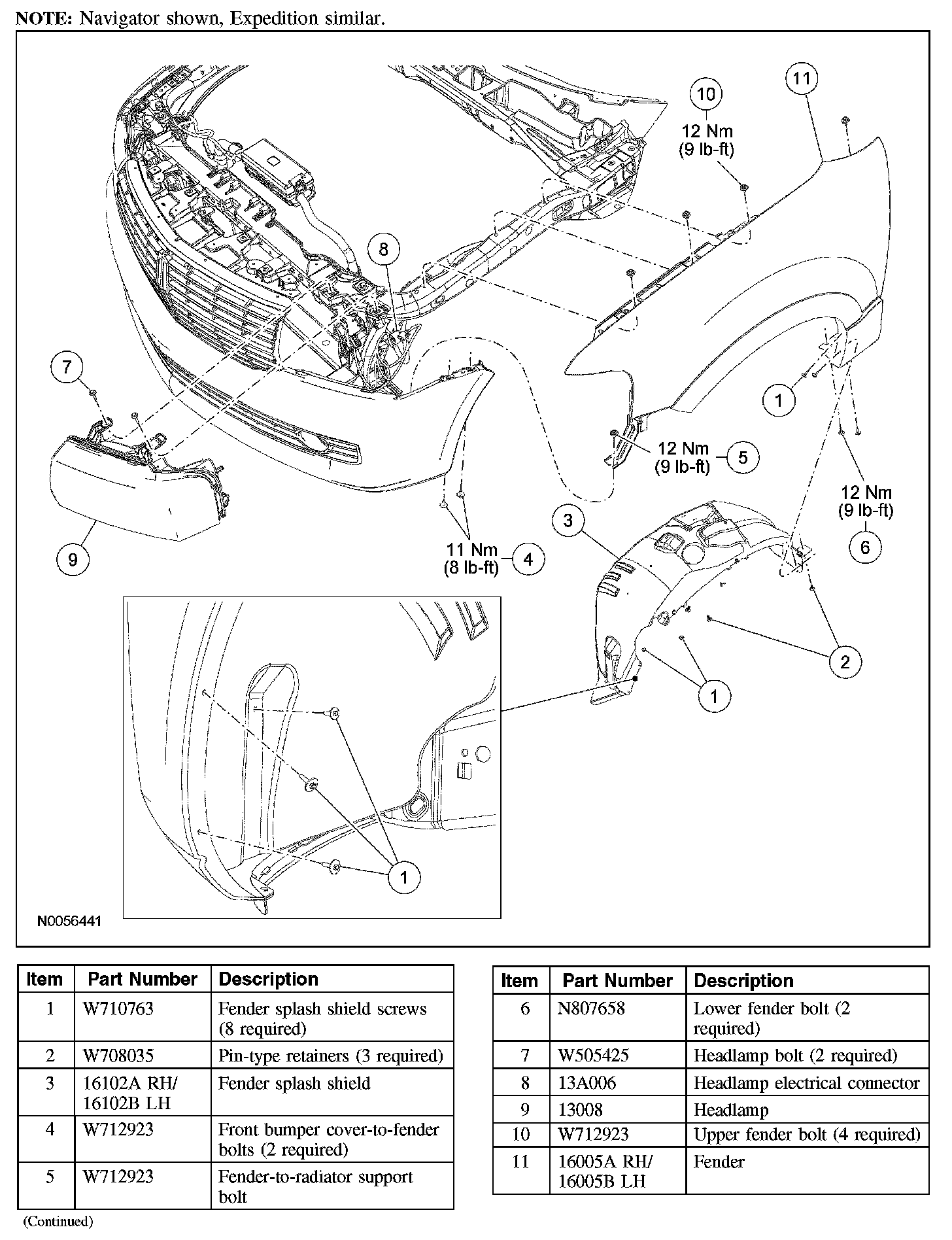

Exploded View







Removal and Installation
1. Remove the fender splash shield.
2. Remove the 2 front bumper cover-to-fender bolts.
- To install, tighten to 11 Nm (8 lb-ft).

3. Remove the fender-to-radiator support bolt.
- To install, tighten to 12 Nm (9 lb-ft).

4. Remove the 2 lower fender bolts.
- To install, tighten to 12 Nm (9 lb-ft).

5. Remove the headlamp.
- Remove the 2 headlamp bolts.
- Disconnect the electrical connectors.

6. Remove the cowl panel grille.
7. Remove the 4 upper fender bolts and remove the fender.
- To install, tighten to 12 Nm (9 lb-ft).

8. To install, reverse the removal procedure.
