Grille: Service and Repair

RADIATOR GRILLE

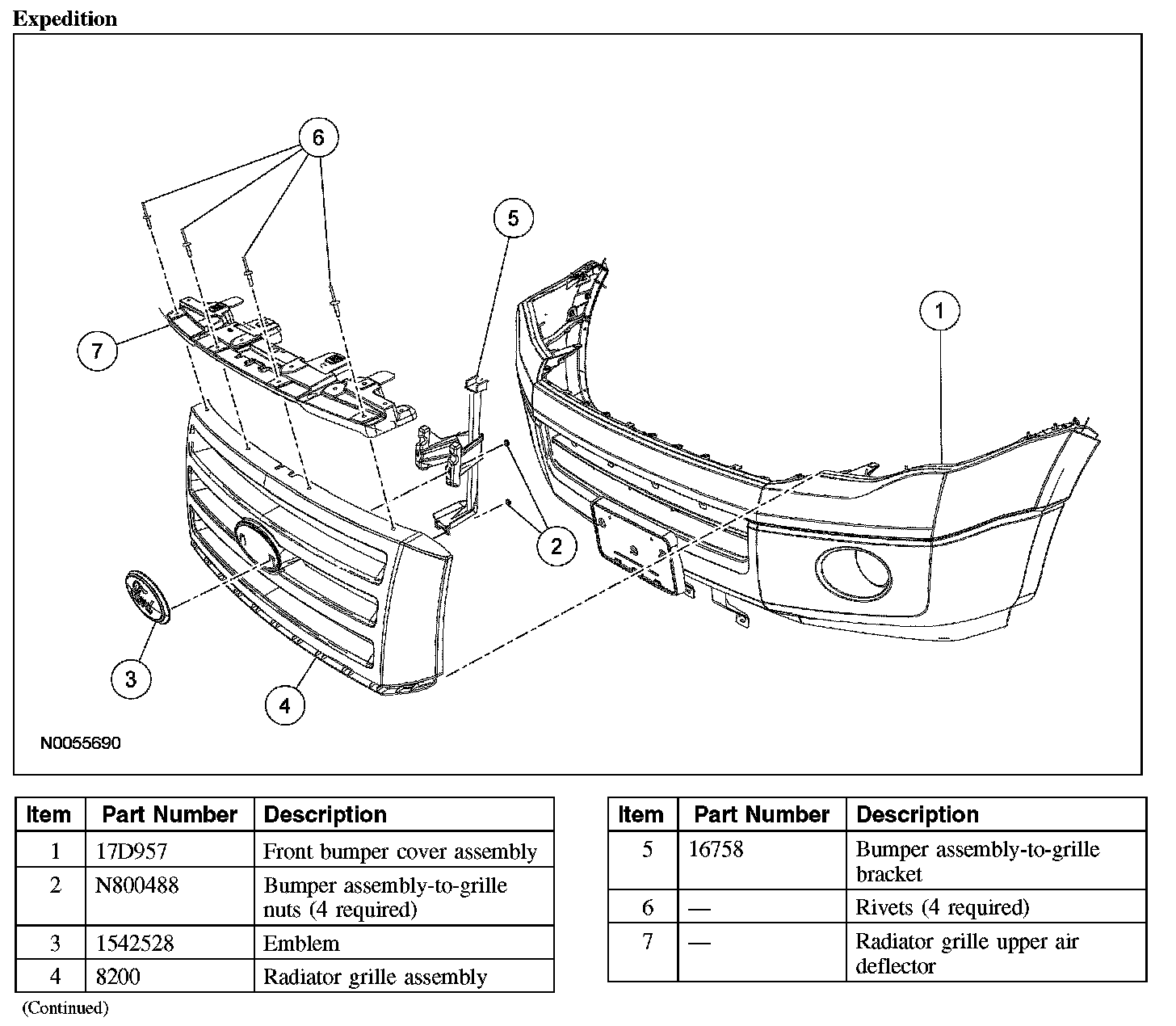

Expedition:

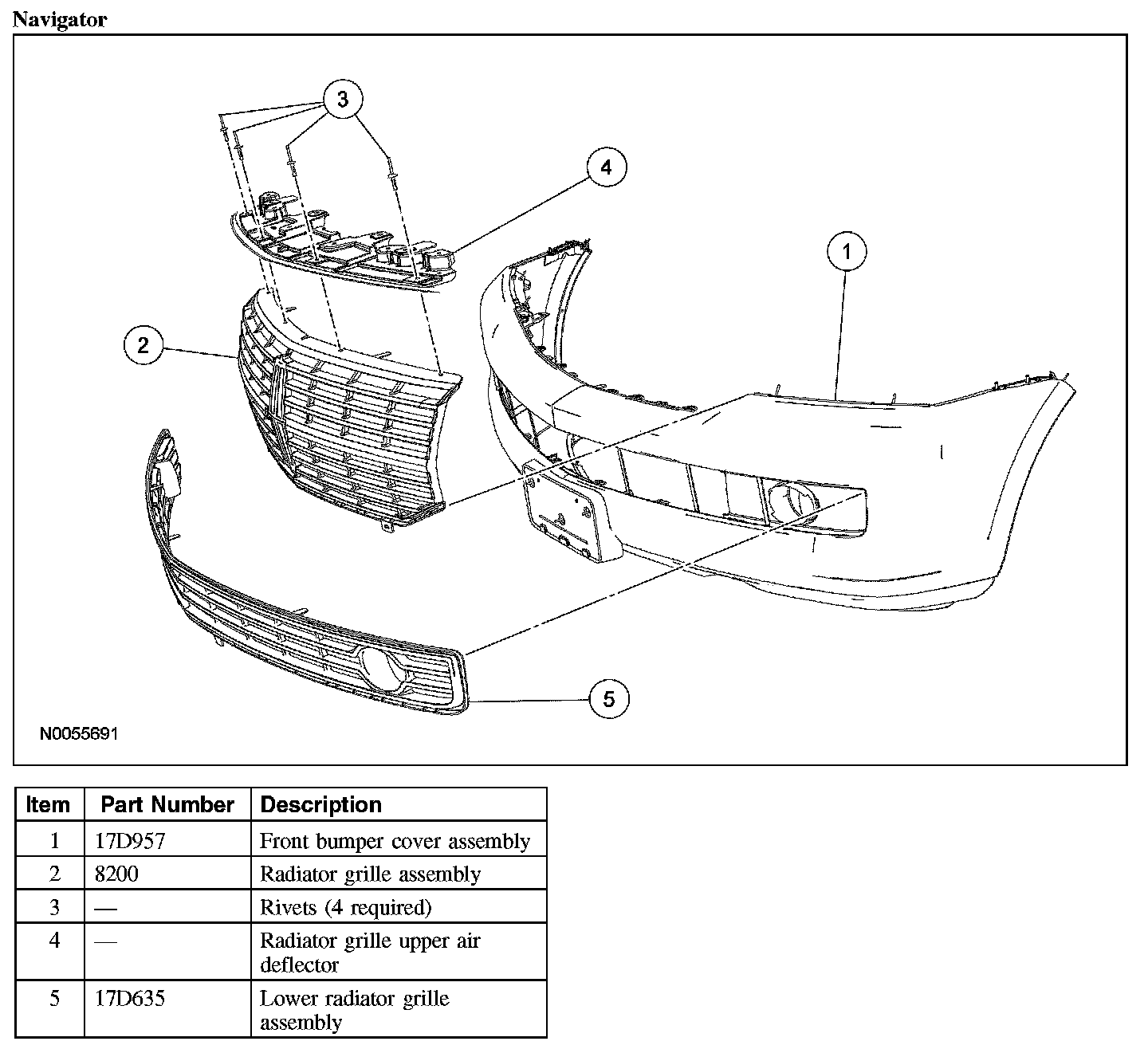

Navigator:

Removal and Installation

All vehicles
1. Remove the front bumper cover.

Expedition only
2. Remove the 4 bumper assembly-to-grille bracket retainer nuts and the bumper assembly-to-grille bracket.

All vehicles

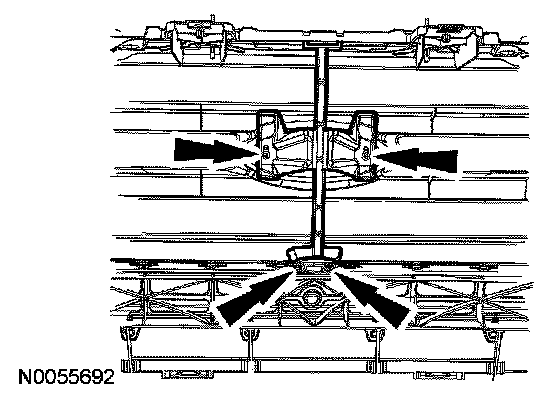

3. NOTE: Expedition shown, Navigator similar.

Remove the clips and remove the front grille.

4. To install, reverse the removal procedure.
