Auxiliary Climate Control Assembly

AUXILIARY CLIMATE CONTROL ASSEMBLY

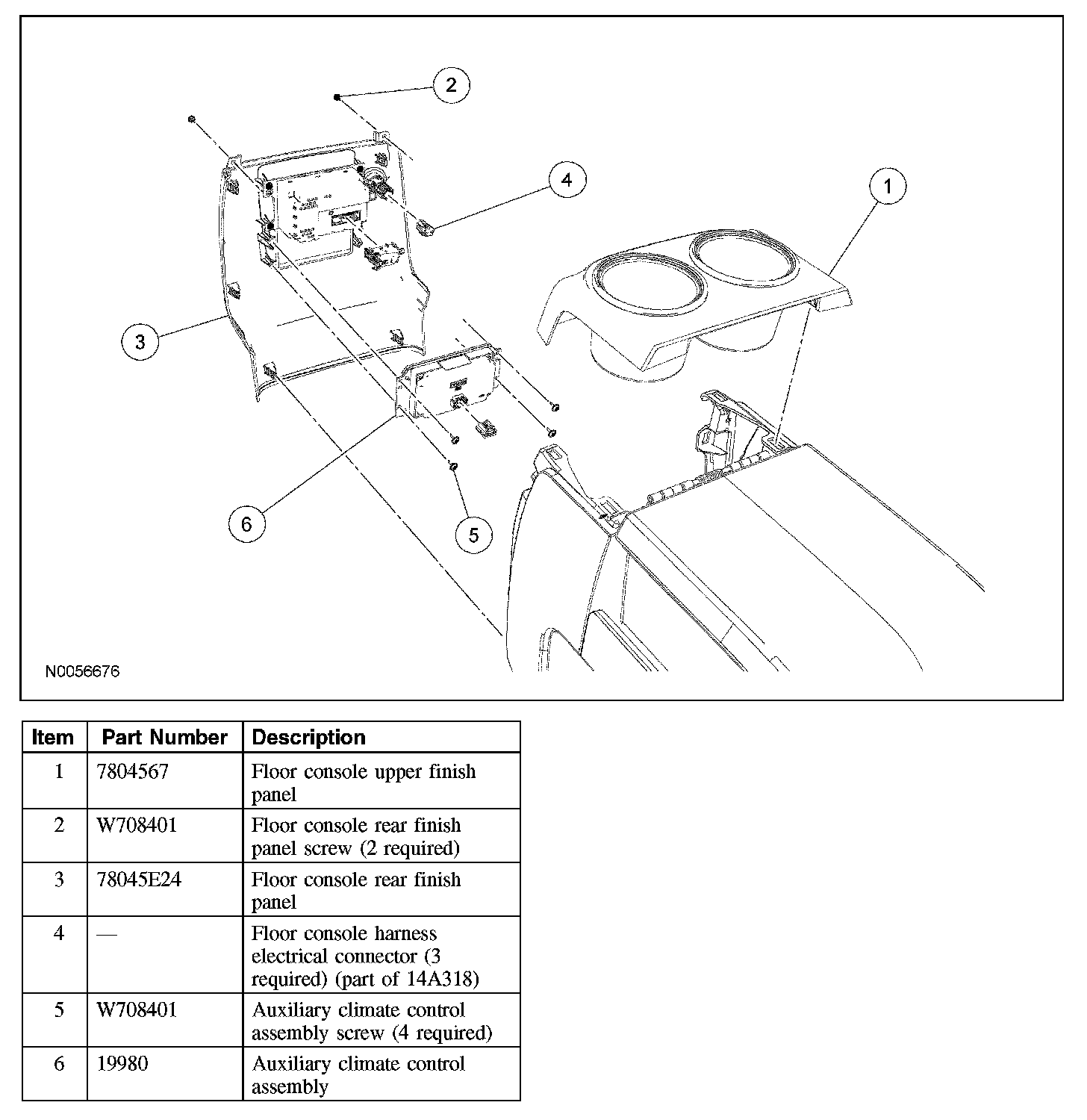

Removal and Installation
1. Remove the floor console upper finish panel.
2. Remove the 2 floor console rear finish panel screws.
3. Disengage the 6 clips and remove the floor console rear finish panel.
- Disconnect the 3 floor console harness electrical connectors.

4. Remove the 4 auxiliary climate control assembly screws.
5. Remove the auxiliary climate control assembly.
6. To install, reverse the removal procedure.
