Map Light: Service and Repair

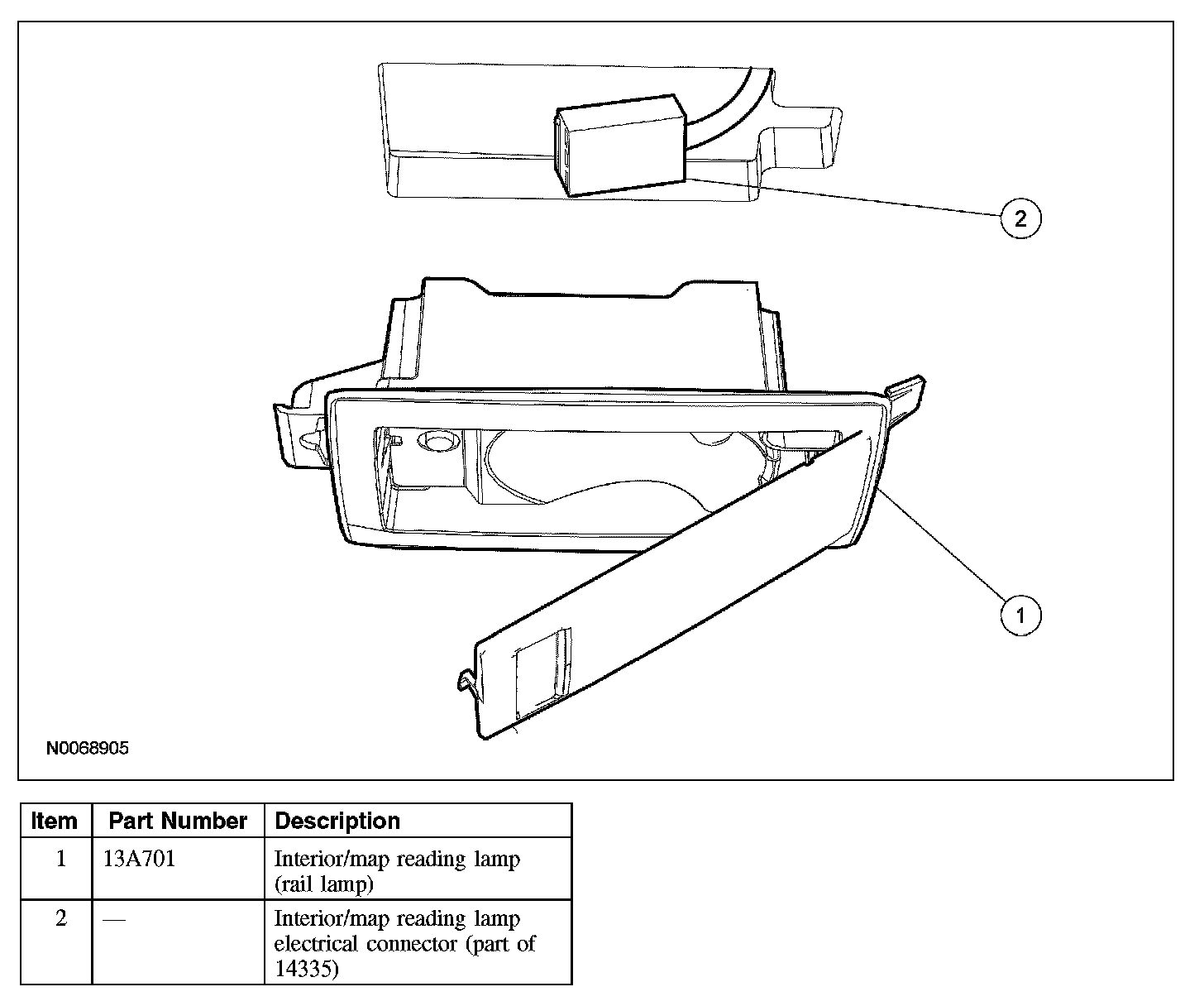

INTERIOR/MAP READING LAMPRemoval and Installation 1.
Release the tab on the front side of the lens.
2.
Tilt the front of the lens down.
3.
Remove the lamp.
-
Disconnect the electrical connector.
4.
To install, reverse the removal procedure.
