Splice Locations

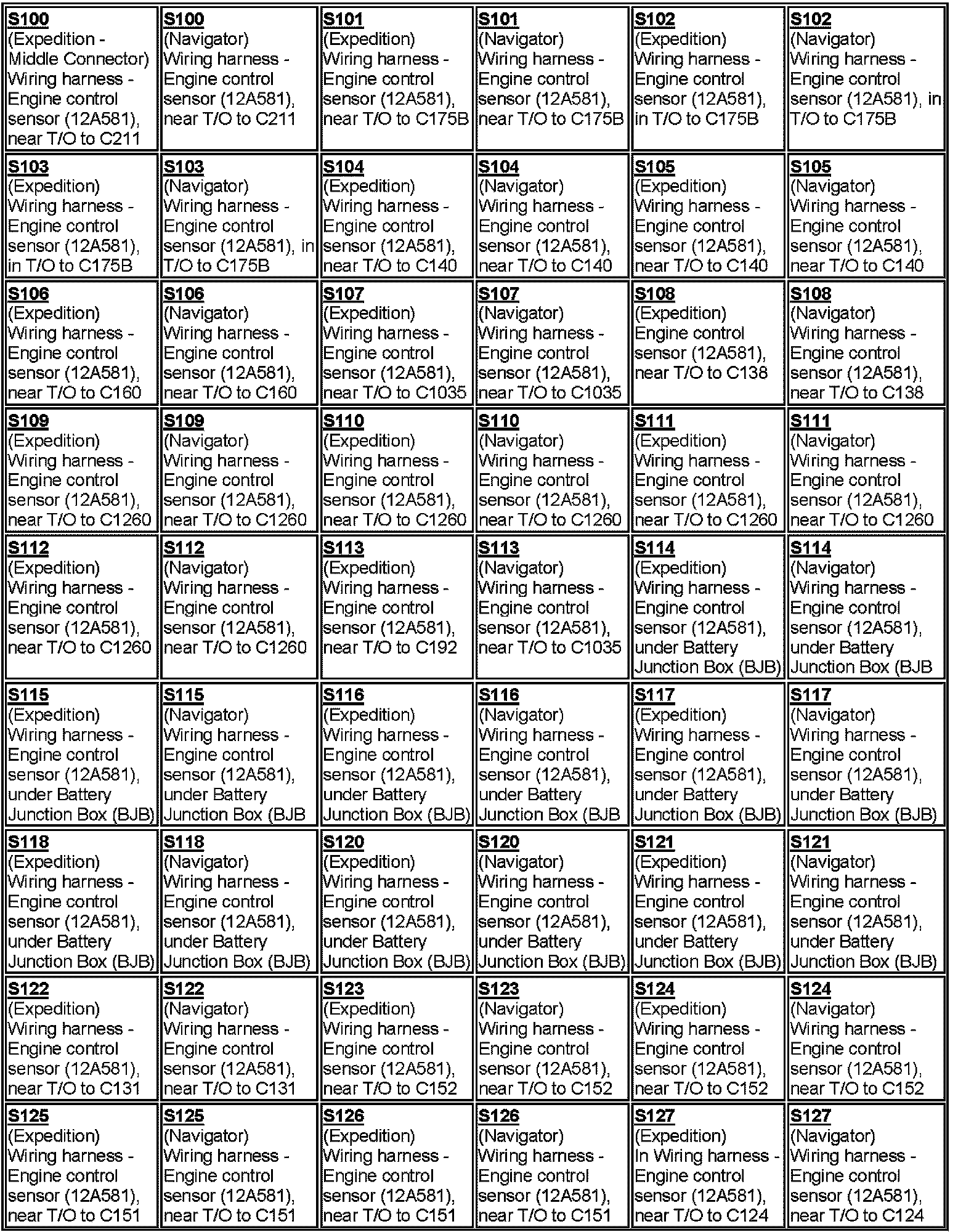

S100-S127:

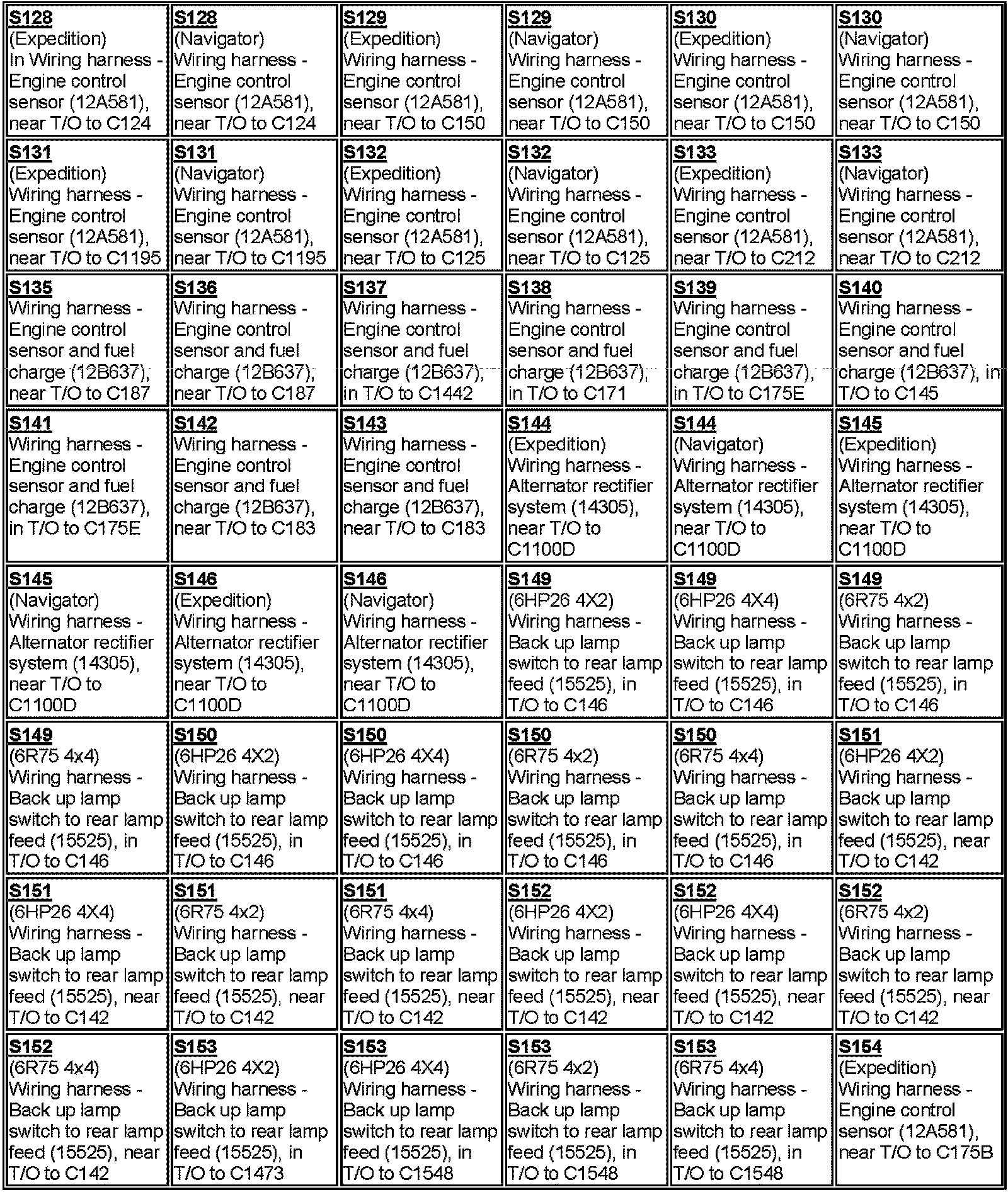

S128-S154:

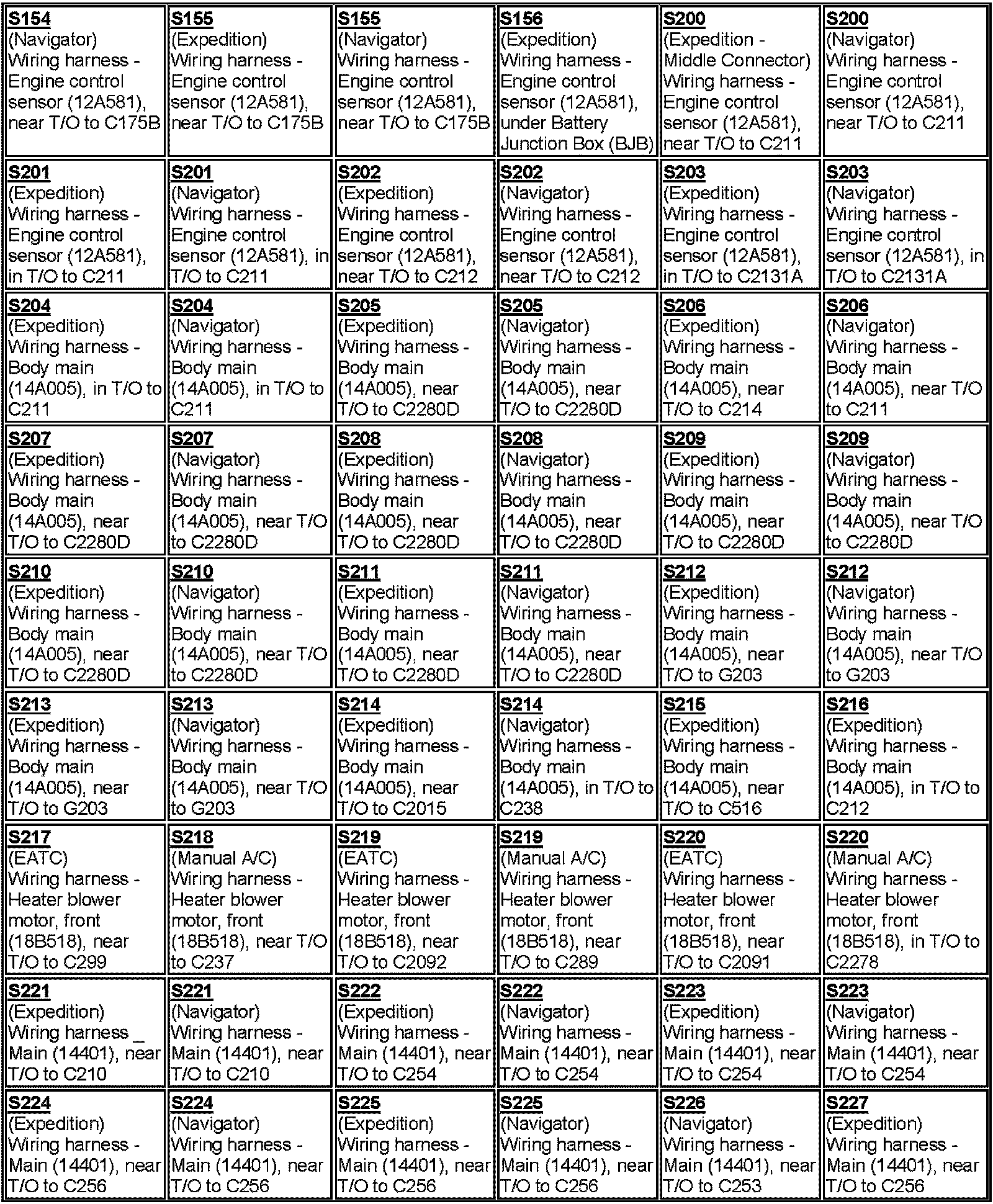

S154-S227:

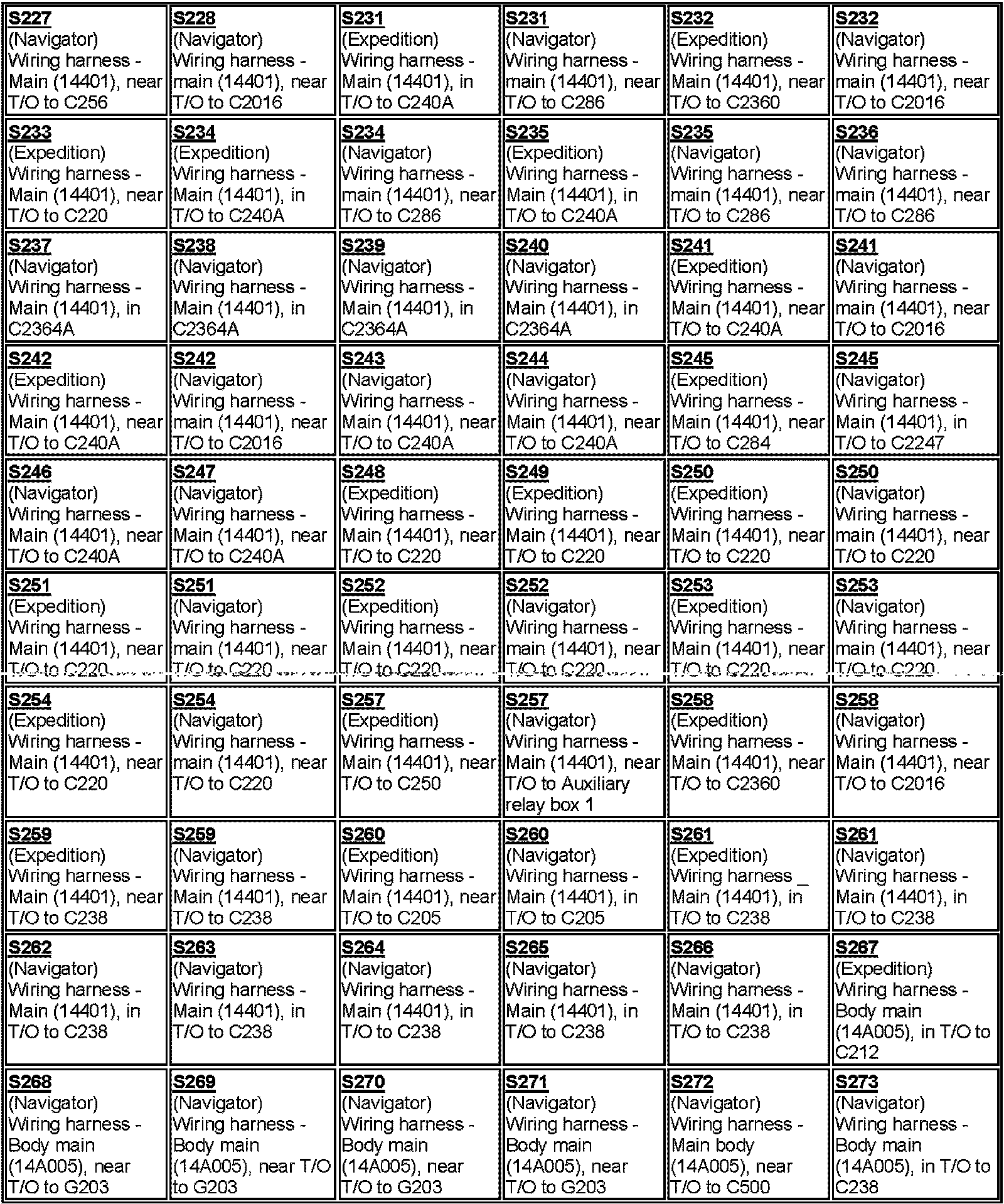

S227-S273:

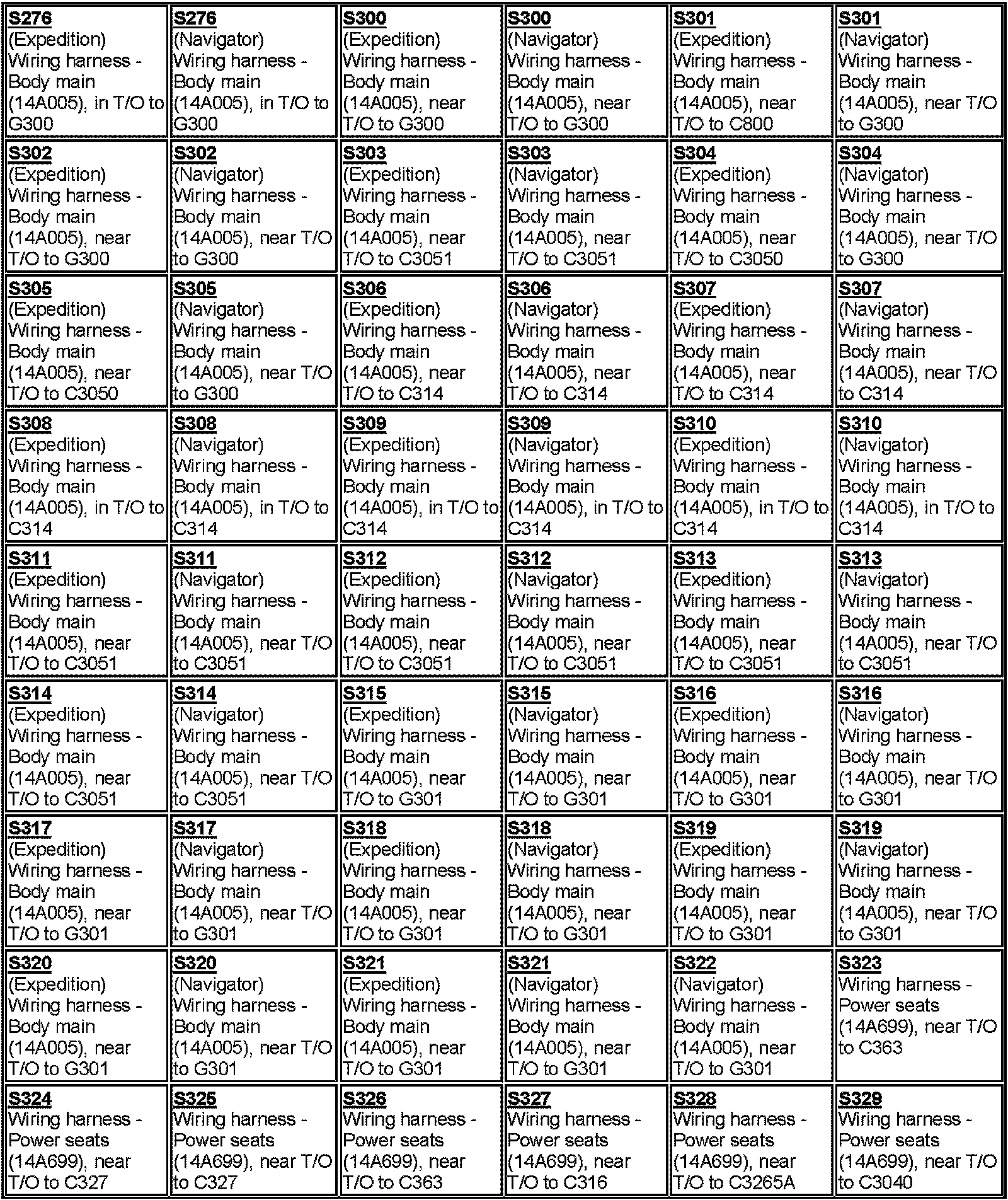

S276-S329:

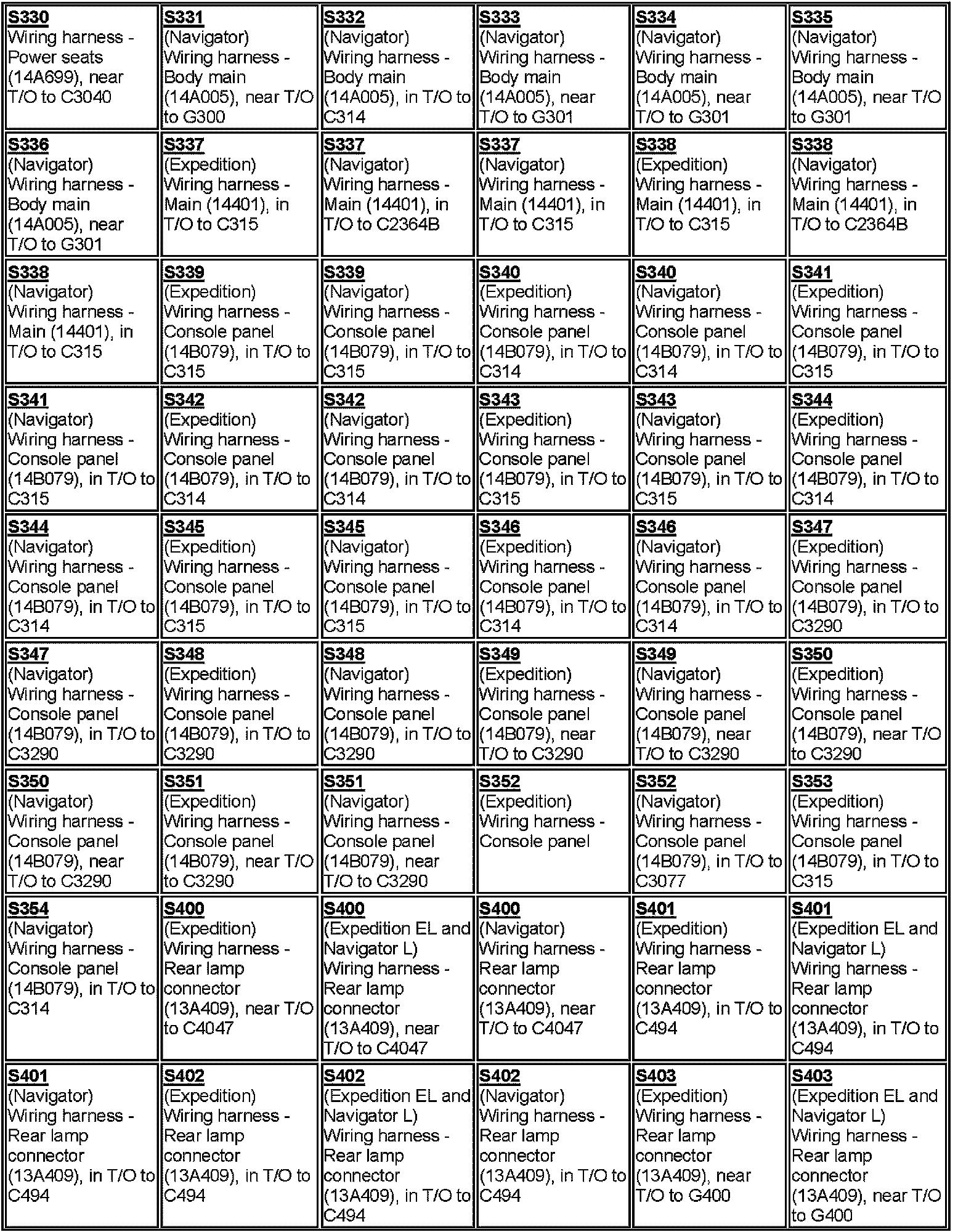

S330-S403:

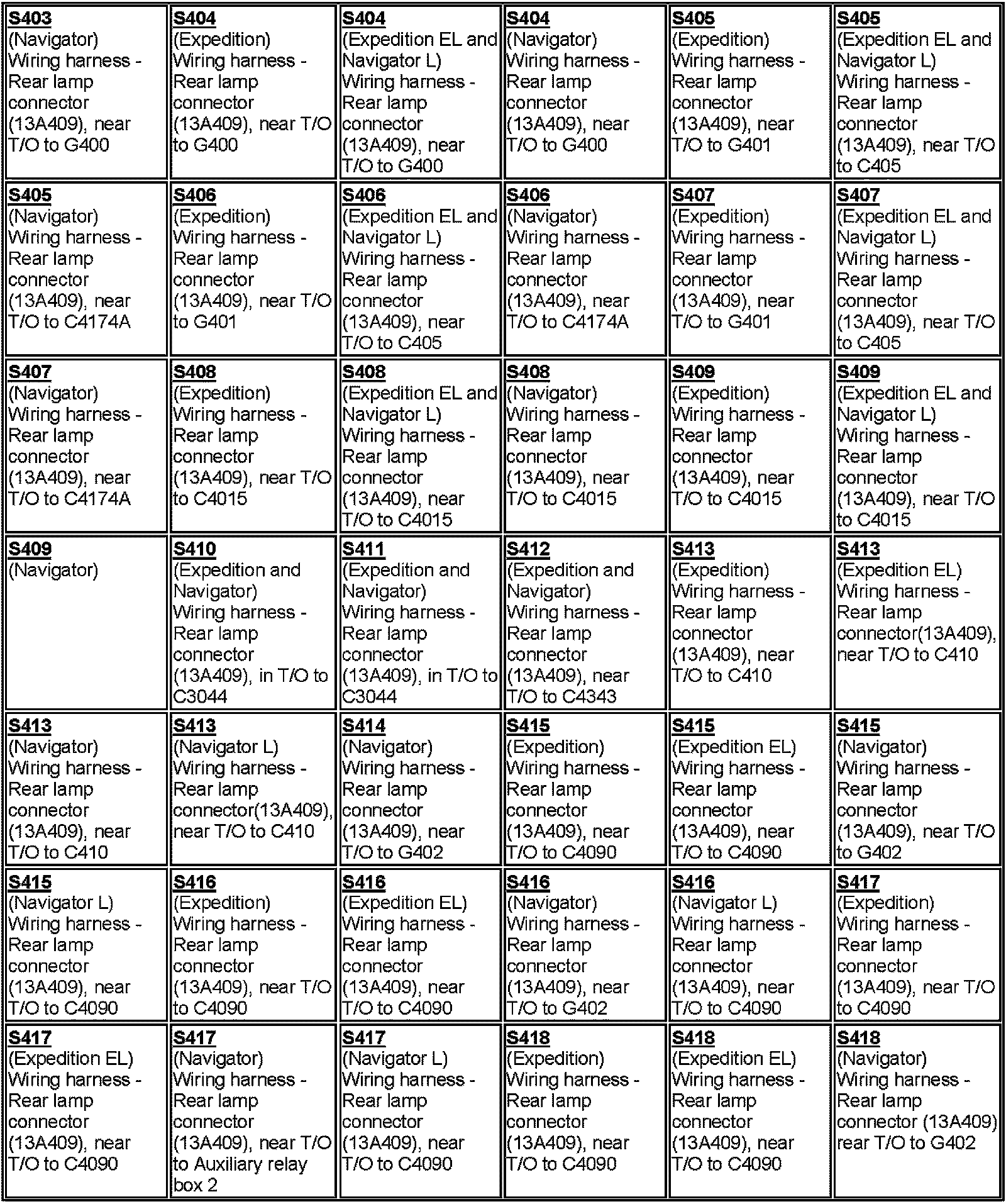

S403-S418:

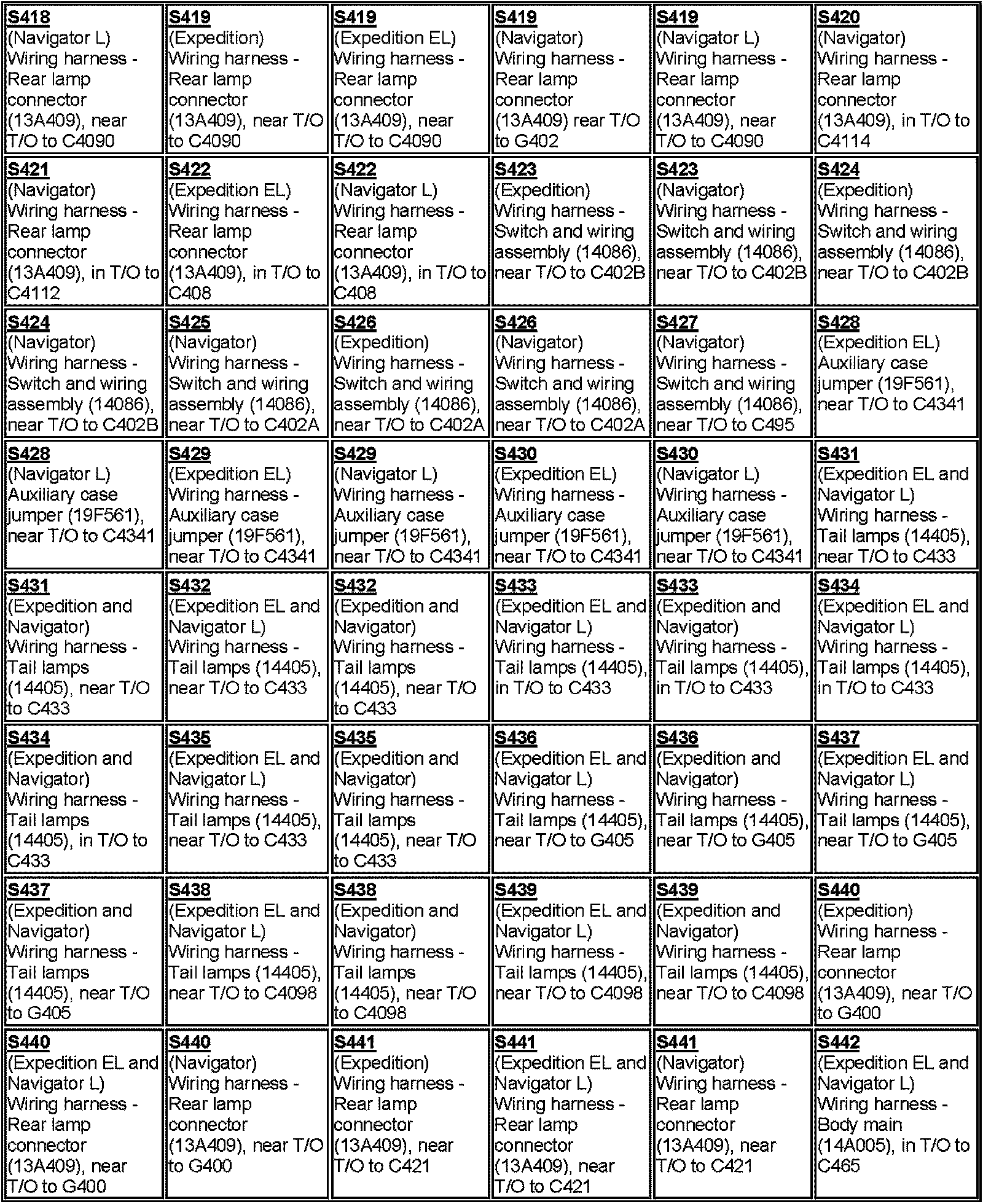

S418-S442:

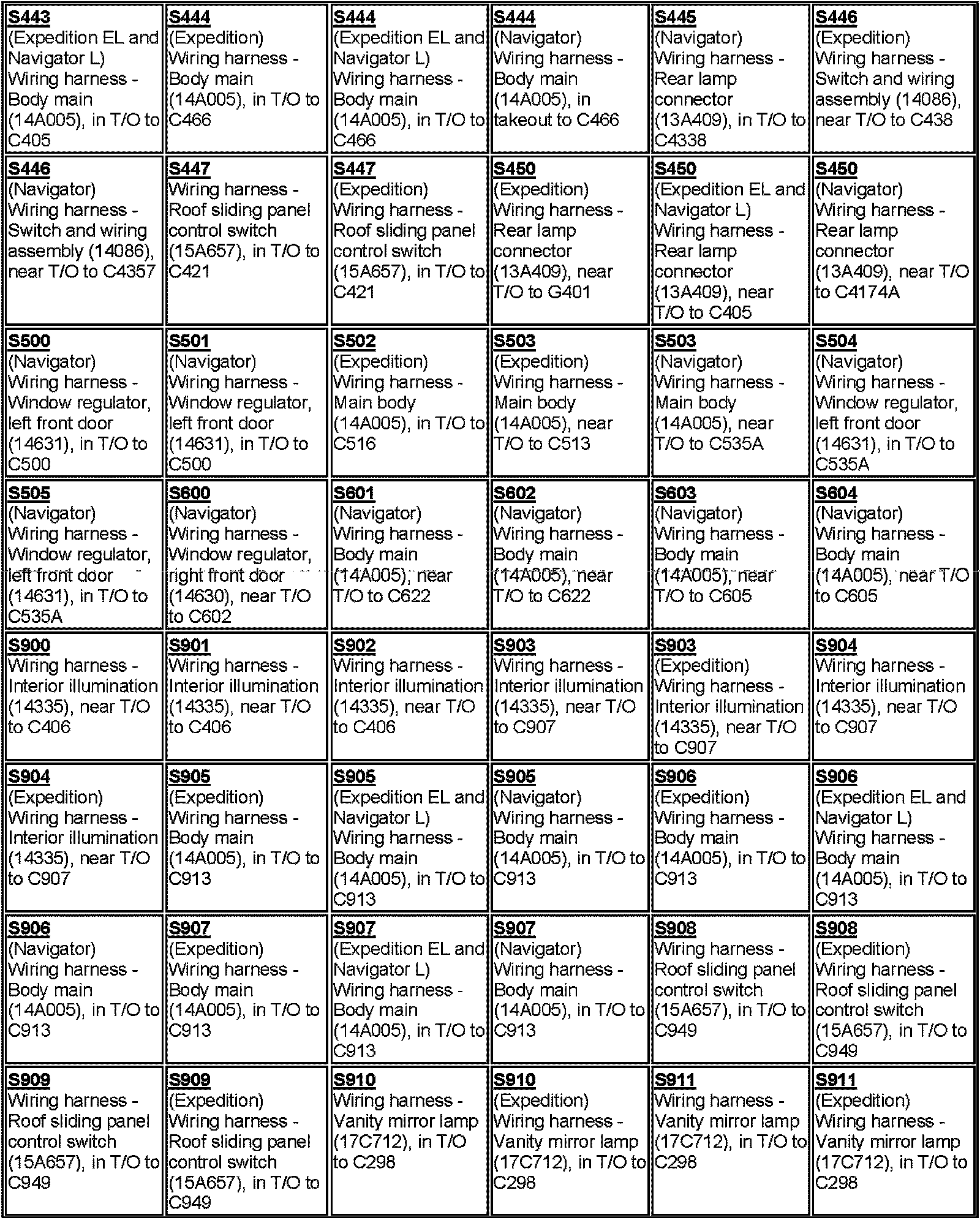

S443-S911:

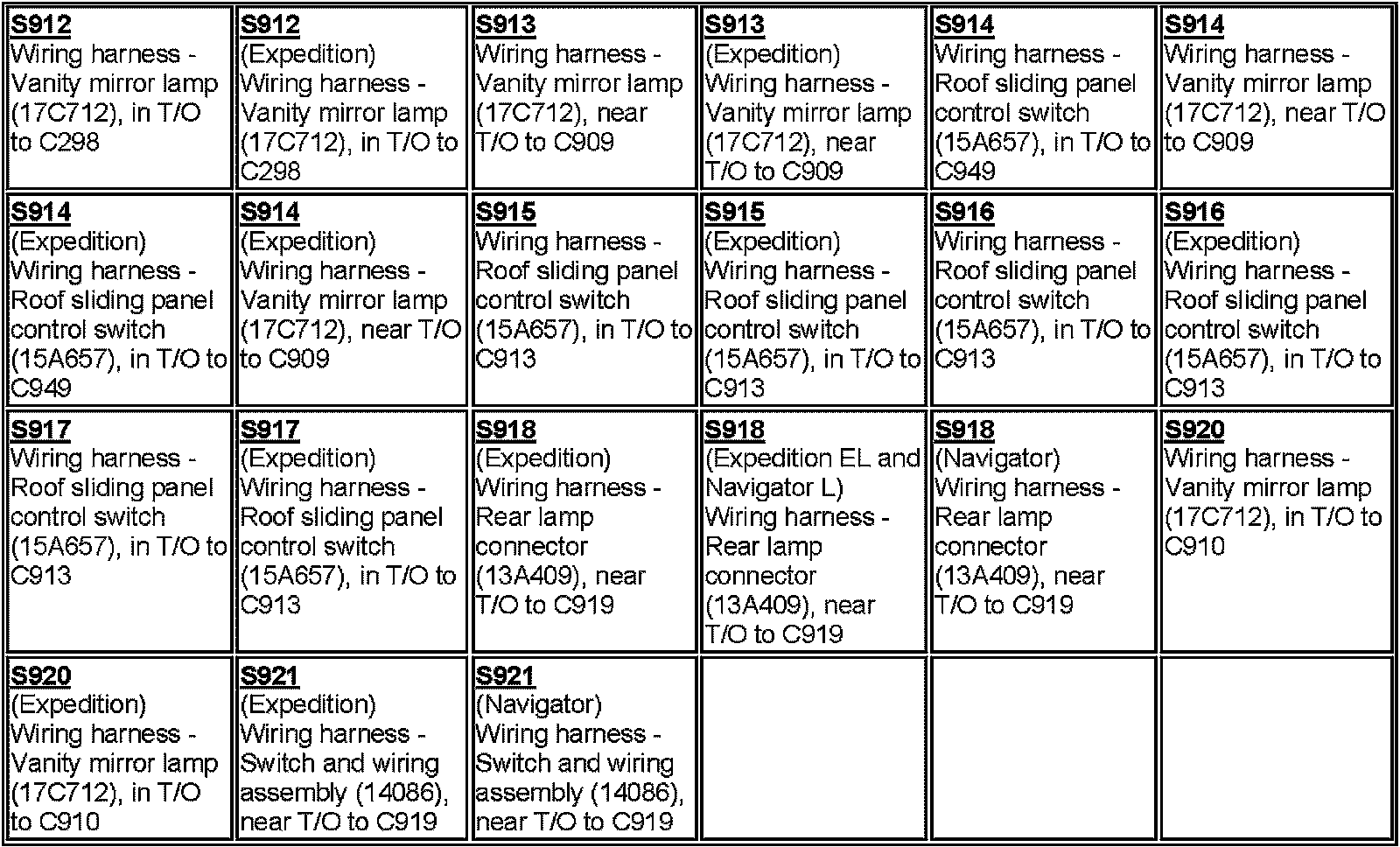

S912-S921:
