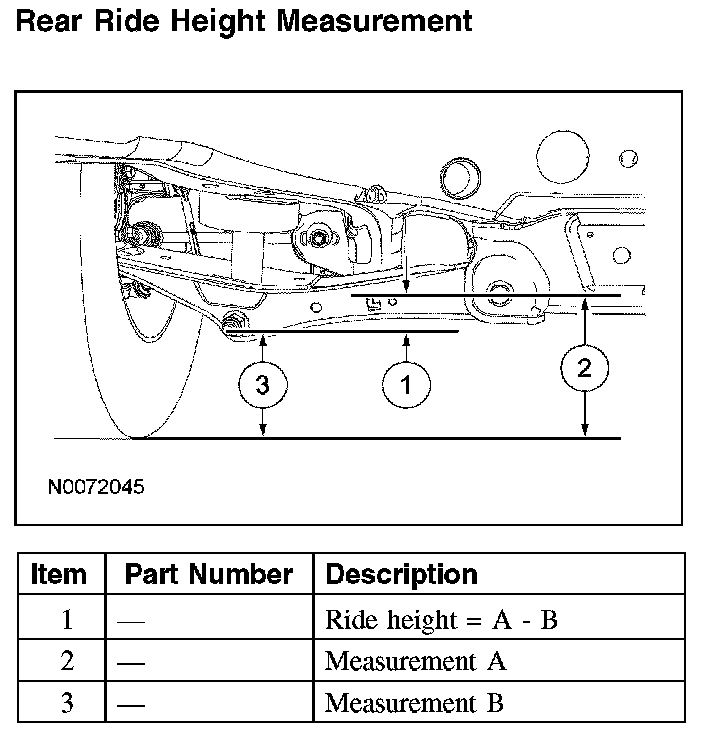

Rear Ride Height Measurement

Rear Ride Height Measurement





NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

1. Measure the distance between the flat level surface and the center of the lower arm rearward bolt (measurement A).
2. Measure the distance between the flat level surface and the center of the shock absorber lower bolt (rearward side) (measurement B).
3. Subtract measurement A from measurement B to obtain the rear ride height.
^ For additional information, refer to Specifications.
