Toe Adjustment - Rear

Toe Adjustment - Rear

NOTE: Air suspension vehicles must be at trim ride height prior to measuring or adjusting the rear toe.

NOTE: Before carrying out a toe adjustment, check the tires for the correct pressure. Inspect the tires for incorrect wear or damage. Inspect the suspension for wear or damage.

1. Using alignment equipment and the manufacturer's instructions, measure the rear toe.
^ Refer to Alignment Specifications for optimal alignment settings.
^ If the rear toe values are not within specification, go to the next step.

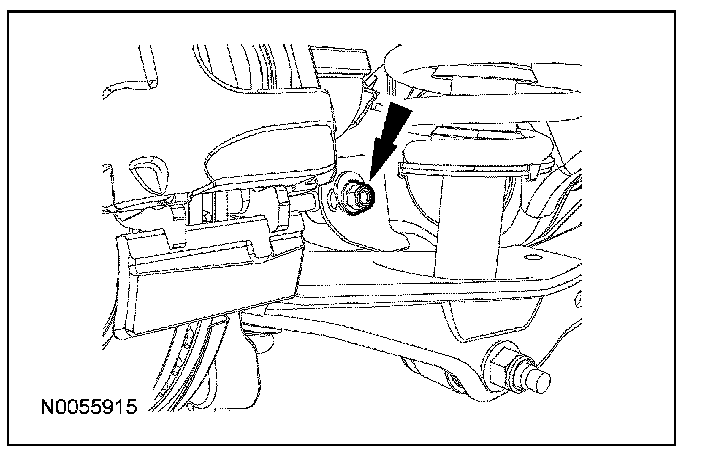

2. Loosen the toe link cam bolt nut(s).

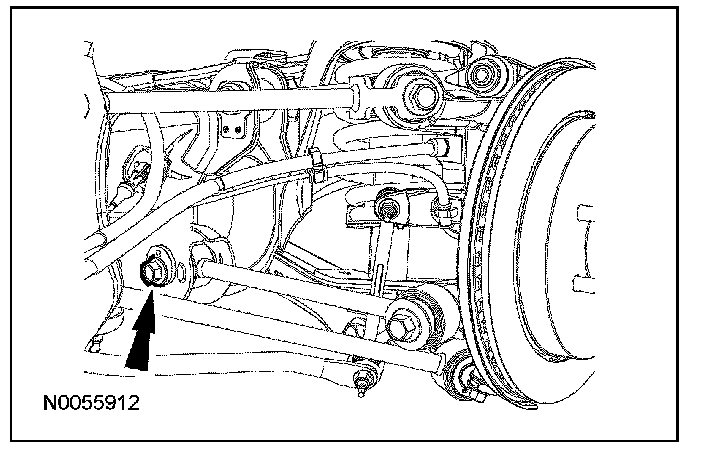

3. Rotate the toe link cam bolt(s) until the toe setting is within specification.





4. NOTE: Make sure the toe settings are not disturbed while tightening the cam nut(s).

Tighten the toe link cam bolt nut(s) to 275 Nm (203 lb-ft).
5. Recheck the rear toe setting, adjust as necessary.
