Rear Door Window Regulator: Service and Repair

WINDOW REGULATOR - REAR DOOR

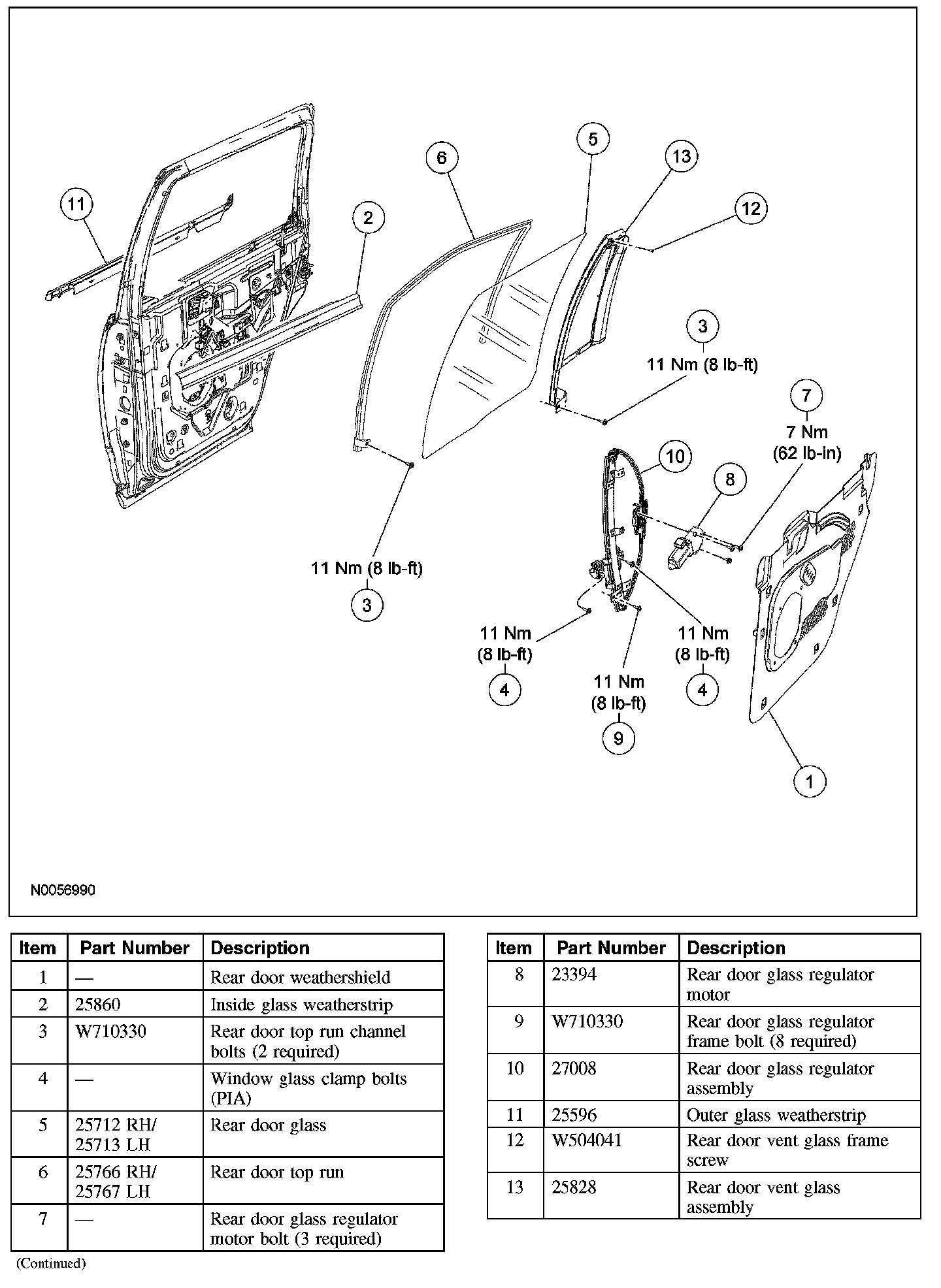

Exploded View







Removal and Installation
1. Remove the rear door trim panel.

2. NOTE: LF shown, LR and RR are similar.

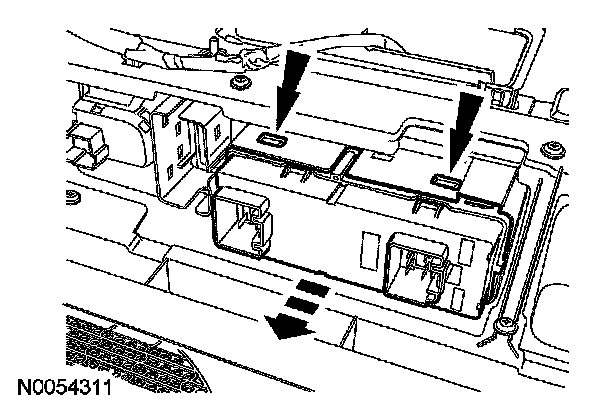

Unlock the tabs and remove the window control switch from the door trim panel.







3. Remove the rear door speaker.

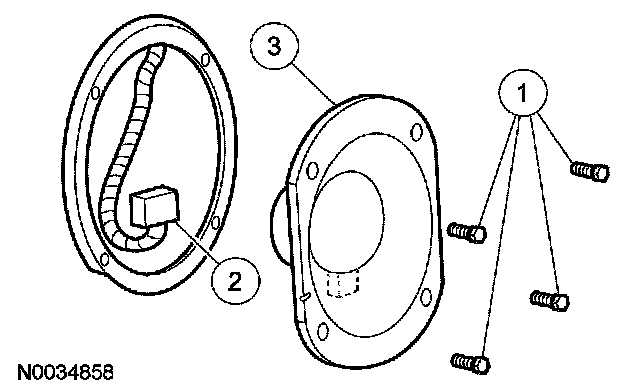

1 Remove the screws.
2 Disconnect the electrical connector.
3 Remove the speaker.

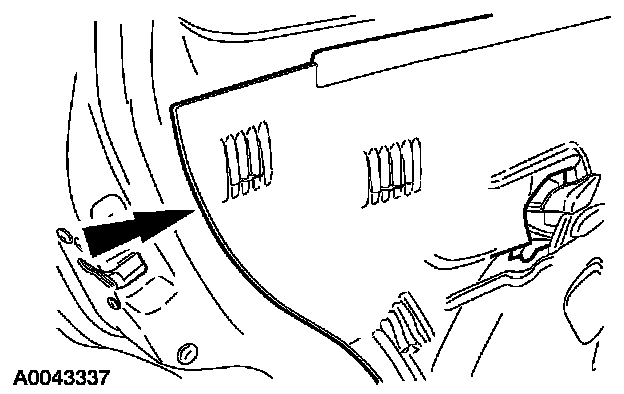

4. Remove the rear door weathershield.







5. Connect the window control switch.
6. Lower the window glass to access the window glass clamp bolts.
7. Disconnect the window control switch.
8. Loosen the window glass clamp bolts and remove the rear door window glass.
- To install, tighten to 11 Nm (8 lb-ft).

9. NOTE: Secure the rear window glass in the full UP position.

Secure the rear window glass with tape to the rear door frame.

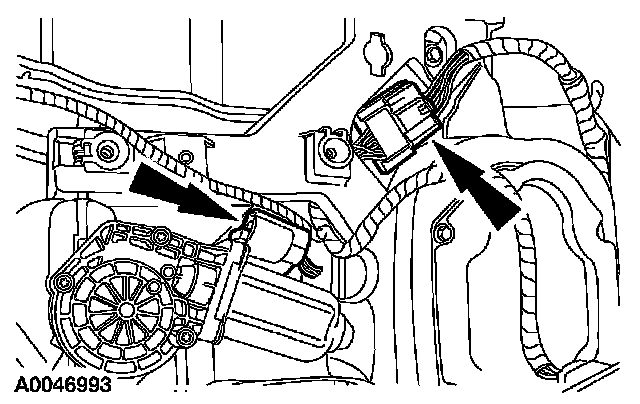

10. Disconnect the rear door window regulator electrical connectors.







11. Position the interior door handle aside.

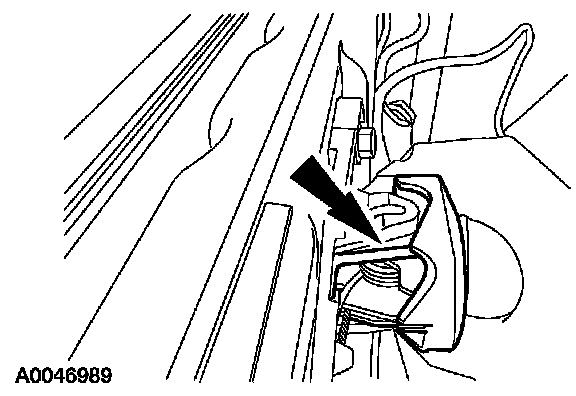

- Lift upward on the interior door handle retaining bracket and pivot the interior door handle out of the bracket.







12. Remove the rear door window regulator assembly.

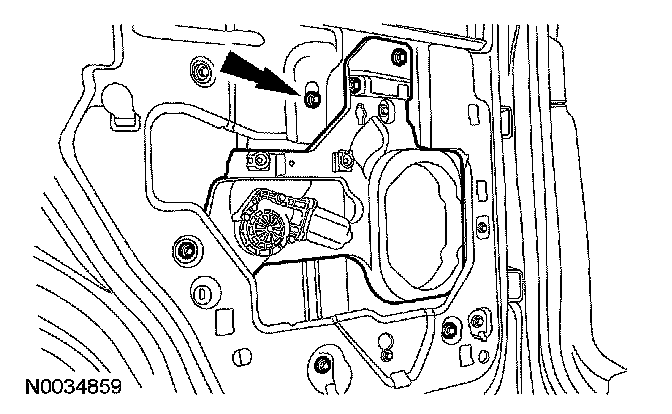

- Remove the bolts.
- To install, tighten to 11 Nm (8 lb-ft).







13. To install, reverse the removal procedure.
