Windshield Washer Pump: Service and Repair

WASHER PUMP

Exploded View

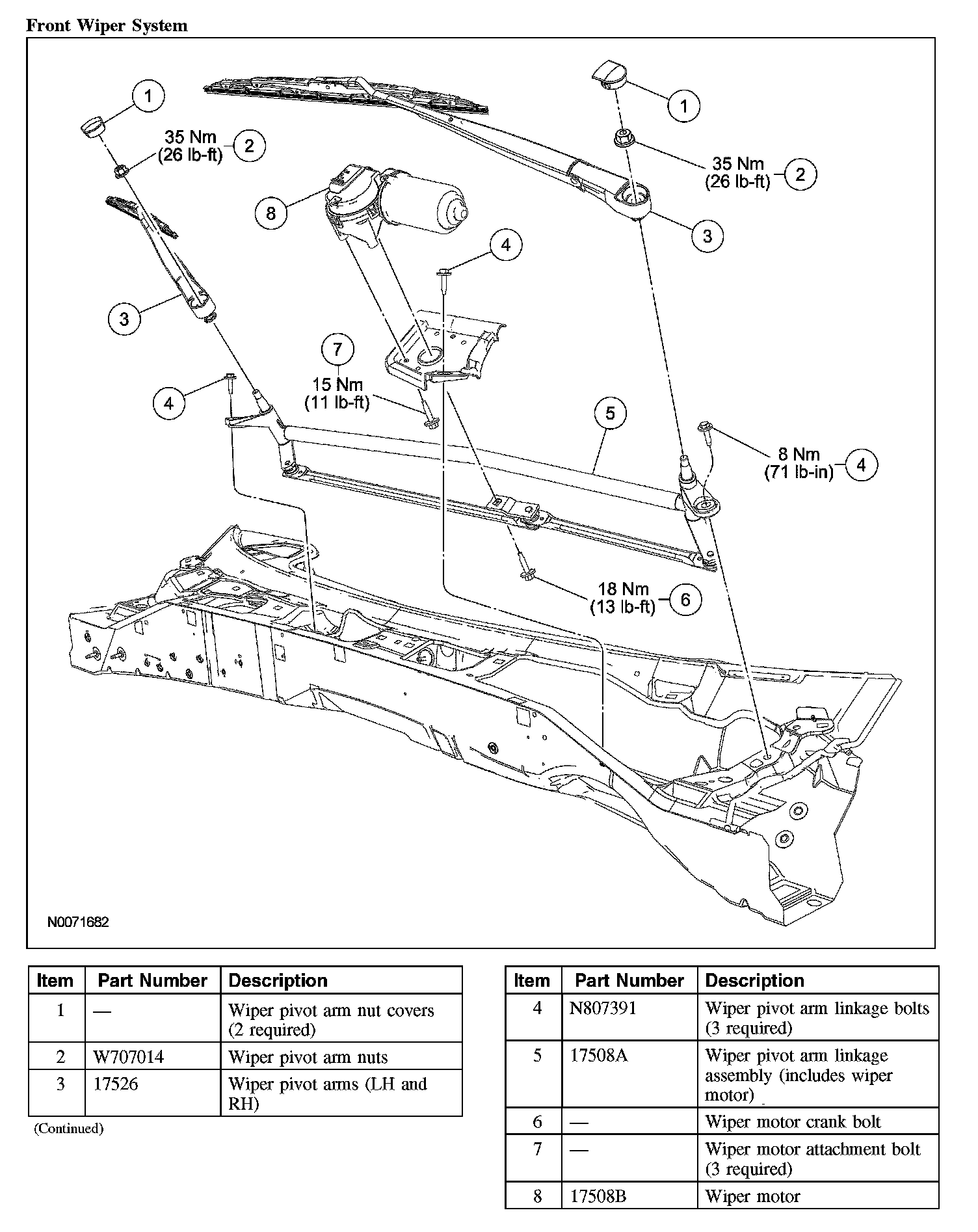

Front Wiper System:

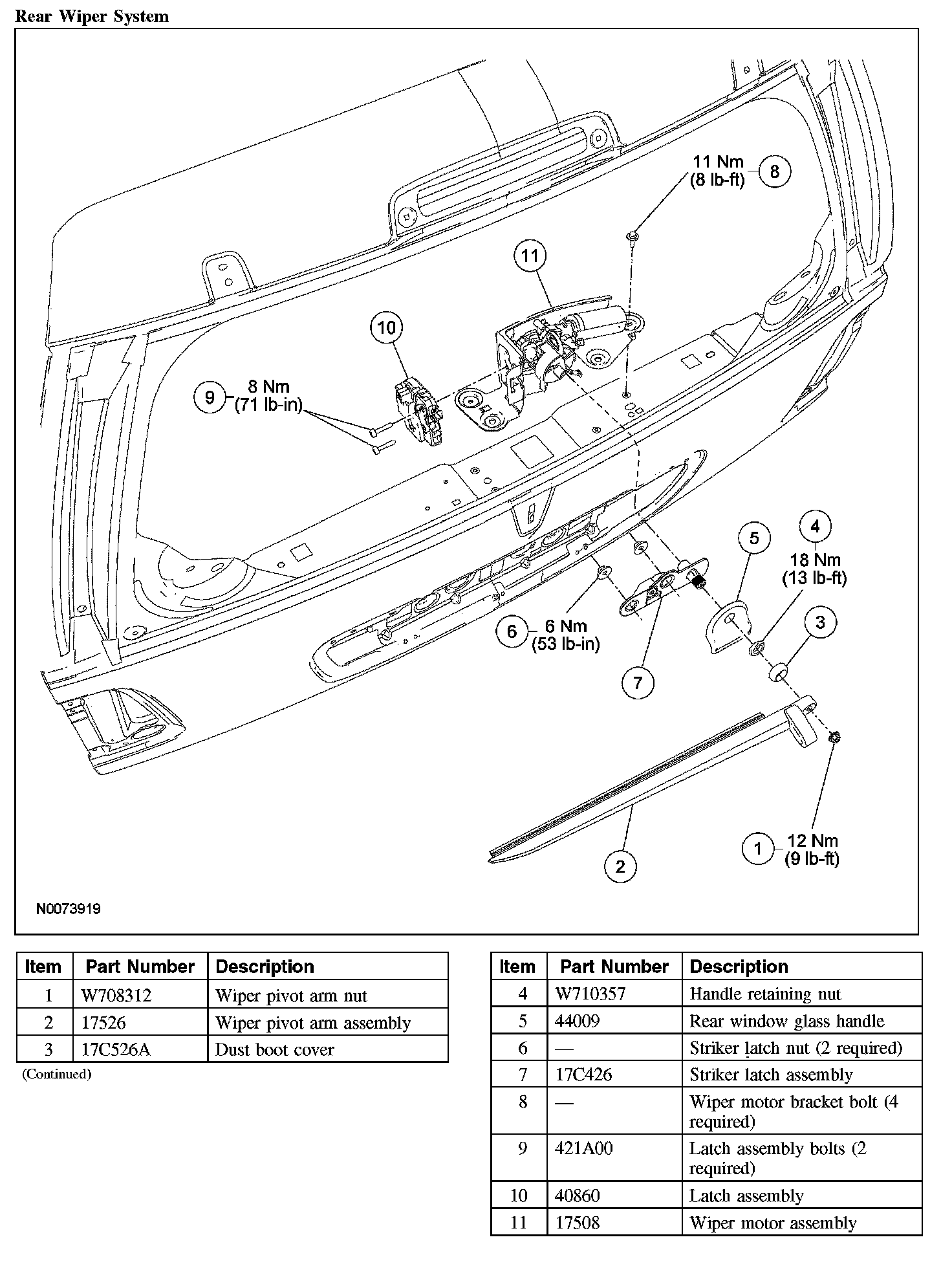

Rear Wiper System:

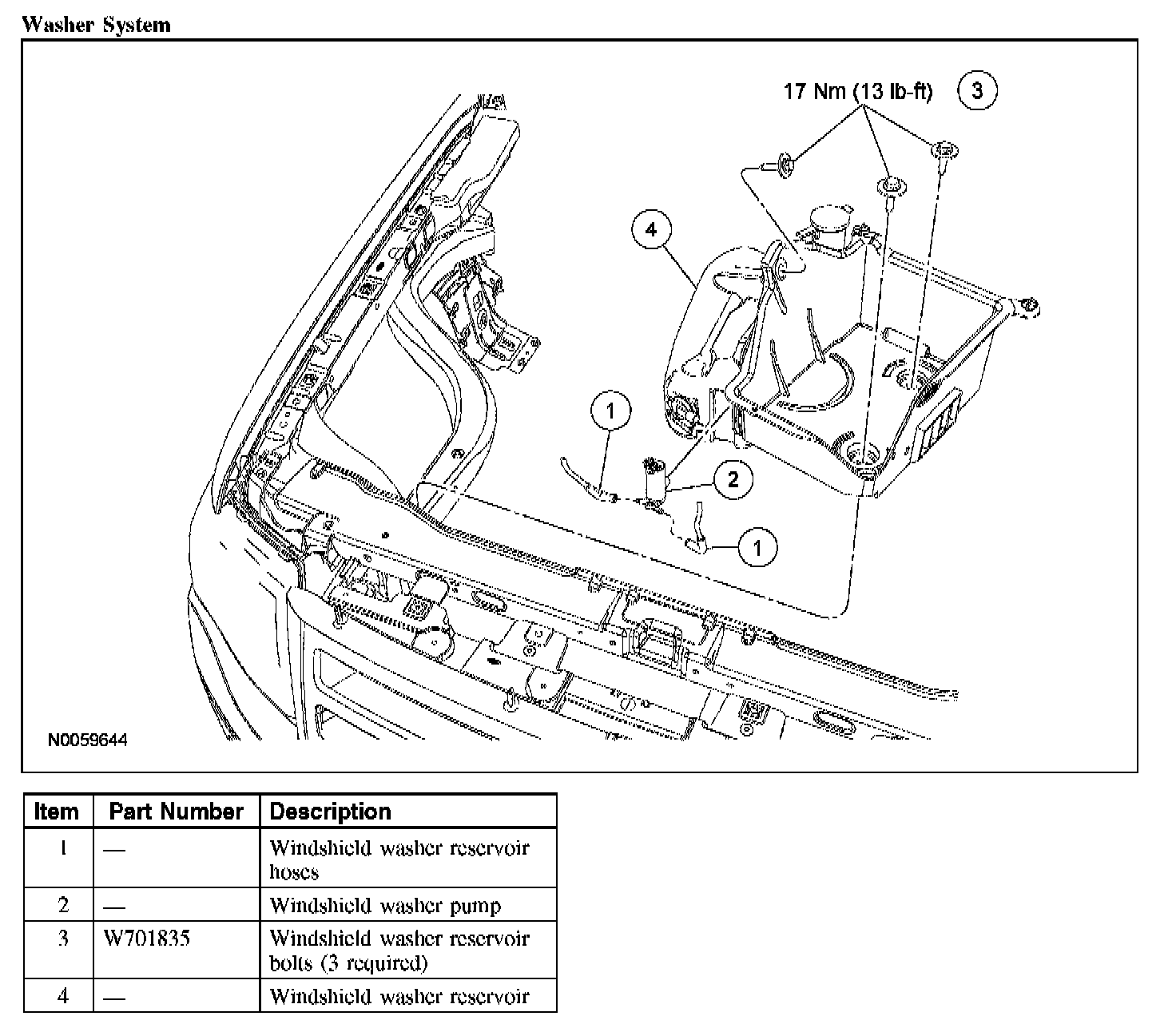

Washer System:






Removal and Installation

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

CAUTION:
- When servicing the windshield washer pump be careful not to damage the windshield washer pump seal.
- Do not operate the windshield washer pump before filling the windshield washer reservoir. Failure to do so may result in premature pump failure.

1. Remove the RH headlamp assembly.
2. Position aside the shield as necessary to gain access to the washer pump.
3. Disconnect the windshield washer reservoir hoses.
4. Disconnect the windshield washer pump electrical connector.
5. Remove the windshield washer pump.
6. To install, reverse the removal procedure.
