Control Module HVAC
>>
Rear Audio and Temperature Control (RATC) Module
Rear Audio and Temperature Control (RATC) Module

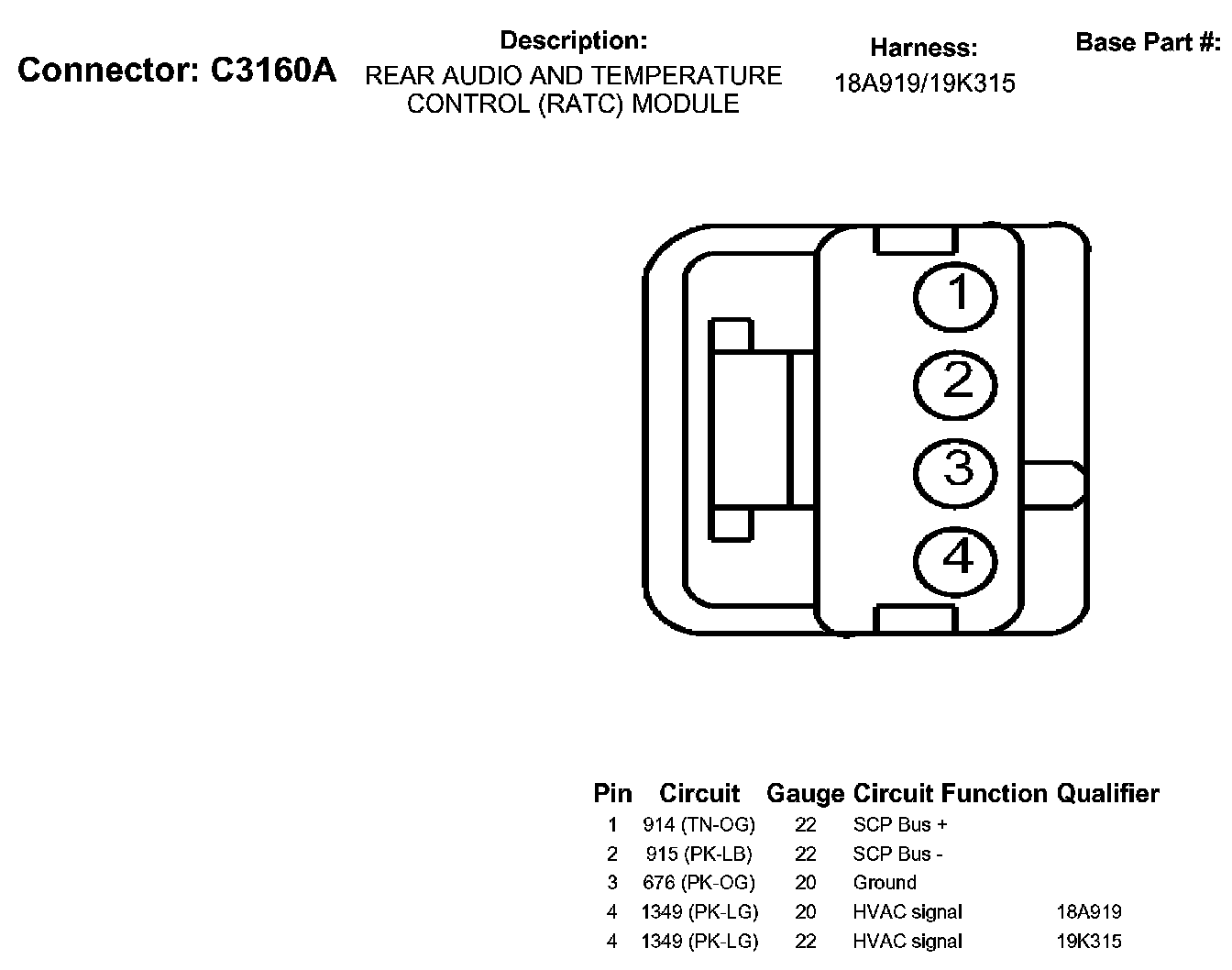

C3160A:

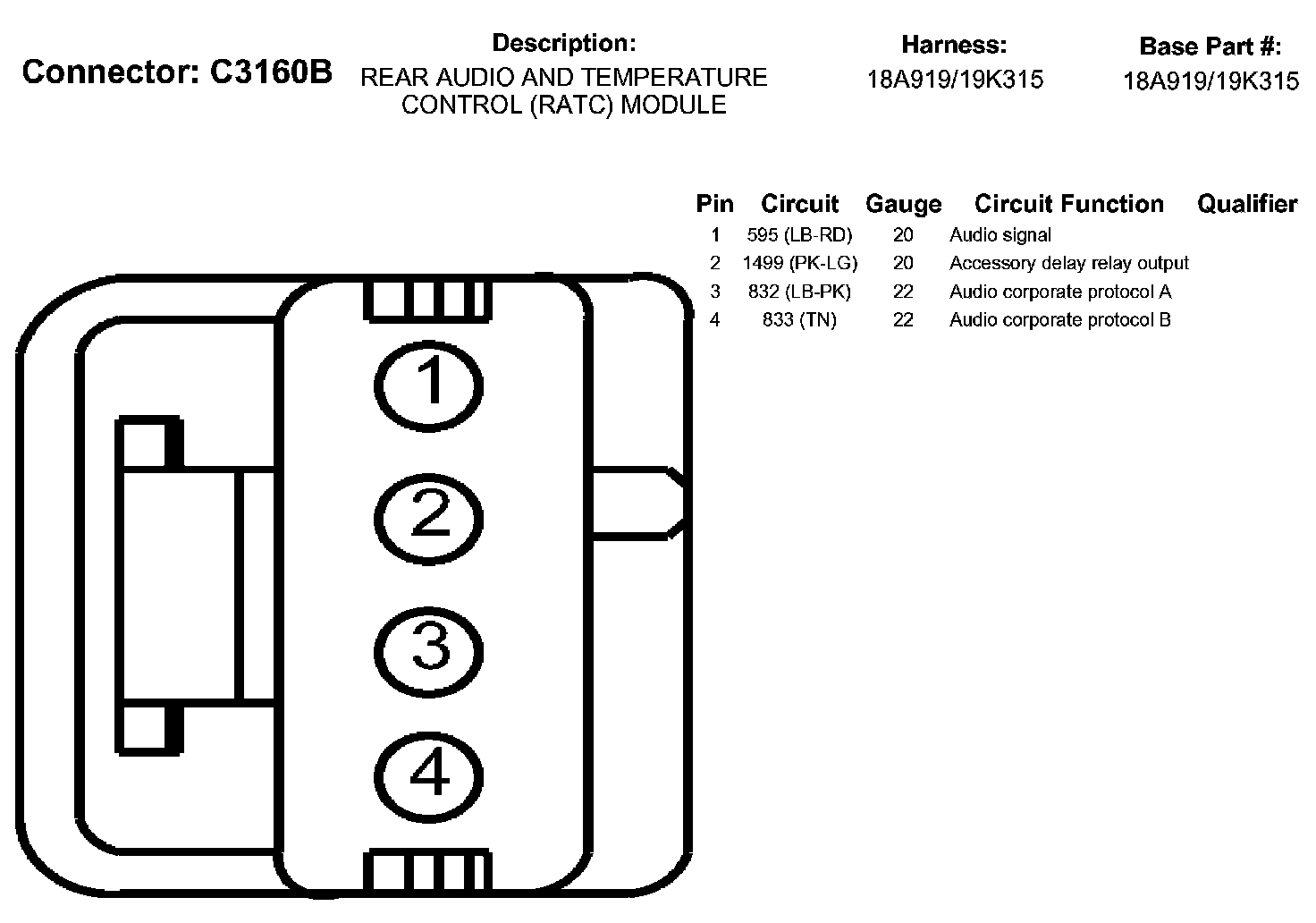

C3160B:
