Control Assembly: Service and Repair

HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE

Removal and Installation
1. Remove the instrument cluster finish panel.

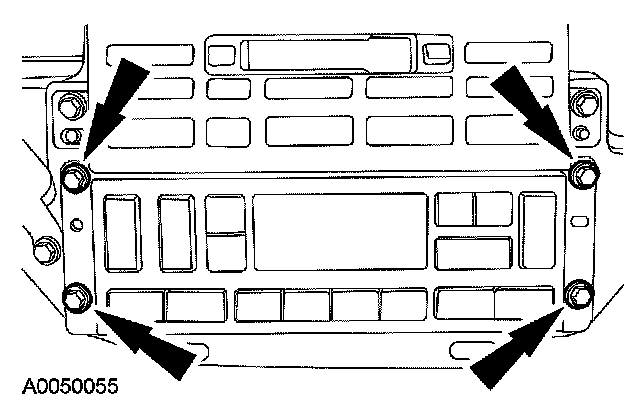

2. Remove the 4 HVAC module screws.

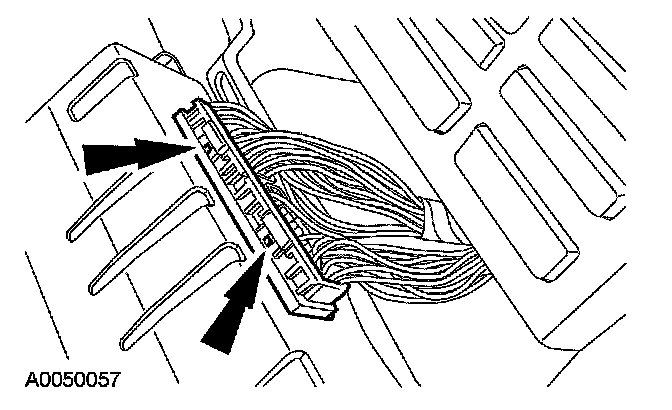

3. Disconnect the 2 HVAC module electrical connectors and remove the HVAC module.







4. To install, reverse the removal procedure.
