Front Ride Height Measurement

Front Ride Height Measurement





NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

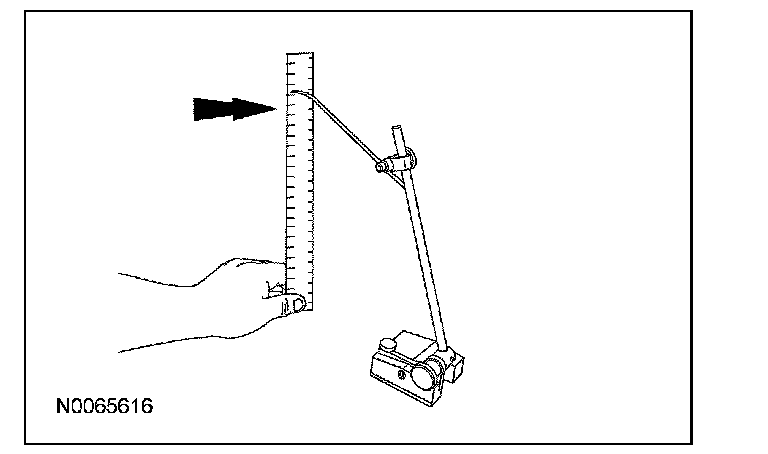

1. Position a suitable surface gauge (such as Starrett 57D Surface Gauge) on a flat, level surface and adjust the gauge's arm until the scriber point is located in the center of the lower arm forward mounting bolt.
^ Lock the surface gauge in this position.





2. With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement A).

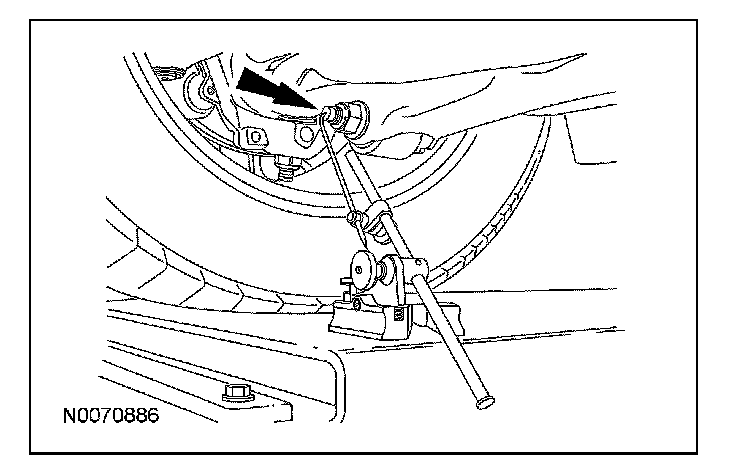

3. Position the surface gauge on the same flat, level surface as used in Step 1 and adjust the gauge's arm until the scriber point is located in the center of the shock absorber mounting bolt.
^ Lock the surface gauge in this position.





4. With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement B).

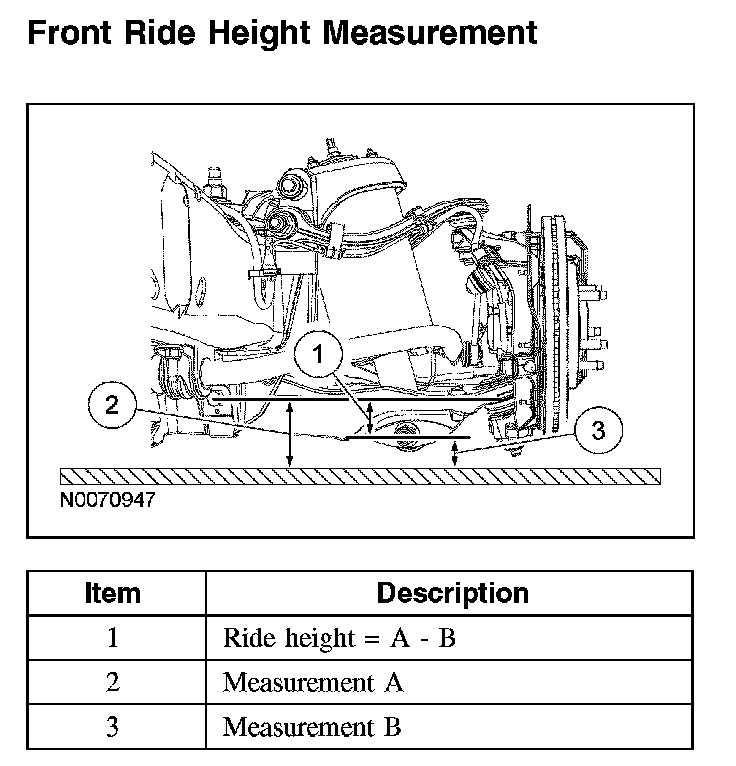

5. Subtract measurement B from measurement A to obtain the front ride height.
^ Refer to Specifications
6. If equipped with fire suppression system, repower the system.
