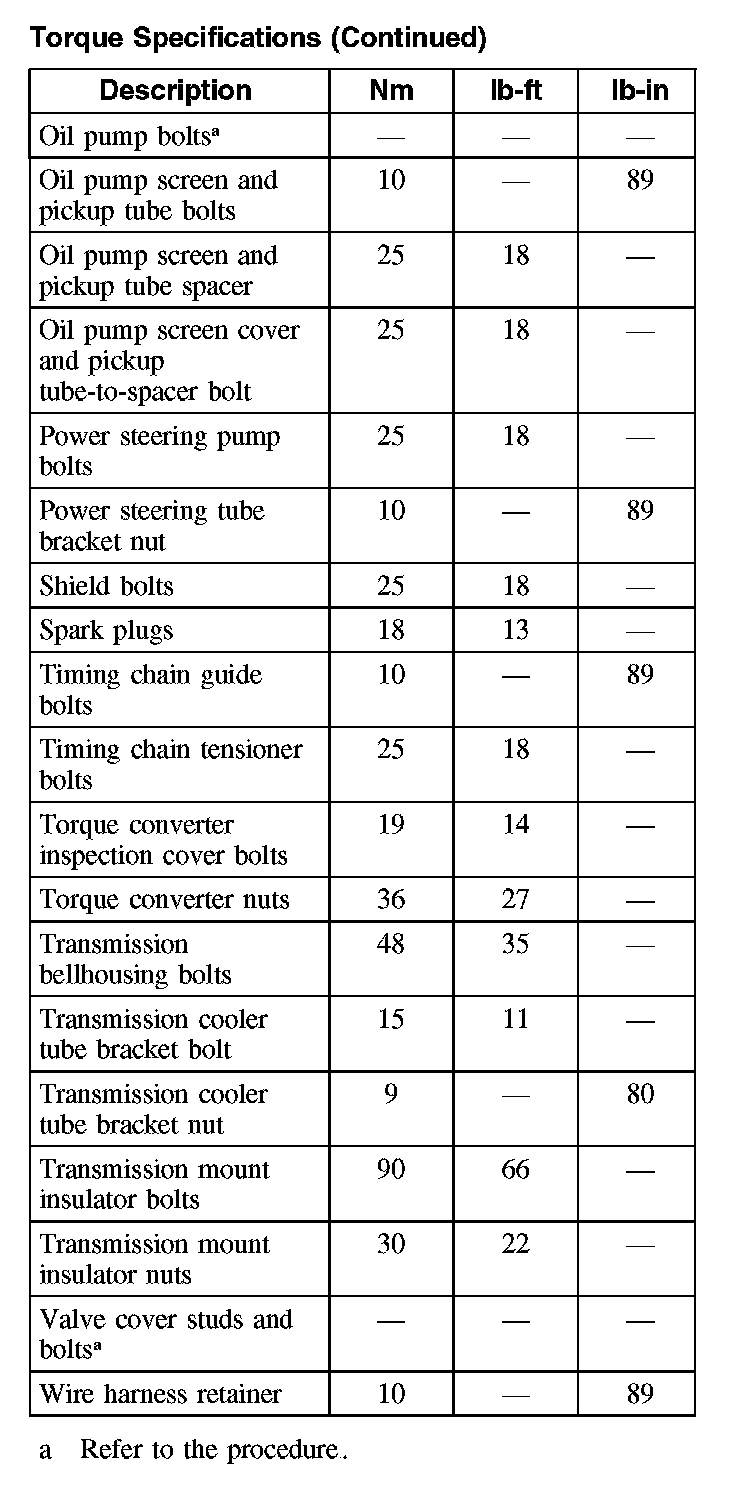

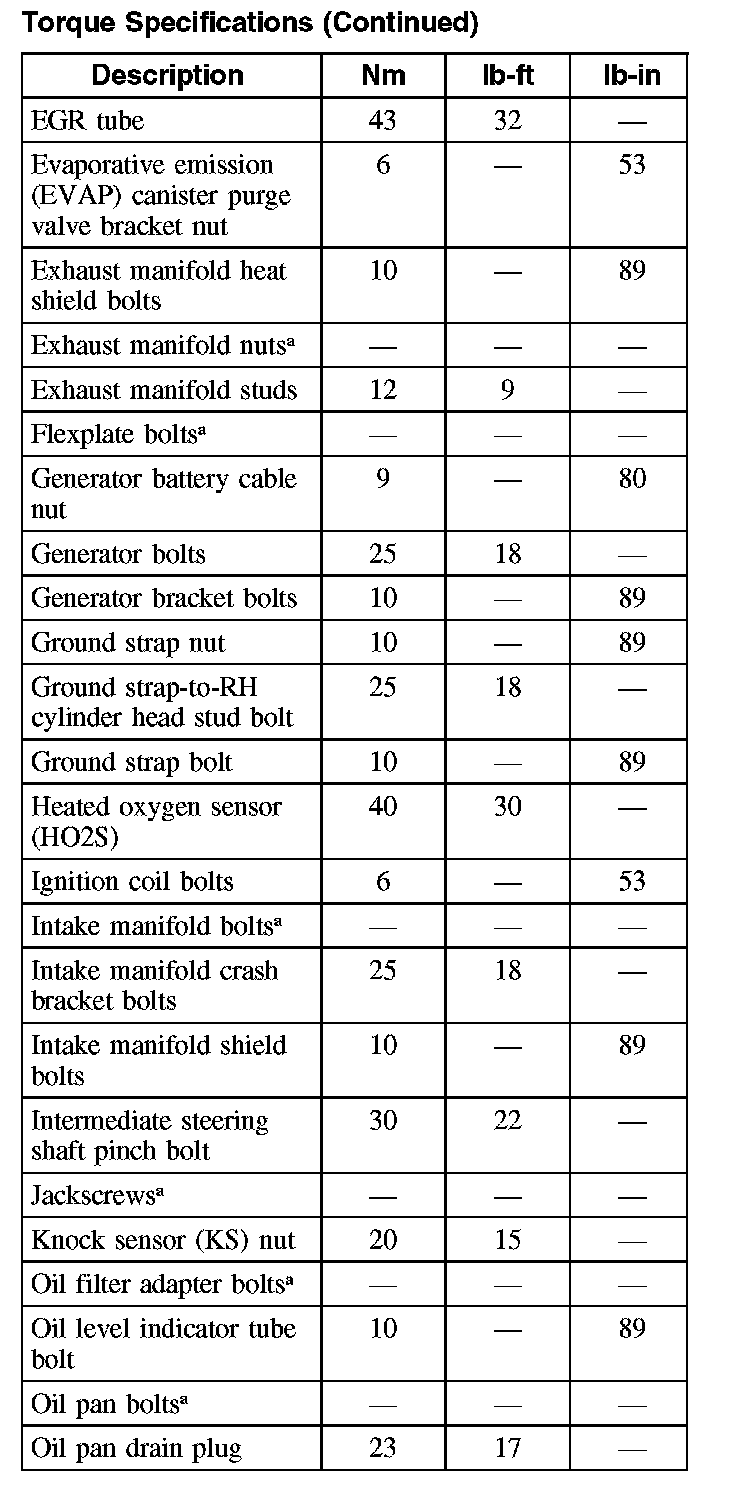

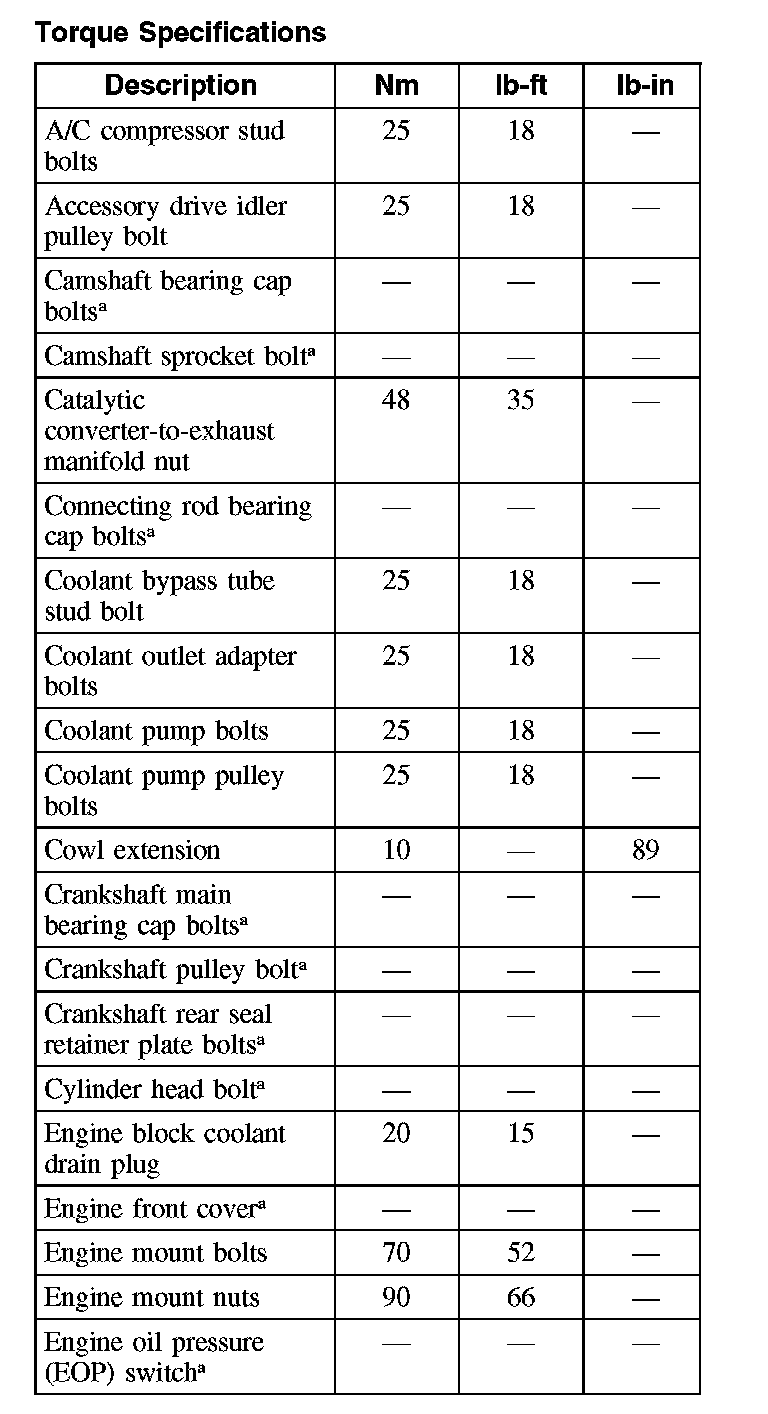

Torque Specifications

Torque Specifications











Cylinder Head Bolts
The cylinder head bolts must be discarded and new bolts installed. They are tighten-to-yield designed and cannot be reused.
