Register - Center

Register - Center, MKX









Removal and Installation

1. Remove the center instrument panel finish panel.

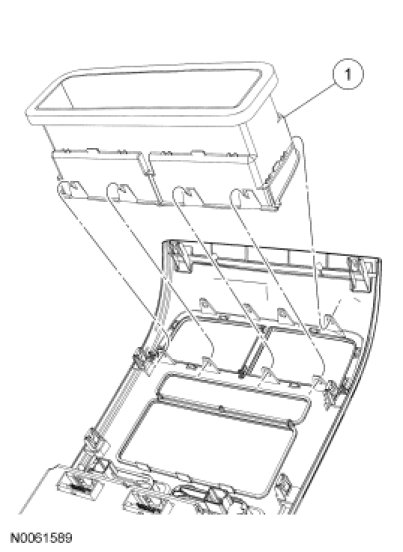

2. Release the 8 center register clips and remove the center register assembly.

3. To install, reverse the removal procedure.
