Heating Ventilation Air Conditioning (HVAC) Module

Heating Ventilation Air Conditioning (HVAC) Module - MKX









Removal and Installation

1. Remove the center instrument panel finish panel.

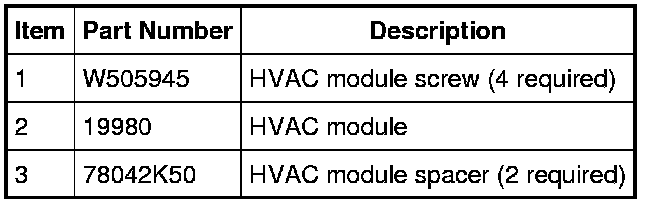

2. Remove the 4 HVAC module screws.

3. Remove the HVAC module.

4. NOTE: Be sure the HVAC module spacers are correctly positioned before installing the HVAC module.

To install, reverse the removal procedure.
