Sunshade Module
Sunshade ModuleRemoval and Installation 1.
Remove the rear seat. For additional information, refer to Seats.
2.
Remove the parcel shelf. For additional information, refer to Parcel Shelf
Service and Repair.
3.
Disconnect the sunshade module electrical connector.
4.

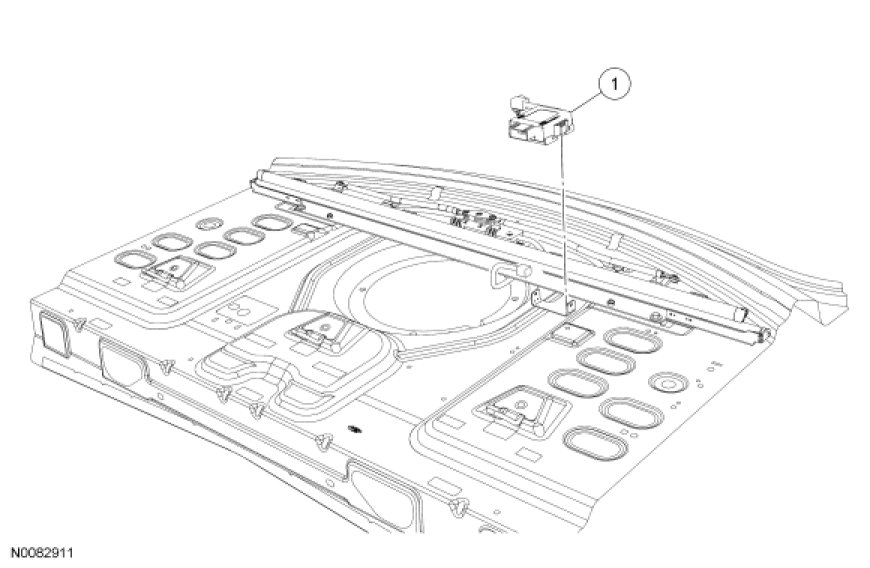

Press the tabs on the sunshade module to release the sunshade module from the sunshade module bracket.
5.
To install, reverse the removal procedure.
