Part 1

Identification Codes

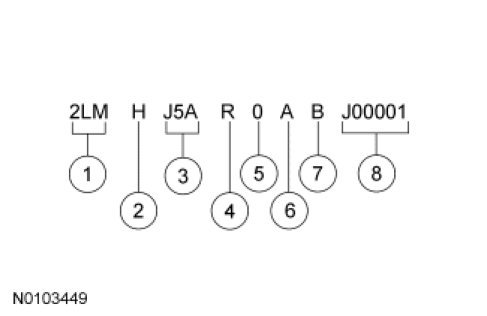

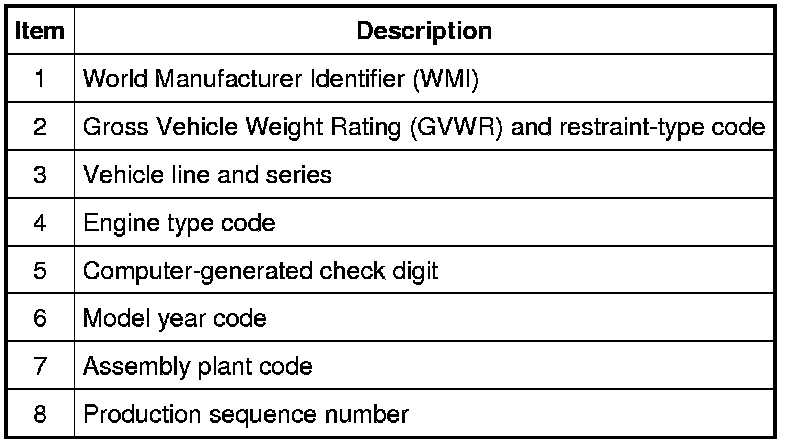

Vehicle Identification Number (VIN)

Vehicle Identification Number (VIN) Locator





The Vehicle Identification Number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel top, upper left of the dash. The VIN is also found on the Vehicle Certification (VC) label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office.










World Manufacturer Identifier (WMI)





The first 3 VIN positions are the World Manufacturer Identifier (WMI).

- 2LM - Lincoln, Canada, Multi-Purpose Vehicle (MPV)

Gross Vehicle Weight Rating (GVWR) and Restraint Type





The fourth VIN position is the vehicle restraint-type code.

- G - Active safety belts (all positions) with driver and front passenger air bags and side impact protection

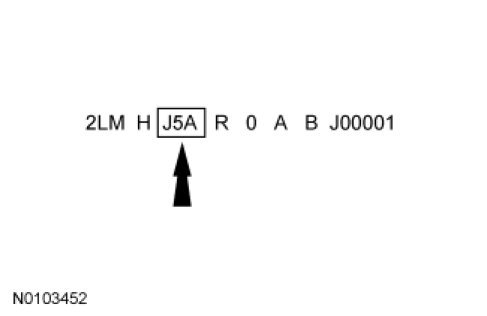

Vehicle Line and Series





Positions 5 through 7 indicate vehicle line and series.

- J5A - Lincoln MKT, All-Wheel Drive (AWD)
- J5F - Lincoln MKT, Front Wheel Drive (FWD)

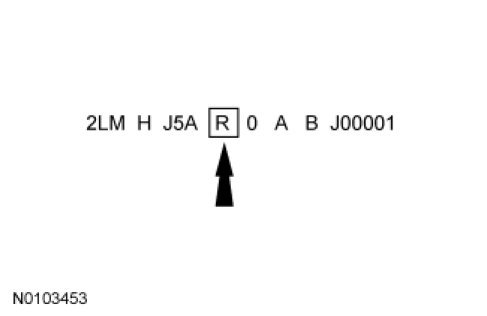

Engine Type





The eighth VIN position is the engine displacement and number of cylinders.

- R - 3.7L, Durataec, 4 valve, V6
- T - 3.5L, Gasoline Turbocharged Direct Injection (GTDI), V6

Additional engine information can be obtained from the engine tag. Refer to Engine.

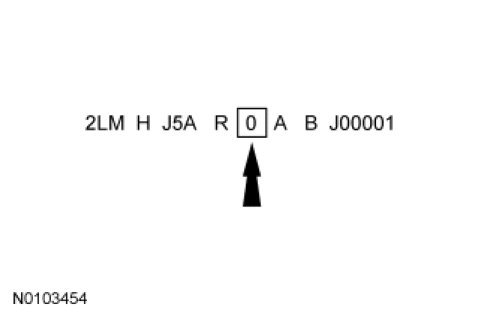

Check Digit





The ninth VIN position is a government-assigned, computer-generated check digit.

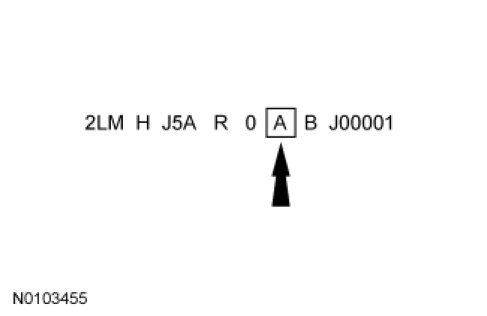

Model Year





The tenth VIN position is the model year code.

- A - 2010

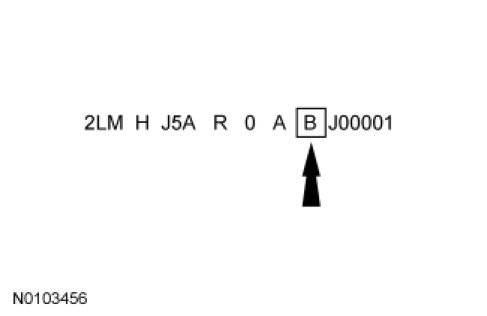

Assembly Plant





The eleventh VIN position is the assembly plant code.

- B - Oakville (Oakville Ontario, Canada)
