Driver Seat Module (DSM)

Driver Seat Module (DSM)













Removal and Installation

1. NOTE: This step is necessary only if the Driver Seat Module (DSM) is being replaced.

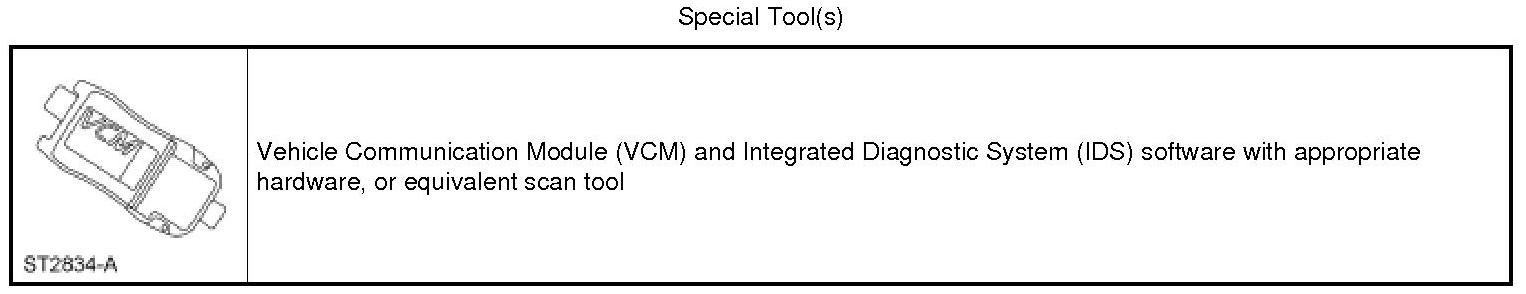

NOTE: Prior to the replacement of the module, it is necessary to upload the module configuration information to the scan tool. This information must be downloaded into the new module after installation. For additional information, refer to Information Bus.

Upload the module configuration information from the DSM. For additional information, refer to Information Bus.

2. Position the seat to the highest and most-rearward position to increase the ease-of-access to the DSM.

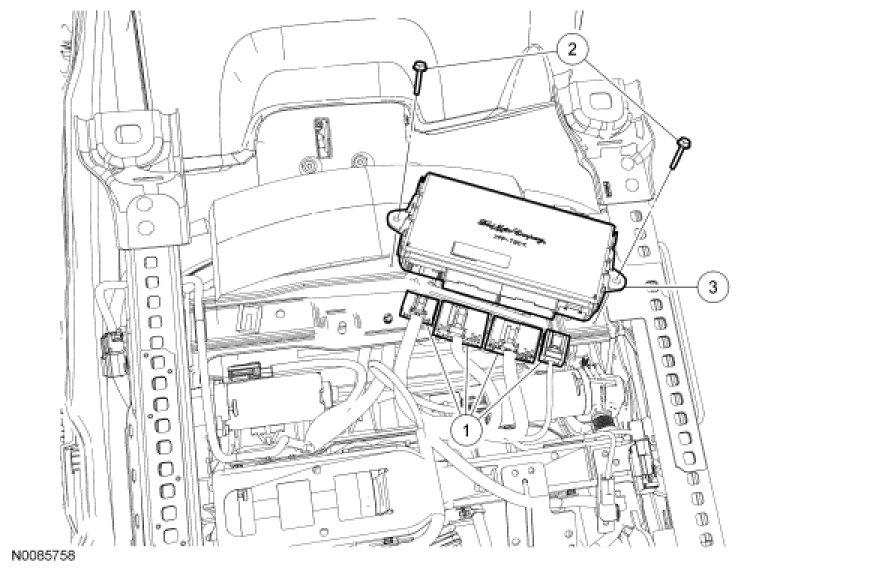

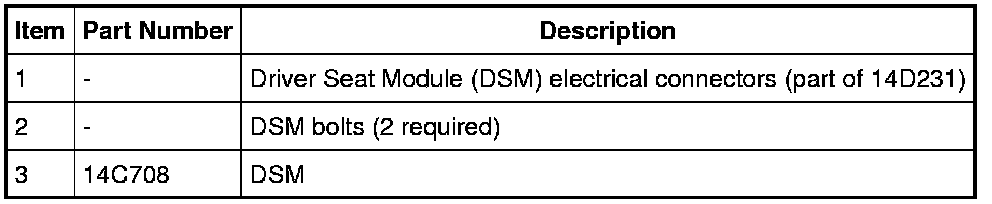

3. Disconnect the DSM electrical connectors.

4. Remove the 2 bolts and the DSM.

5. NOTE: If installing a new DSM, make certain to download the module configuration information to the new module after installation.

To install, reverse the removal procedure.
