Smart Junction Box (SJB)
Smart Junction Box (SJB)DTC ChartsNOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states (ignition in accessory, ignition on, ignition start, ignition off).

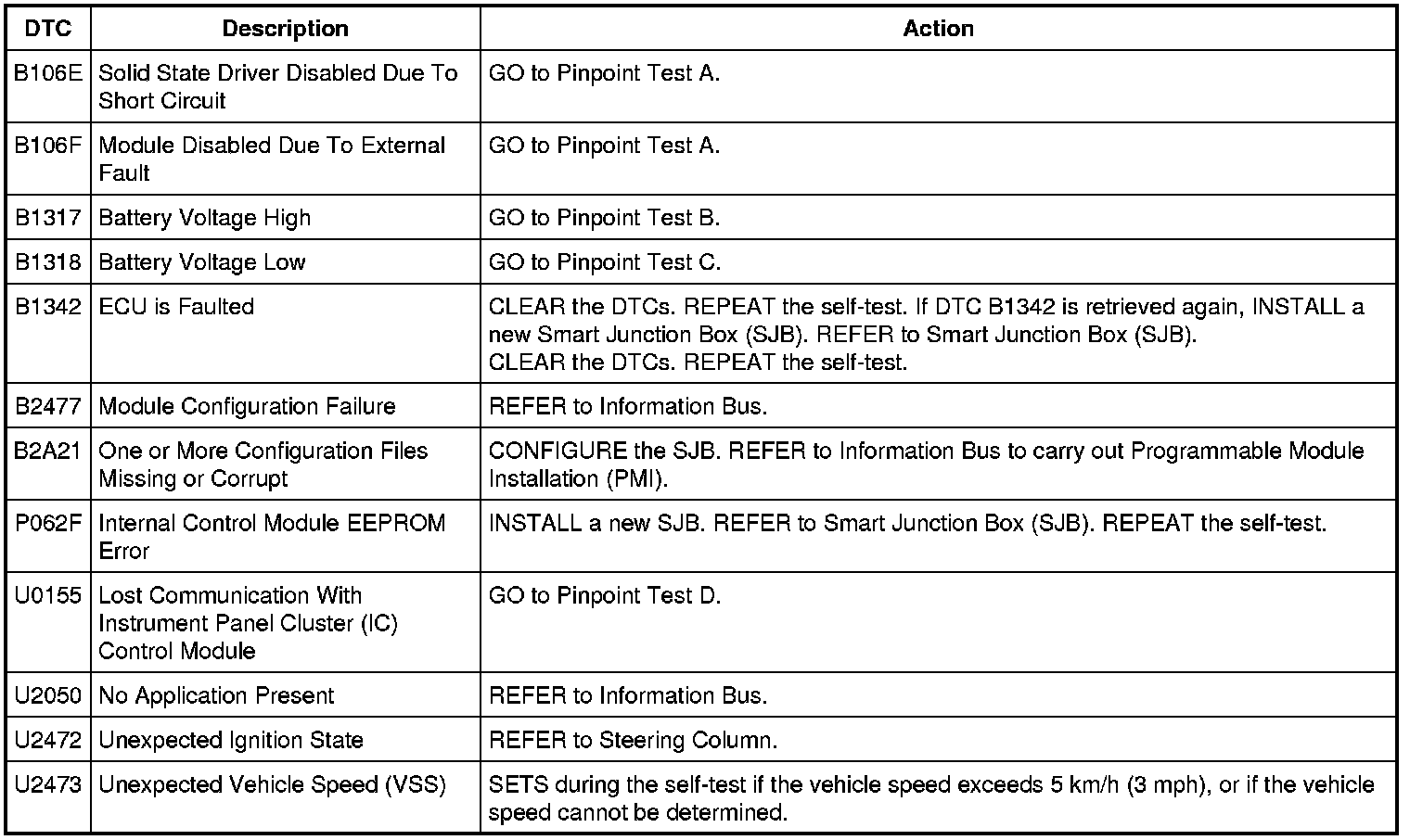

Smart Junction Box (SJB) DTC Chart
