Antenna - Keyless Entry: Service and Repair

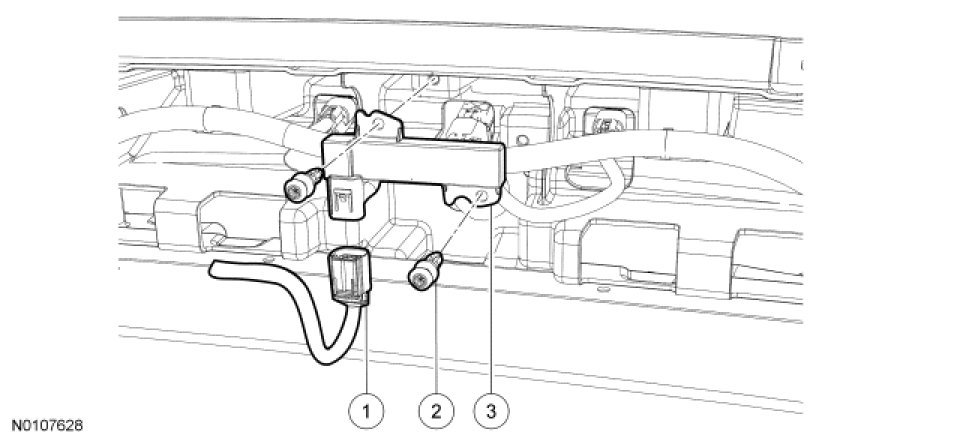

Intelligent Access (IA) Antenna - LiftgateRemoval and Installation 1.
Remove the rear bumper cover. For additional information, refer to Bumper.
2.

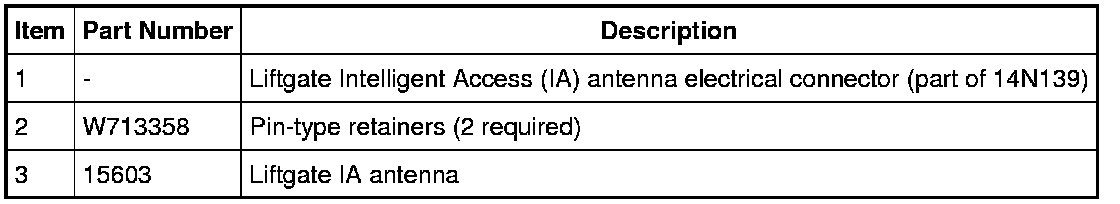

Disconnect the liftgate IA antenna electrical connector.
3.
Remove the 2 pin-type retainers and the liftgate IA antenna.
4.
To install, reverse the removal procedure.
